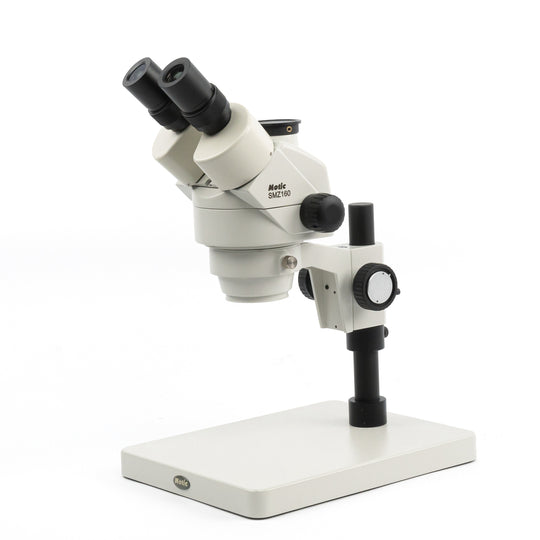

Motic SMZ-160 Stere Microscope

$1,037.00
Model
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 100mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.

Additional contrast methods such as polarization microscopy and darkfield microscopy are easily performed through the addition of optional accessories.

    Specifications

    Model SMZ-160-BLED SMZ-160-BP SMZ-160-TLED SMZ-160-TP
    Observation tube Binocular head Binocular head Trinocular head Trinocular head
    Optical system Greenough Greenough Greenough Greenough
    Base 237x170mm 280x220mm 237x170mm 280x220mm
    Column/Arm Height 205mm, Ø25mm Height 221mm, Ø25mm Height 205mm, Ø25mm Height 221mm, Ø25mm
    Diopter adjustment On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter
    Eyepieces Widefield WF10X/20mm Widefield WF10X/20mm Widefield WF10X/20mm Widefield WF10X/20mm
    Focus mechanism Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment
    Focusing stroke 43mm 43mm 43mm 43mm
    Head holder For Ø 25mm column and Ø76mm head with incident illumination For Ø 25mm column and Ø76mm head For Ø 25mm column and Ø76mm head with incident illumination For Ø 25mm column and Ø76mm head with incident illumination
    Inclination 45° inclined 45° inclined 45° inclined 45° inclined
    Interpupillary distance 55-75mm 55-75mm 55-75mm 55-75mm
    Objectives 0.75X~4.5X 0.75X~4.5X 0.75X~4.5X 0.75X~4.5X
    Objectives system Zoom, ratio 6:1 Zoom, ratio 6:1 Zoom, ratio 6:1 Zoom, ratio 6:1
    Stand type Pole type stand with transmitted illumination Pole type stand without illumination Pole type stand with transmitted illumination Pole type stand with transmitted illumination
    Standard contrast technique Brightfield Brightfield Brightfield Brightfield
    Working distance 100mm 100mm 100mm 100mm
    Transformer Internal Fixed 50:50 Internal Fixed 50:50
    Accessories included Black, white and frosted stage plates and dust cover Black, white and frosted stage plates and dust cover Black, white and frosted stage plates and dust cover Black and white stage plates and dust cover
    Dimensions LxWxH 237x170x398mm 280x220x367mm 237x170x398mm 280x220x367mm
    Weight Net 3.5kg 3.2kg 3.7kg 3.4kg
