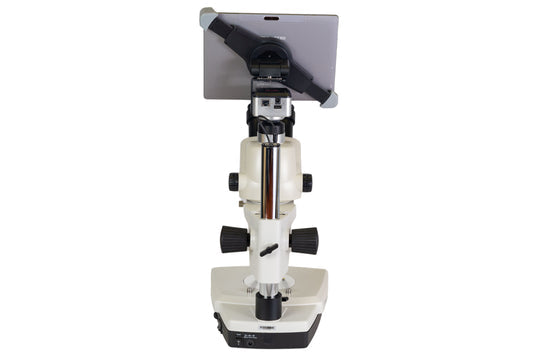

Motic SMZ-171-TLED (Trinocular) + MOTICAM BTI10 Bundle Microscope
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
This digital camera bundle comes with:
- SMZ-171-TLED Trinocular
- Moticam BTI10
- Compatible C-mount adapter
With the new SMZ-171 Stereo Zoom microscope Motic proudly introduces an optically improved addition to its well-established SMZ Stereo series. New materials for ESD compatibility as well as optimized LED illumination options have been added to this series to create a versatile Stereo microscope platform for a wide range of biological and material science applications.
Specifications
| Model | SMZ-171-TLED |
| Observation tube | Trinocular head |
| Optical system | Greenough |
| Base | 303x239mm |
| Column/Arm | Height 232mm, Ø32mm |
| Darkfield | Optional add-on |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 49mm |
| Head holder | For Ø32mm column and Ø76mm head |
| Illumination features | Transmitted light with tilting reflector for oblique illumination |
| Incident illumination | LED 3W with intensity control |
| Inclination | 45° inclined |
| Interpupillary distance | 52-75mm |
| Objectives | 0.75X~5X |
| Objectives system | Zoom, ratio 6.7:1 |
| Polarization | Optional add-on |
| Stand type | Pole type stand with transmitted illumination and cold light input |
| Standard contrast technique | Brightfield |
| Transmitted illumination | LED 3W with reflector and intensity control |
| Working distance | 110mm |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, black/white and frosted stage plates |
| Dimensions LxWxH | 303x239x405mm |
| Weight Net | 6.2kg |
