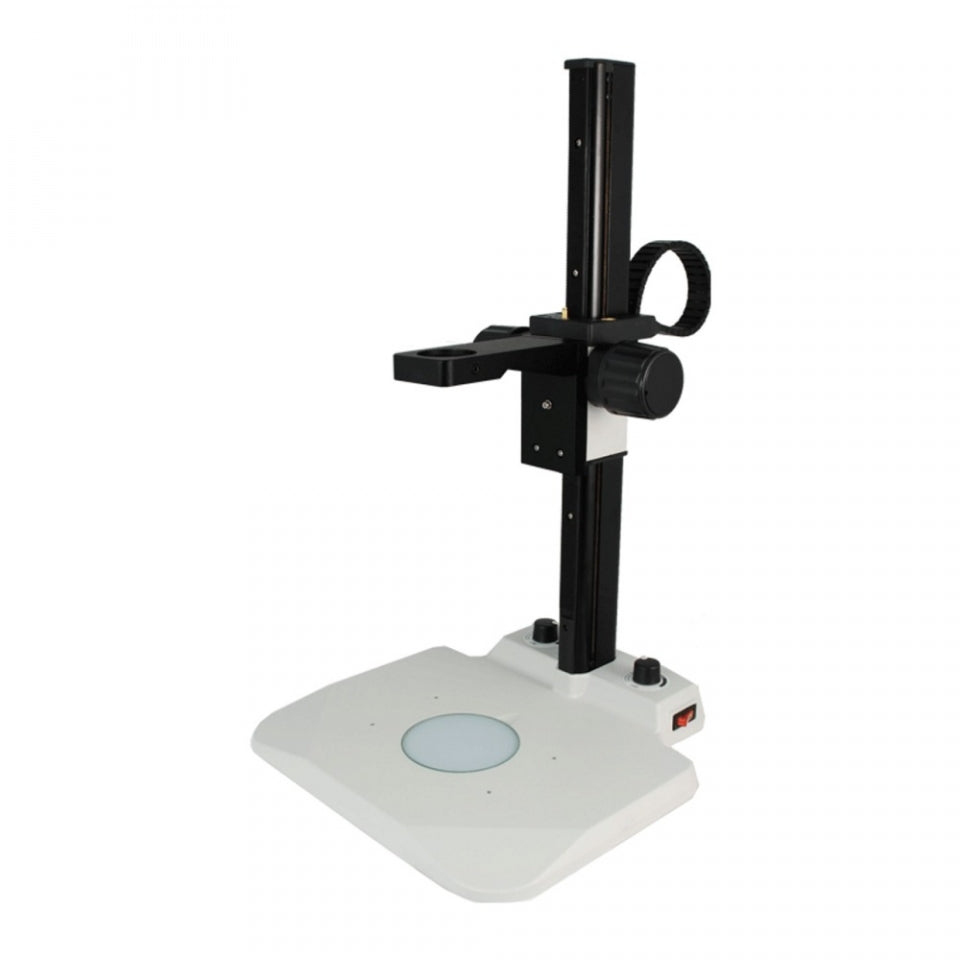

Munday Microscope Track Stand | 39mm Coarse Focus Rack | LED Bottom Light (Dimmable)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Munday Microscope Track Stand with 39mm Coarse Focus Rack and LED Bottom Light. Great stand for most standard Stereo Microscopes.
Part No. ST02031401
Track Stand.
Dia. 39mm Scope Holder.
Track Length: 520mm.
Base Dimensions: 320x316x21mm.
Focus Distance: 385mm.
Black White Plate.
Clear Glass Plate.
Plate Size: Dia. 95x5mm.
Illumination Type: LED Transmitted Light.
Input Voltage: AC 90-240V 50/60Hz.
Output Voltage: DC 6/12/24V.
Power Cord Connector Type: USA 3 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 39mm Scope Holder |
| Track Length | 520mm |
| Base Type | Illumination Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 129mm |
| Base Dimensions | 320x316x21mm |
| Mounting Holes Position | 140x70mm |
| Mounting Hole Dimensions | M4 |
| Focus Mode | Manual |
| Focus Distance | 385mm |
| Coarse Focus Distance per Rotation | 23mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | LED Transmitted Light |
| Bottom Illumination Type | LED |
| Input Voltage | AC 90-240V 50/60Hz |
| Output Voltage | DC 6/12/24V |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 4.75kg (10.47lbs) |
| Dimensions | 320x316x550mm (12.598x12.441x21.654 in. ) |
| 95x5mm Black White Stage Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
| 95x5mm Clear Glass Stage Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 95x5mm |
| Material | Clear Float Glass |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
