Munday Microscope Track Stand | 39mm Fine Focus Rack
Regular price
$587.20
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596

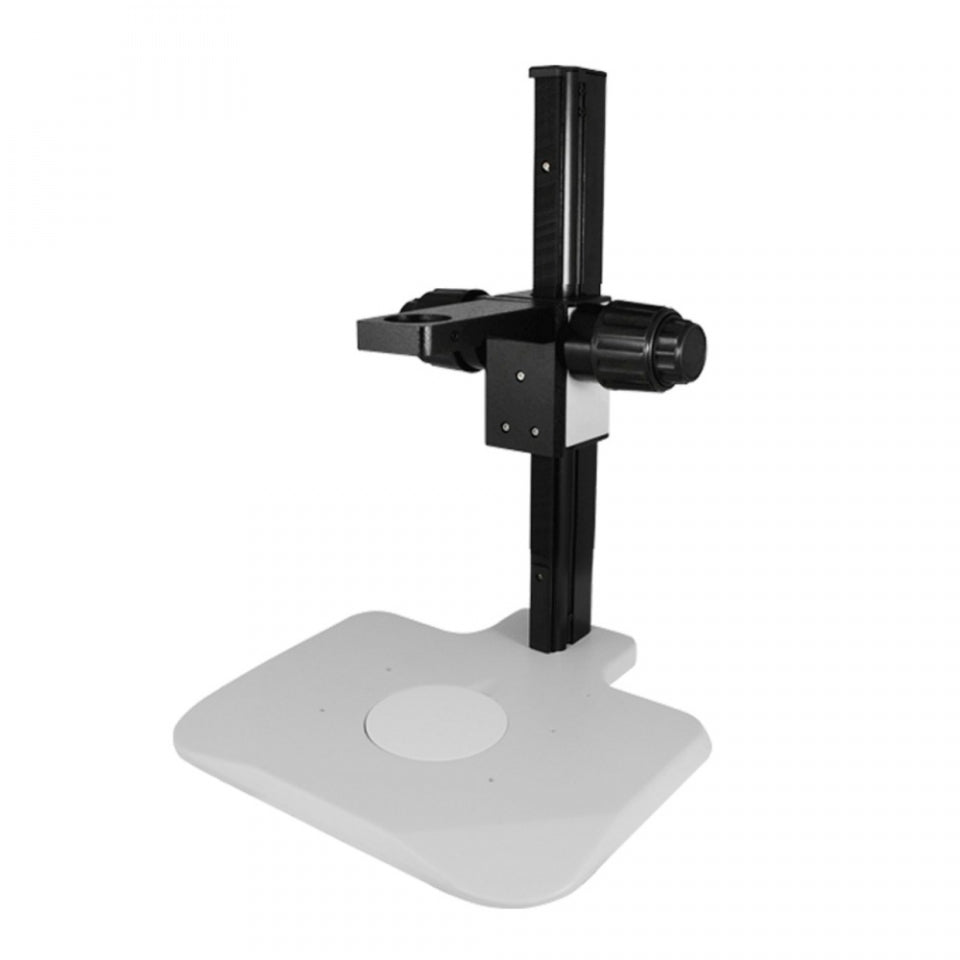

Munday Microscope Track Stand with 39mm Fine Focus Rack. This is a great stand for most standard Stereo Microscopes.
Part No. ST02041101
Track Stand.
Dia. 39mm Scope Holder.
Track Length: 325mm.
Base Dimensions: 320x305x16mm.
Focus Distance: 200mm.
Black White Plate.
Plate Size: Dia. 95x5mm.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 39mm Scope Holder |
| Track Length | 325mm |
| Base Type | Table Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 129mm |
| Base Dimensions | 320x305x16mm |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
| Focus Distance | 200mm |
| Fine Focus Travel Distance | Same as Focus Distance |
| Coarse Focus Distance per Rotation | 23mm |
| Fine Focus Distance per Rotation | 0.56mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 3.45kg (7.61lbs) |
| Dimensions | 320x305x341mm (12.598x12.008x13.425 in. ) |
Microscope Plate
| 95x5mm Black White Stage Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
