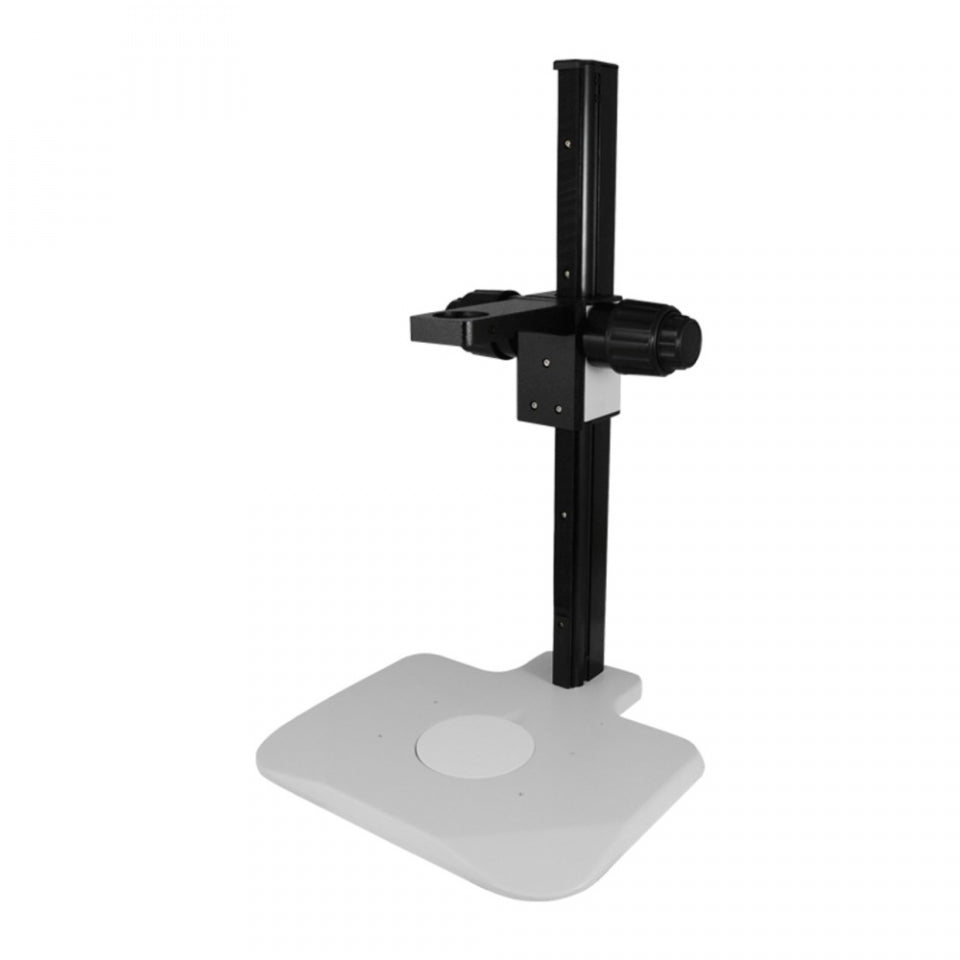

Munday Microscope Track Stand with 39mm Fine Focus Rack and 520mm Track Length
Part No. ST02041301
Track Stand.
Dia. 39mm Scope Holder.
Track Length: 520mm.
Base Dimensions: 320x305x16mm.
Focus Distance: 385mm.
Black White Plate.
Plate Size: Dia. 95x5mm.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 39mm Scope Holder |
| Track Length | 520mm |
| Base Type | Table Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 129mm |
| Base Dimensions | 320x305x16mm |
| Mounting Holes Position | 140x70mm |
| Mounting Hole Dimensions | M4 |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
| Focus Distance | 385mm |
| Fine Focus Travel Distance | Same as Focus Distance |
| Coarse Focus Distance per Rotation | 23mm |
| Fine Focus Distance per Rotation | 0.56mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 3.85kg (8.49lbs) |
| Dimensions | 320x305x536mm (12.598x12.008x21.102 in. ) |
Microscope Plate
| 95x5mm Black White Stage Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
