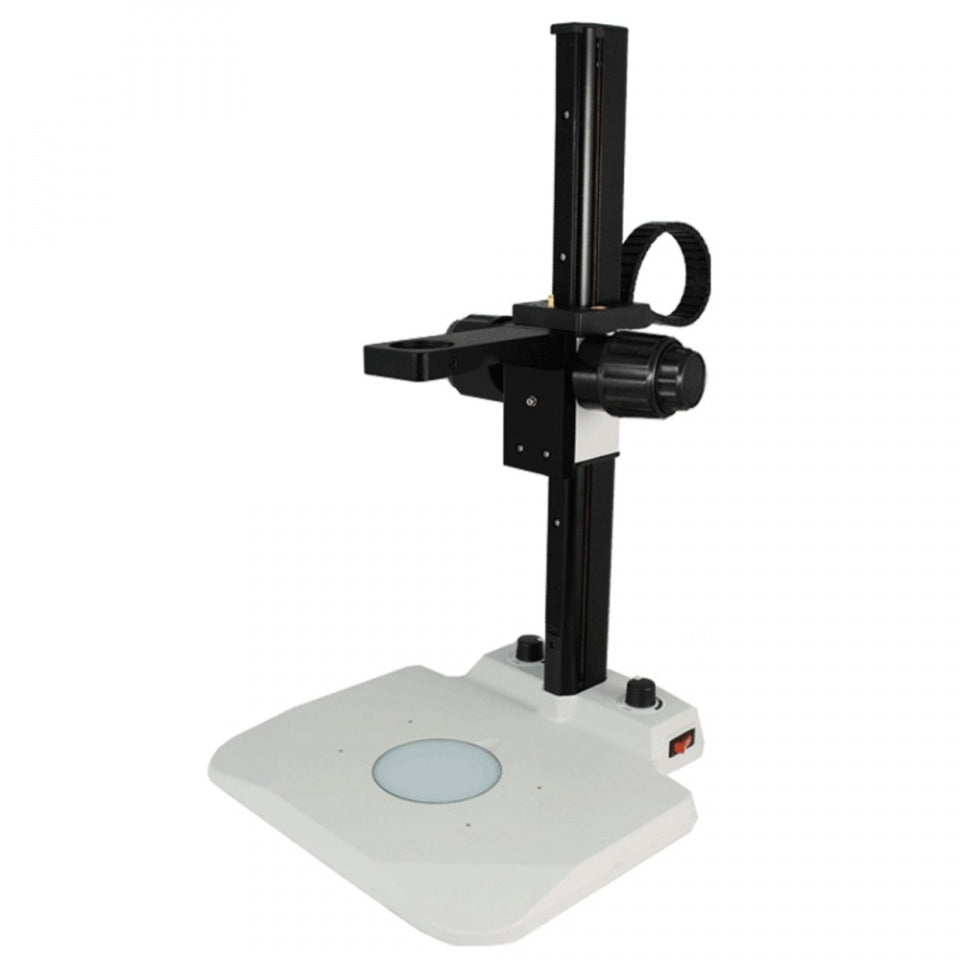

Munday Microscope Track Stand with 39mm Fine Focus Rack and LED Light Base. This is a great stand for most standard Stereo Microscopes.
Part No. ST02041401
Track Stand.
Dia. 39mm Scope Holder.
Track Length: 520mm.
Base Dimensions: 320x316x21mm.
Mounting Holes Position: 140x70mm.
M4.
Coaxial Coarse/Fine Focus.
Focus Distance: 385mm.
Black White Plate.
Clear Glass Plate.
Plate Size: Dia. 95x5mm.
Illumination Type: LED Transmitted Light.
Input Voltage: AC 90-240V 50/60Hz.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 39mm Scope Holder |
| Track Length | 520mm |
| Base Type | Illumination Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 132mm |
| Base Dimensions | 320x316x21mm |
| Mounting Holes Position | 140x70mm |
| Mounting Hole Dimensions | M4 |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
| Focus Distance | 385mm |
| Fine Focus Travel Distance | Same as Focus Distance |
| Coarse Focus Distance per Rotation | 23mm |
| Fine Focus Distance per Rotation | 0.56mm |
| Illumination Type | LED Transmitted Light |
| Bottom Illumination Type | LED |
| Input Voltage | AC 90-240V 50/60Hz |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | Black, White |
| Net Weight | 3.94kg (8.69lbs) |
| Dimensions | 320x316x550mm (12.598x12.441x21.654 in. ) |
Microscope Plate
| 95x5mm Black White Stage Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| 95x5mm Clear Glass Stage Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 95x5mm |
| Material | Clear Float Glass |
| Net Weight | 0.04kg (0.09lbs) |
