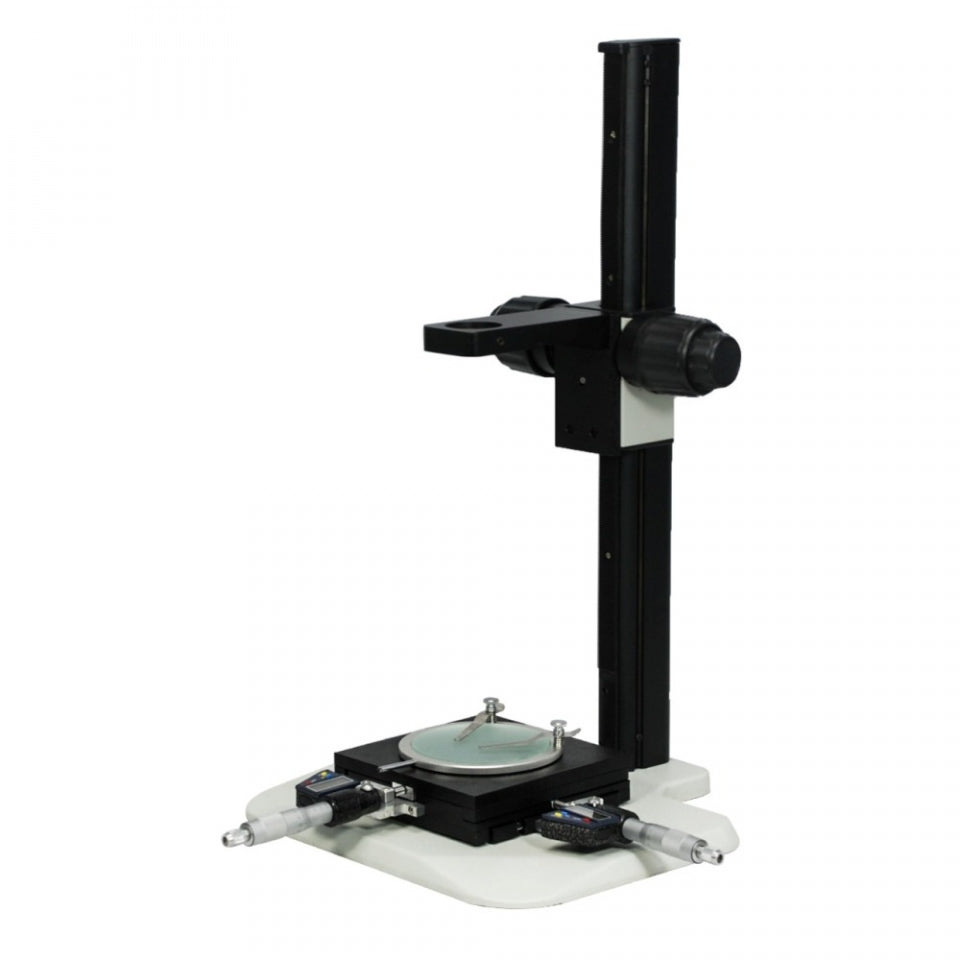

Munday Microscope Track Stand with 39mm Fine Focus Rack that comes with a Measurement Stage.
Part No. ST02041321
Track Stand.
Dia. 39mm Scope Holder.
Track Length: 520mm.
Base Dimensions: 320x305x16mm.
Focus Distance: 385mm.
Black White Plate.
Plate Size: Dia. 95x5mm.
XY Stage Travel Distance: 2x2 in.
XY-Axis Drive Mode: Manual.
Stage Platform Dimensions: 150x150mm.
XY-Axis Measurement Mode: Micrometer.
XY-Axis Resolution: 1μm.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 39mm Scope Holder |
| Track Length | 520mm |
| Base Type | Table Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 120mm |
| Base Dimensions | 320x305x16mm |
| Mounting Holes Position | 140x70mm |
| Mounting Hole Dimensions | M4 |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
| Focus Distance | 385mm |
| Fine Focus Travel Distance | Same as Focus Distance |
| Coarse Focus Distance per Rotation | 23mm |
| Fine Focus Distance per Rotation | 0.56mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 5.65kg (12.46lbs) |
| Dimensions | 320x305x536mm (12.598x12.008x21.102 in. ) |
Microscope Plate
| 95x5mm Black White Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic (ABS) |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
XY Measurement Stage
| 2x2" XY Manual Measurement Stage (with 2 of Digimatic Micrometer Head) | |
| XY Stage Travel Distance | 2x2 in. |
| XY-Axis Drive Mode | Manual |
| Stage Platform Dimensions | 150x150mm |
| Stage Height | 36mm |
| Stage Backlight Window Size | Dia. 90mm |
| XY-Axis Measurement Mode | Micrometer |
| XY-Axis Resolution | 1μm |
| XY-Axis Measurement Accuracy | 0.001mm |
| Micrometer Head Mount Size | Dia. 11mm |
| Stage Bottom Mounting Size | Dia. 95mm |
| Number of Stage Clips | 1 Pair |
| Surface Treatment | Black Oxide Finish |
| Material | Metal |
| Color | Black |
| Net Weight | 2.10kg (4.63lbs) |
Digital Micrometer Head
| 25mm Digimatic Micrometer Head | |
| Digital Micrometer Head Measurement Range | 0-25mm (0-0.984 in. ) |
| Digital Micrometer Head Resolution | 1μm |
| Digital Micrometer Head Accuracy | 0.001mm |
| Digital Micrometer Head Spindle Diameter | Dia. 8mm |
| mm/inch Conversion | Yes |
| Zero-Setting | Yes |
| Data Output | Yes |
| Digital Micrometer Head Power Supply Type | Battery SR44 1pc |
| Surface Treatment | Polished Chrome |
| Material | Metal |
| Color | White |
