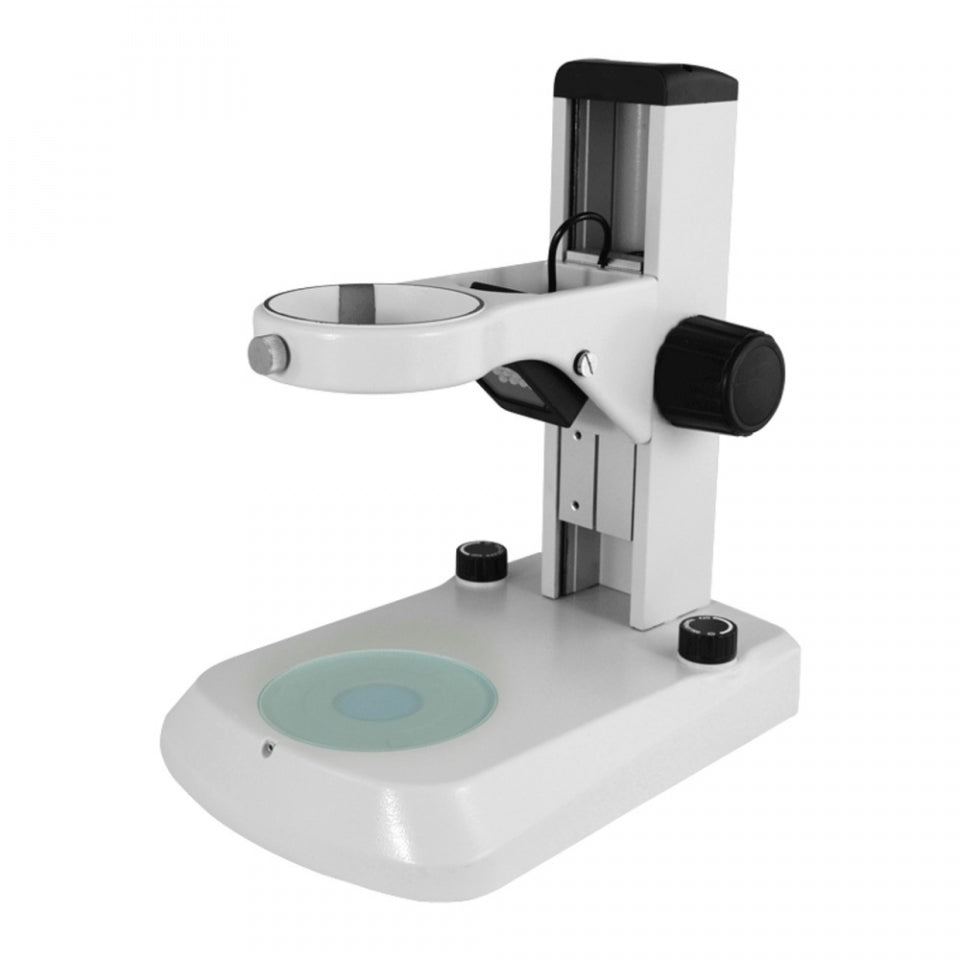

Munday Microscope Track Stand | 76mm Coarse Focus Rack | Bottom LED Light (Dimmable)

Regular price $395.00
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.

Set up a compatible stereo microscope with the Munday 76 mm Coarse Focus Compact LED stand (ST04030101). The stand provides 105 mm of focus travel on a 260 × 175 × 40 mm base.

Specifications

Part number ST04030101
Stand Type Track Stand
Holder Adapter Type Dia. 76mm Scope Holder
Track Length 240mm
Base Type Illumination Base
Base Shape Fan-Shape
Stand Throat Depth 130mm
Base Dimensions 260x175x40mm
Focus Mode Manual
Focus Distance 105mm
Coarse Focus Distance per Rotation 20mm
Focusing Knob Tightness Adjustable Tightness Adjustable
Illumination Type LED Dual Illuminated Light
Top Illumination Oblique Top Light
Top Illumination Type LED
Bottom Illumination Type LED
Input Voltage AC 100-240V 50/60Hz
Power Cord Connector Type USA 3 Pins
Power Cable Length 1.8m
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 3.35kg (7.39lbs)
Dimensions 260x175x275mm (10.236x6.890x10.827 in. )

Component Details

95x5mmMatte Glass Plate
Plate Type Matte Finish Glass Plate
Plate Size Dia. 95x5mm
Material Matte Finish Float Glass
Color Frosted Glass

Compatibility & Ordering

Match your microscope body’s mounting diameter or adapter interface to the listed holder. Confirm focus travel and base clearance for your setup.
