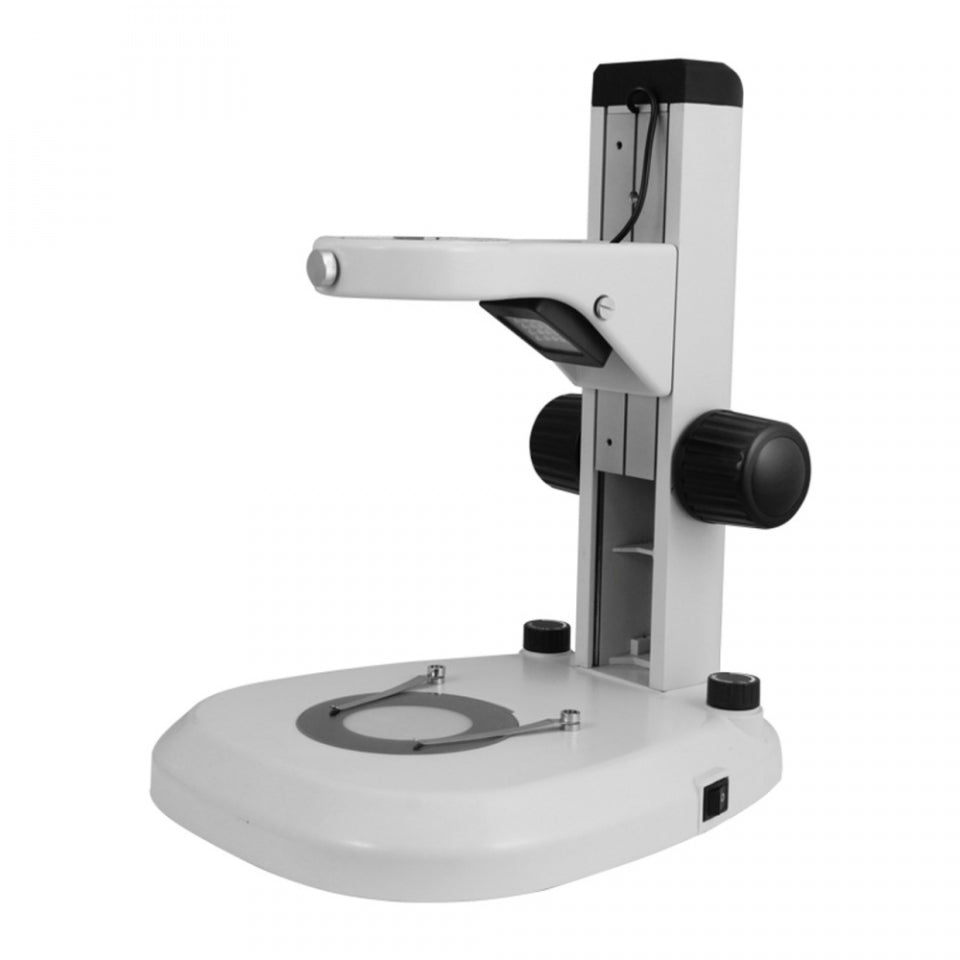

Munday Microscope Track Stand | 76mm Coarse Focus Rack (Dimmable) (Replacement)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.
Set up a compatible stereo microscope with the Munday 76 mm Replacement Dual LED stand. The stand provides 102 mm of focus travel on a 240 × 285 × 39 mm base. Check fit when replacing an existing dual-LED stand.
Specifications
| Stand Type | Track Stand |
|---|---|
| Holder Adapter Type | Dia. 76mm Scope Holder |
| Track Length | 280mm |
| Base Type | Illumination Base |
| Base Shape | Fan-Shape |
| Stand Throat Depth | 130mm |
| Base Dimensions | 240x285x39mm |
| Focus Mode | Manual |
| Focus Distance | 102mm |
| Coarse Focus Distance per Rotation | 40mm (1.575 in. ) |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | LED Dual Illuminated Light |
| Top Illumination | Oblique Top Light |
| Top Illumination Type | LED |
| Bottom Illumination Type | LED |
| Input Voltage | AC 100-240V 50/60Hz |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 3.65kg (8.05lbs) |
| Dimensions | 240x285x345mm (9.449x11.22x13.583 in. ) |
Component Details
| 100x2.5mm Black Plate | |
| Plate Type | Black Plate |
|---|---|
| Plate Size | Dia. 100x2.5mm |
| Material | Plastic (ABS) |
| Color | Black |
| Net Weight | 0.02kg (0.04lbs) |
| Applied Field | ForST0403, ST0404 Series Track Stand |
| 100x2.5mm White Plate | |
| Plate Type | White Plate |
| Plate Size | Dia. 100x2.5mm |
| Material | Plastic (ABS) |
| Color | White |
| Net Weight | 0.02kg (0.04lbs) |
| Applied Field | ForST0403, ST0404 Series Track Stand |
| 100x2.5mm Clear Glass Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 100x2.5mm |
| Material | Clear Float Glass |
| Net Weight | 0.06kg (0.13lbs) |
| Applied Field | ForST0403, ST0404 Series Track Stand |
Compatibility & Ordering
Match your microscope body’s mounting diameter or adapter interface to the listed holder. Confirm focus travel and base clearance for your setup.
