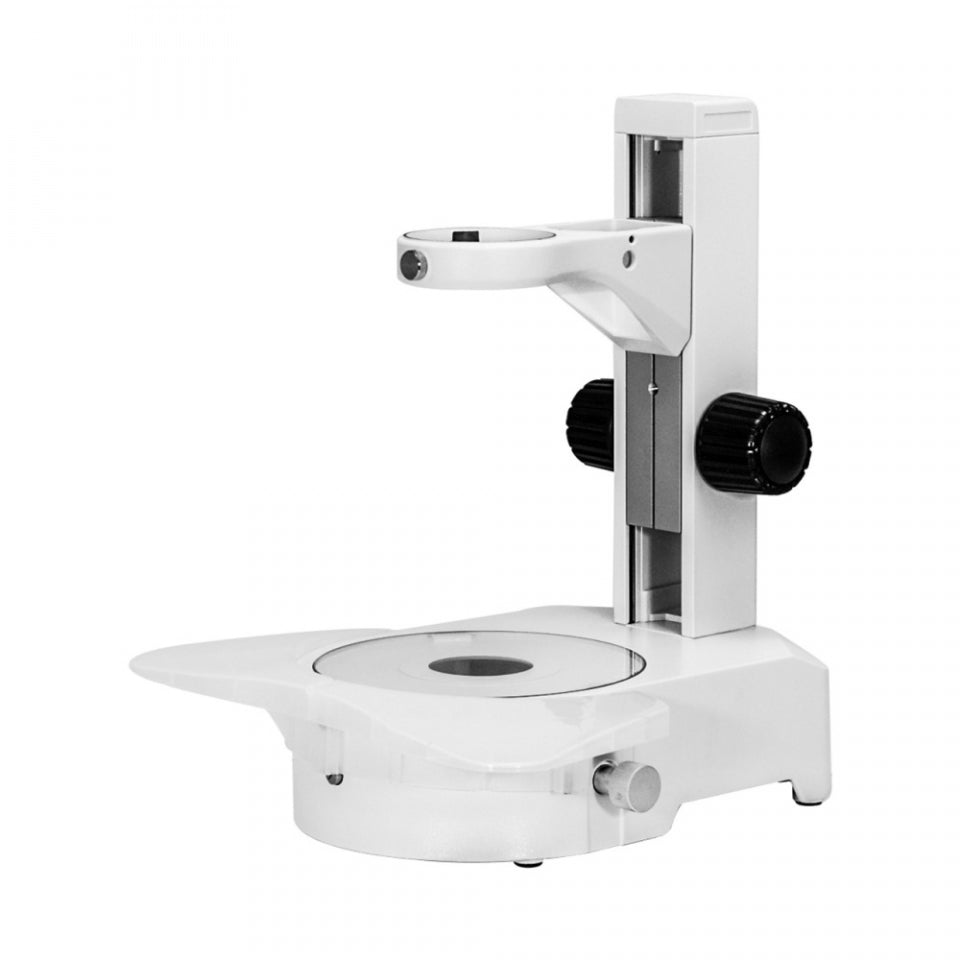

Munday Microscope Track Stand with a 76mm Coarse Focus Rack and a Halogen Light Base. This is a great microscope stand for a general stereo microscope. It also is excellent for embryo transfer and IVF applications
Part No. ST17031301
Track Stand.
Dia. 76mm Scope Holder.
Track Length: 280mm.
Base Dimensions: 280x200x90mm.
Focus Distance: 105mm.
Clear Glass Plate.
Plate Size: Dia. 180x6mm.
Illumination Type: Halogen Transmitted Light.
Input Voltage: AC 100-240V 50/60Hz.
Output Voltage: DC 6V.
Power Cord Connector Type: CN 3 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 76mm Scope Holder |
| Track Length | 280mm |
| Base Type | Illumination Base |
| Base Shape | U-shape |
| Stand Throat Depth | 120mm |
| Base Dimensions | 280x200x90mm |
| Focus Mode | Manual |
| Focus Distance | 105mm |
| Coarse Focus Distance per Rotation | 22mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | Halogen Transmitted Light |
| Bottom Illumination Type | Halogen Light |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 6V |
| Power Cord Connector Type | CN 3 Pins |
| Power Cable Length | 1.5m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 5.55kg (12.24lbs) |
| Dimensions | 280x200x390mm (11.024x7.874x15.354 in. ) |
| 180x6mm Clear Glass Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 180x6mm |
| Material | Clear Float Glass |
| Net Weight | 0.36kg (0.80lbs) |
| Applied Field | Nikon SMZ1000 Stereo Microscope (The stand/base is the C-DSS115 model.) |
