Munday Microscope Track Stand | 76mm Coarse Focus Rack | LED Bottom Light (Dimmable)
Regular price
$958.40
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596

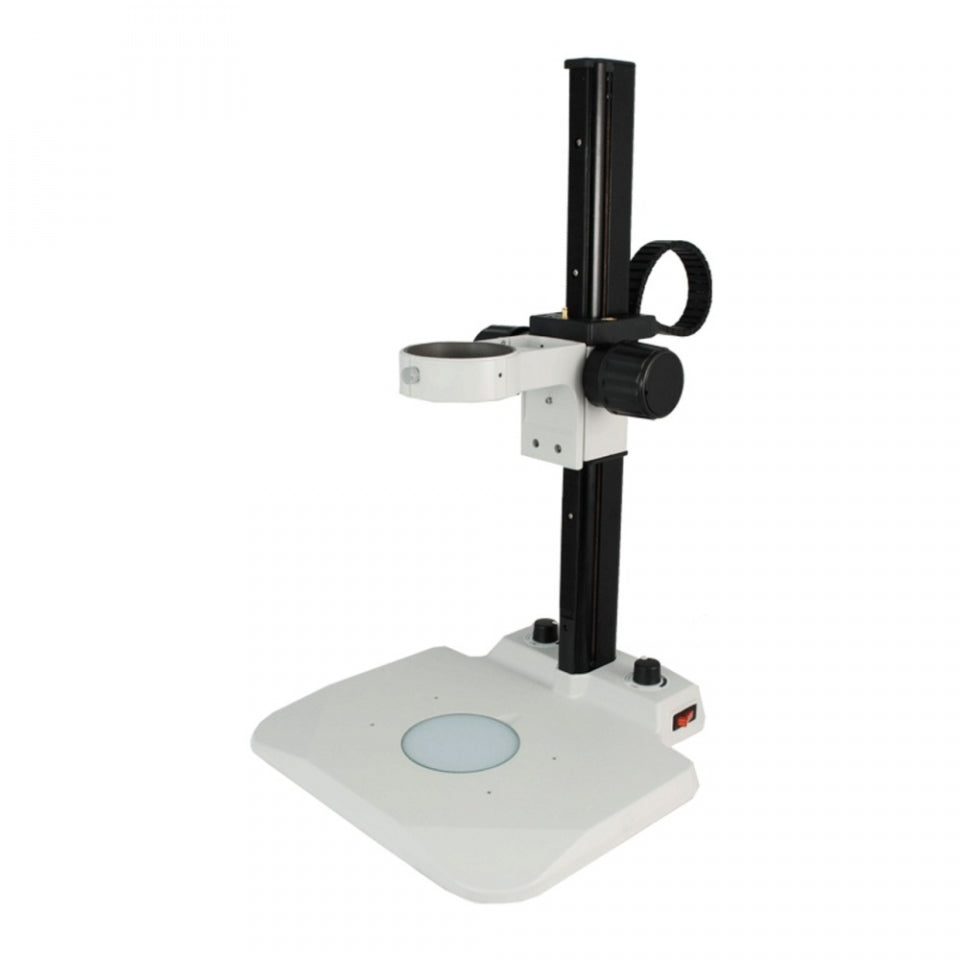

Munday Microscope Track Stand measuring 76mm Coarse Focus Rack that comes with an LED Bottom Light.
Part No. ST02031402
Track Stand.
Dia. 76mm Scope Holder.
Track Length: 520mm.
Base Dimensions: 320x316x21mm.
Focus Distance: 385mm.
Black White Plate.
Clear Glass Plate.
Plate Size: Dia. 95x5mm.
Illumination Type: LED Transmitted Light.
Input Voltage: AC 90-240V 50/60Hz.
Output Voltage: DC 6/12/24V.
Power Cord Connector Type: USA 3 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 76mm Scope Holder |
| Track Length | 520mm |
| Base Type | Illumination Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 120mm |
| Base Dimensions | 320x316x21mm |
| Mounting Holes Position | 140x70mm |
| Mounting Hole Dimensions | M4 |
| Focus Mode | Manual |
| Focus Distance | 385mm |
| Coarse Focus Distance per Rotation | 23mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | LED Transmitted Light |
| Bottom Illumination Type | LED |
| Input Voltage | AC 90-240V 50/60Hz |
| Output Voltage | DC 6/12/24V |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 4.65kg (10.25lbs) |
| Dimensions | 320x316x550mm (12.598x12.441x21.654 in. ) |
Microscope Plate
| 95x5mm Black White Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic (ABS) |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
| 95x5mm Clear Glass Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 95x5mm |
| Material | Clear Float Glass |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
