Munday Microscope Track Stand | 76mm Coarse Focus Rack | LED Ring Light (Dimmable)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596

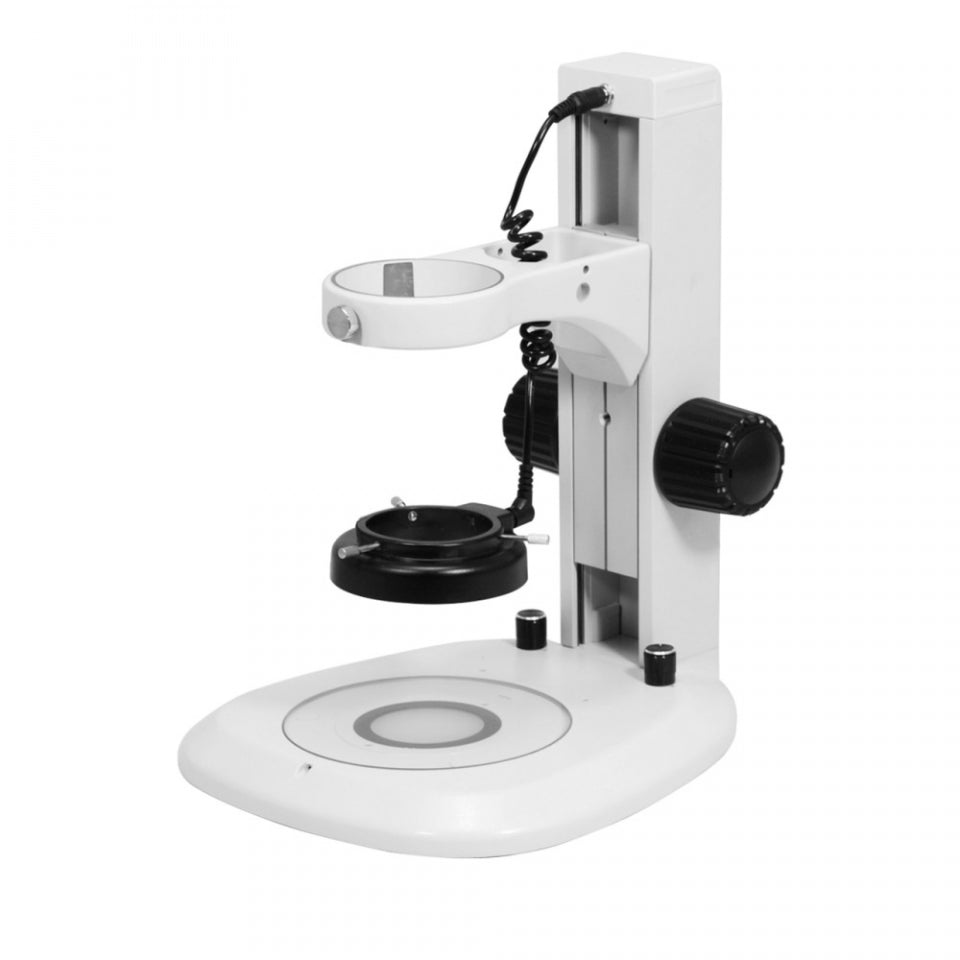

Munday Microscope Track Stand with a Coarse Focus Rack measuring 76mm and an LED Light.
Part No. ST17031201
Track Stand.
Dia. 76mm Scope Holder.
Track Length: 280mm.
Base Dimensions: 280x240x25mm.
Focus Distance: 105mm.
Clear Glass Plate.
Plate Size: Dia. 140x6mm.
Illumination Type: LED Transmitted Light.
Top Illumination: Ring Light.
Input Voltage: AC 100-240V 50/60Hz.
Output Voltage: DC 12V.
Power Cord Connector Type: USA 2 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 76mm Scope Holder |
| Track Length | 280mm |
| Base Type | Illumination Base |
| Base Shape | Fan-Shape |
| Stand Throat Depth | 120mm |
| Base Dimensions | 280x240x25mm |
| Focus Mode | Manual |
| Focus Distance | 105mm |
| Coarse Focus Distance per Rotation | 22mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Top Illumination | Ring Light |
| Top Illumination Type | LED |
| Bottom Illumination Type | LED |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12V |
| Power Cord Connector Type | USA 2 Pins |
| Power Cable Length | 1.1m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 3.30kg (7.28lbs) |
| Dimensions | 280x240x325mm (11.024x9.449x12.795 in. ) |
| 140x6mm Clear Glass Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 140x6mm |
| Material | Clear Float Glass |
| Net Weight | 0.12kg (0.26lbs) |
| Applied Field | For ST1703 Series Track Stand |
