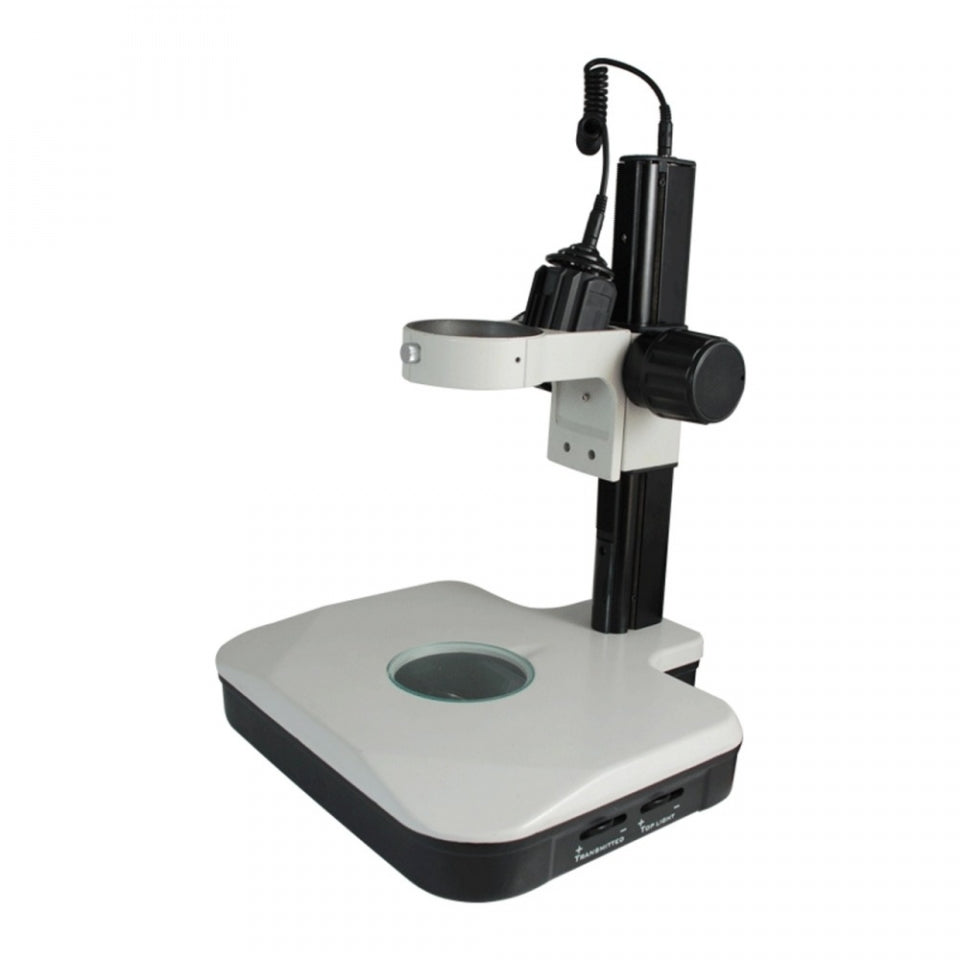

Munday Microscope Track Stand | 76mm Coarse Focus Rack | Top and Bottom Halogen Light

Regular price $726.40
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at

Have questions or need Faster Shipping? Call 919-775-5596

Munday Microscope Track Stand measuring 76mm Coarse Focus Rack with a Top and Bottom Halogen Light. Excellent stand that fits most standard stereo microscopes.

Part No. ST02031222

Track Stand.
Dia. 76mm Scope Holder.
Track Length: 325mm.
Base Dimensions: 320x305x60mm.
Focus Distance: 200mm.
Black White Plate.
Clear Glass Plate.
Plate Size: Dia. 95x5mm.
Illumination Type: HH Dual Illuminated Light.
Top Illumination: Oblique Top Light.
Output Power: 30W.
Input Voltage: AC 90-265V 50/60Hz.
Output Voltage: DC 12V.
Power Cord Connector Type: USA 3 Pins.


Stand Type Track Stand
Holder Adapter Type Dia. 76mm Scope Holder
Track Length 325mm
Base Type Illumination Base
Base Shape Rectangle
Stand Throat Depth 124mm
Base Dimensions 320x305x60mm
Focus Mode Manual
Focus Distance 200mm
Coarse Focus Distance per Rotation 23mm
Focusing Knob Tightness Adjustable Tightness Adjustable
Illumination Type HH Dual Illuminated Light
Top Illumination Oblique Top Light
Top Illumination Type Halogen Light
Bottom Illumination Type Halogen Light
Output Power 30W
Input Voltage AC 90-265V 50/60Hz
Output Voltage DC 12V
Power Cord Connector Type USA 3 Pins
Power Cable Length 1.8m
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 5.70kg (12.57lbs)
Dimensions 320x305x385mm (12.598x12.008x15.157 in. )
Microscope Plate
95x5mm Black White Stage Plate
Plate Type Black White Plate
Plate Size Dia. 95x5mm
Material Plastic
Color Black, White
Net Weight 0.04kg (0.09lbs)
Applied Field For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand
Illumination Base
HH Illumination Base
Plate Type Clear Glass Plate
Plate Material Clear Float Glass
Plate Size Dia. 95x5mm
Illumination Base Type HH Dual Illuminated Base
Illumination Base Dimensions 330x290x45mm (12.992x11.417x1.772 in. )
Mirror Type Double Sides Plane/Concave Mirror
Mirror Rotatable Range 360°
Mirror Diameter Dia. 50mm
Bulb Rated Power 15W
Bulb Rated Voltage DC 12V
Bulb Shape Umbrella Shape
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 2.59kg (5.71lbs)
Applied Field For ST0201 and ST0203 Series Microscope Stand
Iris Diagram
HH Illumination Base
Aperture Diaphragm Fixed Aperture Diaphragm
Aperture Diaphragm Mounting Position Vertical Illuminator
Aperture Diaphragm Outer Diameter Dia. 91mm
