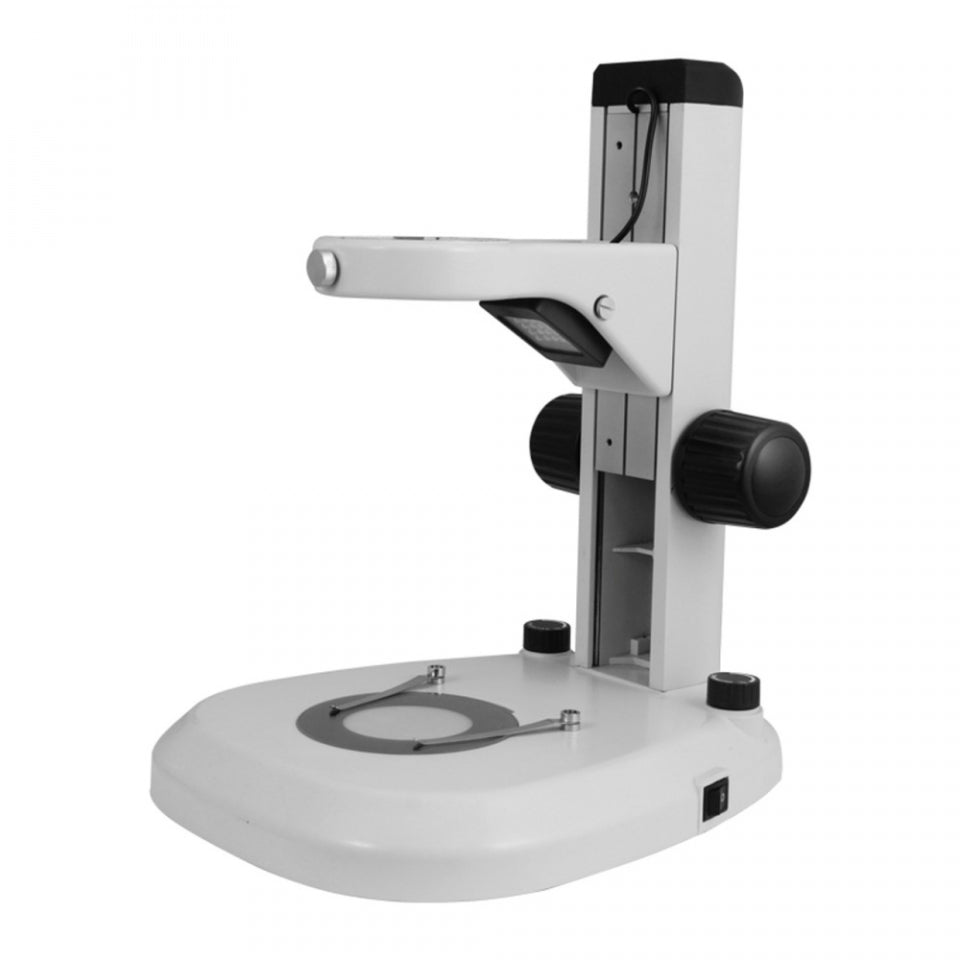

Munday Microscope Track Stand | 76mm Coarse Focus Rack | Top and Bottom LED (Dimmable)

Regular price $475.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

Munday Microscope Track Stand with a 76mm Coarse Focus Rack and a Top and Bottom LED. Great microscope base that fits most standard stereo scopes.

Part No. ST04030401

Track Stand.
Dia. 76mm Scope Holder.
Track Length: 280mm.
Base Dimensions: 240x285x39mm.
Focus Distance: 102mm.
White Plate. Black Plate.
Clear Glass Plate.
Plate Size: Dia. 100x2.5mm.
Illumination Type: LED Dual Illuminated Light .
Top Illumination: Oblique Top Light.
Input Voltage: AC 100-240V 50/60Hz.
Power Cord Connector Type: USA 3 Pins.

Specifications

Stand Type Track Stand
Holder Adapter Type Dia. 76mm Scope Holder
Track Length 280mm
Base Type Illumination Base
Base Shape Fan-Shape
Stand Throat Depth 130mm
Base Dimensions 240x285x39mm
Focus Mode Manual
Focus Distance 102mm
Coarse Focus Distance per Rotation 40mm (1.575 in. )
Focusing Knob Tightness Adjustable Tightness Adjustable
Illumination Type LED Dual Illuminated Light
Top Illumination Oblique Top Light
Top Illumination Type LED
Bottom Illumination Type LED
Input Voltage AC 100-240V 50/60Hz
Power Cord Connector Type USA 3 Pins
Power Cable Length 1.8m
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 3.65kg (8.05lbs)
Dimensions 240x285x345mm (9.449x11.22x13.583 in. )
Microscope Plate
100x2.5mm Black Plate
Plate Type Black Plate
Plate Size Dia. 100x2.5mm
Material Plastic (ABS)
Color Black
Net Weight 0.02kg (0.04lbs)
Applied Field ForST0403, ST0404 Series Track Stand
100x2.5mm White Plate
Plate Type White Plate
Plate Size Dia. 100x2.5mm
Material Plastic (ABS)
Color White
Net Weight 0.02kg (0.04lbs)
Applied Field ForST0403, ST0404 Series Track Stand
100x2.5mm Clear Glass Plate
Plate Type Clear Glass Plate
Plate Size Dia. 100x2.5mm
Material Clear Float Glass
Net Weight 0.06kg (0.13lbs)
Applied Field ForST0403, ST0404 Series Track Stand
