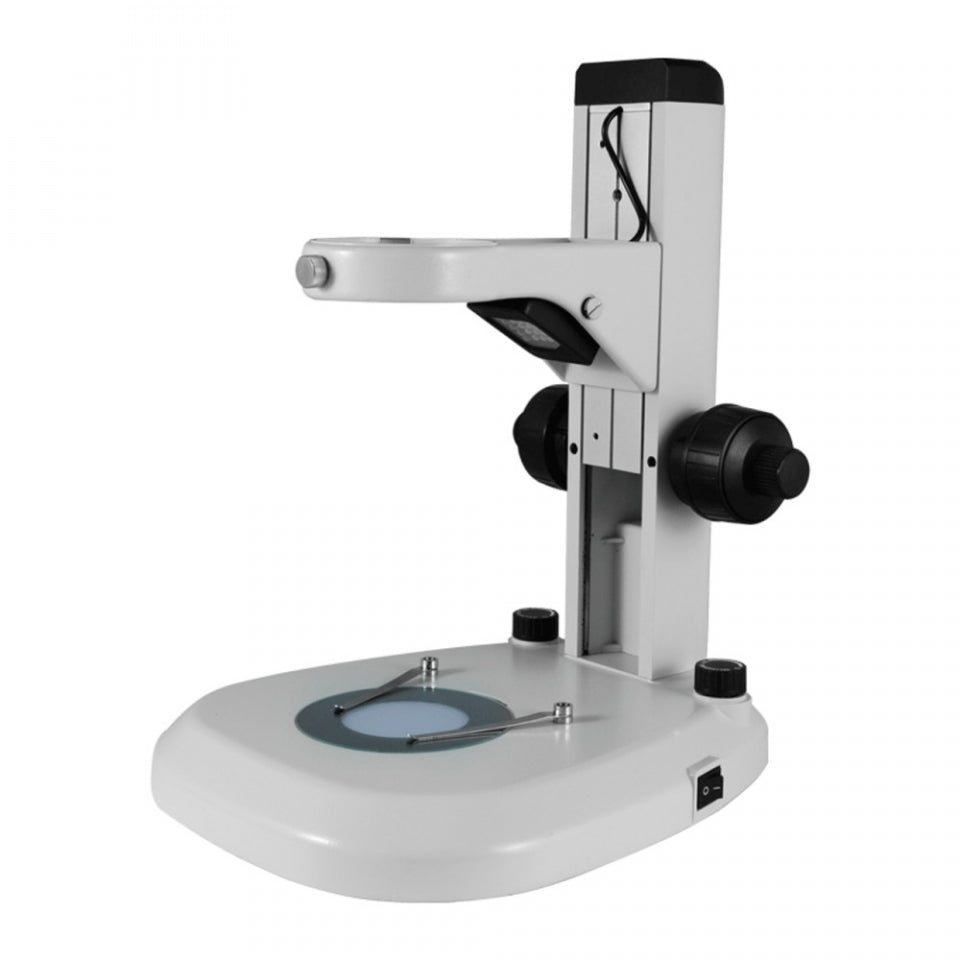

Munday Microscope Track Stand with a 76mm Fine Focus Rack and Top to Bottom LED.
Part No. ST04040401
Track Stand.
Dia. 76mm Scope Holder.
Track Length: 280mm.
Base Dimensions: 240x285x39mm.
Focus Distance: 102mm.
White Plate.
Black Plate.
Clear Glass Plate.
Plate Size: Dia. 100x2.5mm.
Illumination Type: LED Dual Illuminated Light.
Top Illumination: Oblique Top Light.
Input Voltage: AC 100-240V 50/60Hz.
Power Cord Connector Type: USA 3 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 76mm Scope Holder |
| Track Length | 280mm |
| Base Type | Illumination Base |
| Base Shape | Fan-Shape |
| Stand Throat Depth | 130mm |
| Base Dimensions | 240x285x39mm |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
| Focus Distance | 102mm |
| Fine Focus Travel Distance | Same as Focus Distance |
| Coarse Focus Distance per Rotation | 40mm (1.575 in. ) |
| Fine Focus Distance per Rotation | 1.5mm |
| Fine Focus Minimum Scale | 150μm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | LED Dual Illuminated Light |
| Top Illumination | Oblique Top Light |
| Top Illumination Type | LED |
| Bottom Illumination Type | LED |
| Input Voltage | AC 100-240V 50/60Hz |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 3.75kg (8.27lbs) |
| Dimensions | 240x285x345mm (9.449x11.22x13.583 in. ) |
| 100x2.5mm Black Stage Plate | |
| Plate Type | Black Plate |
| Plate Size | Dia. 100x2.5mm |
| Material | Plastic |
| Color | Black |
| Net Weight | 0.02kg (0.04lbs) |
| Applied Field | ForST0403, ST0404 Series Track Stand |
| 100x2.5mm White Stage Plate | |
| Plate Type | White Plate |
| Plate Size | Dia. 100x2.5mm |
| Material | Plastic |
| Color | White |
| Net Weight | 0.02kg (0.04lbs) |
| Applied Field | ForST0403, ST0404 Series Track Stand |
| 100x2.5mm Clear Glass Stage Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 100x2.5mm |
| Material | Clear Float Glass |
| Net Weight | 0.06kg (0.13lbs) |
| Applied Field | ForST0403, ST0404 Series Track Stand |
