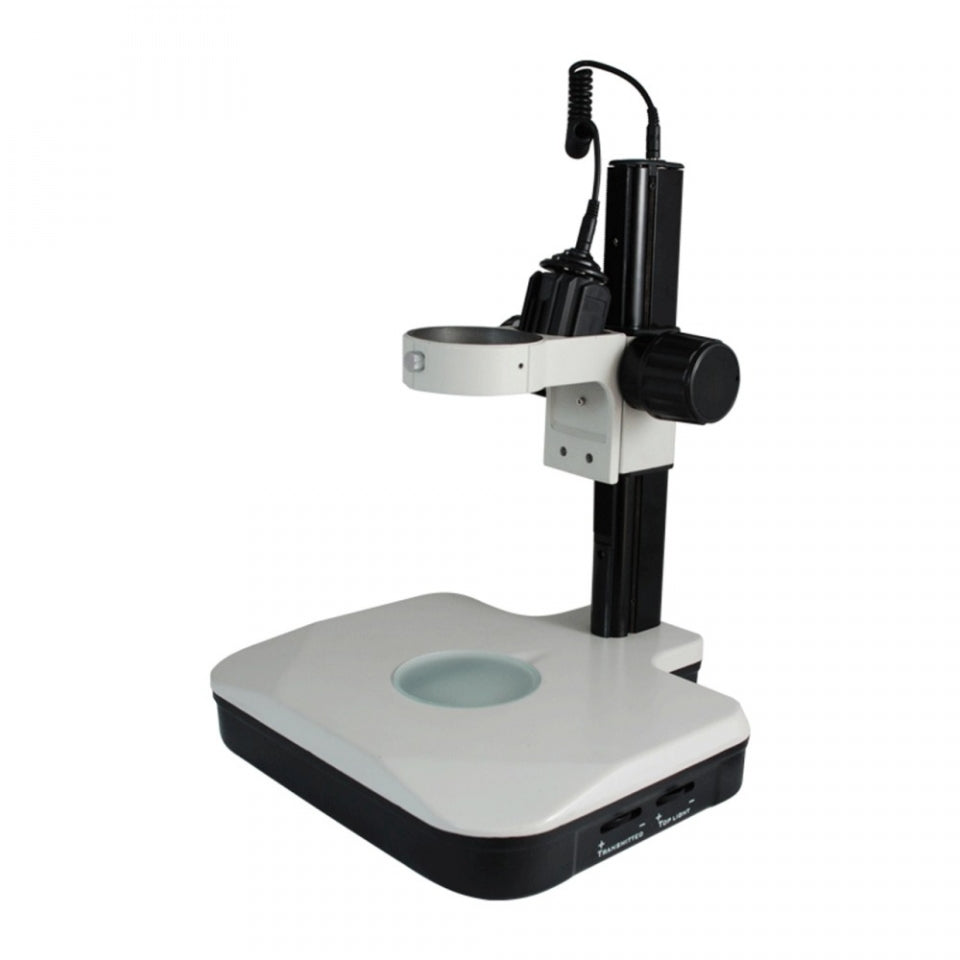

Munday Microscope Track Stand with a Coarse Focus Rack measuring 83mm with Halogen and Fluorescent. Great microscope stand for most standand stereo microscopes.
Part No. ST02031203
Track Stand.
Dia. 83mm Scope Holder .
Track Length: 325mm.
Base Dimensions: 320x305x60mm.
Focus Distance: 200mm.
Illumination Type: HF Dual Illuminated Light.
Top Illumination: Oblique Top Light.
24W.
Input Voltage: AC 90-265V 50/60Hz.
Output Voltage: DC 12V.
Power Cord Connector Type: USA 3 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 83mm Scope Holder |
| Track Length | 325mm |
| Base Type | Illumination Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 124mm |
| Base Dimensions | 320x305x60mm |
| Focus Mode | Manual |
| Focus Distance | 200mm |
| Coarse Focus Distance per Rotation | 23mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | HF Dual Illuminated Light |
| Top Illumination | Oblique Top Light |
| Top Illumination Type | Halogen Light |
| Bottom Illumination Type | Fluorescent Light |
| Output Power | 24W |
| Input Voltage | AC 90-265V 50/60Hz |
| Output Voltage | DC 12V |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 5.40kg (11.90lbs) |
| Dimensions | 320x305x385mm (12.598x12.008x15.157 in. ) |
| 95x5mm Black White Stage Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
| 95x5mm Matte Glass Stage Plate | |
| Plate Type | Matte Finish Glass Plate |
| Plate Size | Dia. 95x5mm |
| Material | Matte Finish Float Glass |
| Applied Field | For ST0201, ST0501, ST1901, ST0801, ST0802 Series Post Stand. ST0203, ST0204 ST0403 Series Track Stand |
| Transmitted Illumination Iris | |
| Aperture Diaphragm | Fixed Aperture Diaphragm |
| Aperture Diaphragm Mounting Position | Vertical Illuminator |
| Aperture Diaphragm Outer Diameter | Dia. 91mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Applied Field | For SA0216 Series Illumination Base |
| 9W Fluorescent Bulb | |
| Bulb Rated Power | 9W |
| Bulb Shape | Double U Shape |
| Material | Glass |
| Net Weight | 0.02kg (0.04lbs) |
| Applied Field | For SA02161103 Illumination Base |
| 6V 15W Halogen Bulb | |
| Bulb Rated Power | 15W |
| Bulb Rated Voltage | DC 12V |
| Bulb Shape | Umbrella Shape |
| Bulb Mounting Mode | Bi-Pin |
| Light Bulb Pin Standard | G4 (4mm) |
| Material | Glass |
| Applied Field | For SA02161102, ML05321131, ML05321132 Illumination Base |
