Munday Microscope Track Stand | 83mm Coarse Focus Rack | Top and Bottom Halogen Light
Regular price
$775.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596

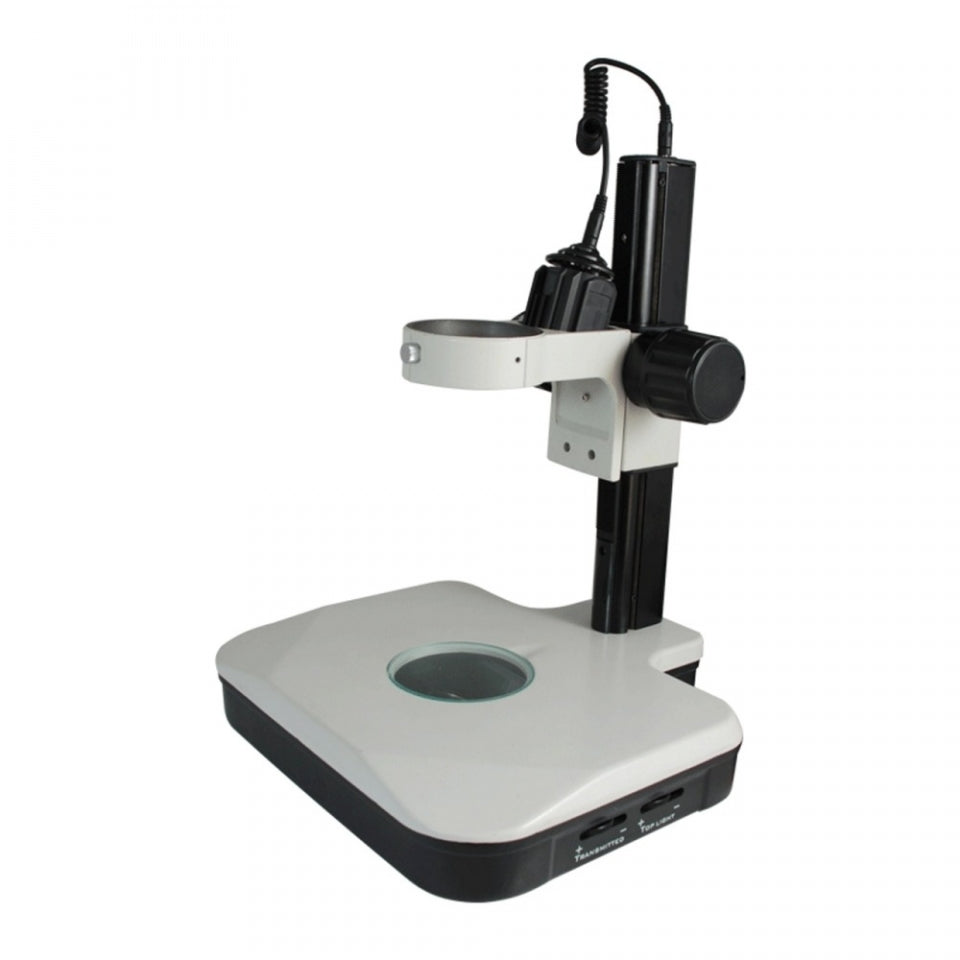

Munday Microscope Track Stand with an 83mm Coarse Focus Rack. This microscope stand is great for most stereo microscopes.
Part No. ST02031223
Dia. 83mm Scope Holder.
Track Length: 325mm.
Base Dimensions: 320x305x60mm.
Focus Distance: 200mm.
30W.
Output Voltage: DC 12V.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 83mm Scope Holder |
| Track Length | 325mm |
| Base Type | Illumination Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 124mm |
| Base Dimensions | 320x305x60mm |
| Focus Mode | Manual |
| Focus Distance | 200mm |
| Coarse Focus Distance per Rotation | 23mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | HH Dual Illuminated Light |
| Top Illumination | Oblique Top Light |
| Top Illumination Type | Halogen Light |
| Bottom Illumination Type | Halogen Light |
| Output Power | 30W |
| Input Voltage | AC 90-265V 50/60Hz |
| Output Voltage | DC 12V |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 5.70kg (12.57lbs) |
| Dimensions | 320x305x385mm (12.598x12.008x15.157 in. ) |
Microscope Plate
| 95x5mm Black White Stage Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| 95x5mm Clear Glass Stage Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 95x5mm |
| Material | Clear Float Glass |
| Net Weight | 0.04kg (0.09lbs) |
Iris Diagram
| Transmitted Illumination Iris | |
| Aperture Diaphragm | Fixed Aperture Diaphragm |
| Aperture Diaphragm Mounting Position | Vertical Illuminator |
| Aperture Diaphragm Outer Diameter | Dia. 91mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Applied Field | For SA0216 Series Illumination Base |
