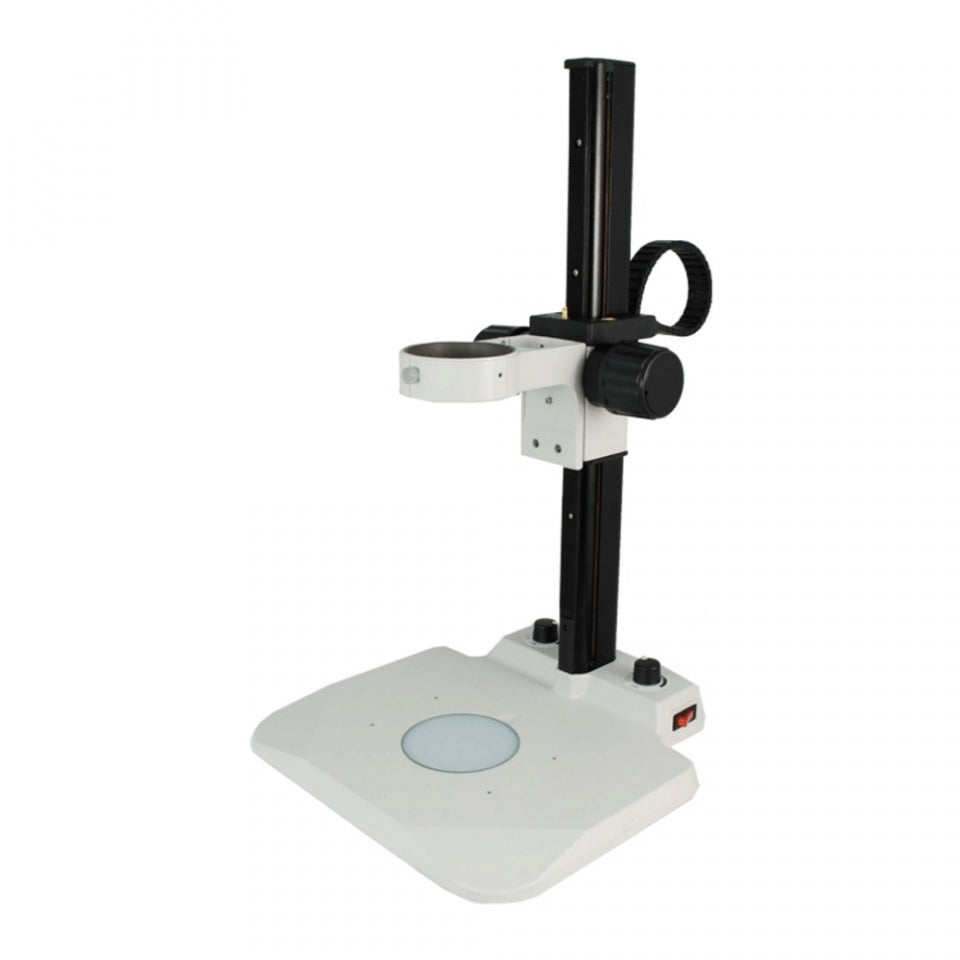

Munday Microscope Track Stand with an 85mm Coarse Focus Rack and LED Bottom Light. This is a great microscope stand for standard Stereo Microscopes.
Part No. ST02031404
Track Stand.
Dia. 39mm Scope Holder.
Track Length: 520mm.
Base Dimensions: 320x316x21mm.
Mounting Holes Position: 140x70mm.
M4.
Coaxial Coarse/Fine Focus.
Focus Distance: 385mm.
Black White Plate.
Clear Glass Plate.
Plate Size: Dia. 95x5mm.
Illumination Type: LED Transmitted Light.
Input Voltage: AC 90-240V 50/60Hz.
Specifications
Stand Type | Track Stand |
Holder Adapter Type | Dia. 39mm Scope Holder |
Track Length | 520mm |
Base Type | Illumination Base |
Base Shape | Rectangle |
Stand Throat Depth | 132mm |
Base Dimensions | 320x316x21mm |
Mounting Holes Position | 140x70mm |
Mounting Hole Dimensions | M4 |
Focus Mode | Manual |
Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
Focus Distance | 385mm |
Fine Focus Travel Distance | Same as Focus Distance |
Coarse Focus Distance per Rotation | 23mm |
Fine Focus Distance per Rotation | 0.56mm |
Illumination Type | LED Transmitted Light |
Bottom Illumination Type | LED |
Input Voltage | AC 90-240V 50/60Hz |
Surface Treatment | Spray Paint |
Material | Metal |
Color | Black, White |
Net Weight | 3.94kg (8.69lbs) |
Dimensions | 320x316x550mm (12.598x12.441x21.654 in. ) |
Microscope Plate
95x5mm Black White Stage Plate | |
Plate Type | Black White Plate |
Plate Size | Dia. 95x5mm |
Material | Plastic |
Color | Black, White |
Net Weight | 0.04kg (0.09lbs) |
95x5mm Clear Glass Stage Plate | |
Plate Type | Clear Glass Plate |
Plate Size | Dia. 95x5mm |
Material | Clear Float Glass |
Net Weight | 0.04kg (0.09lbs) |
