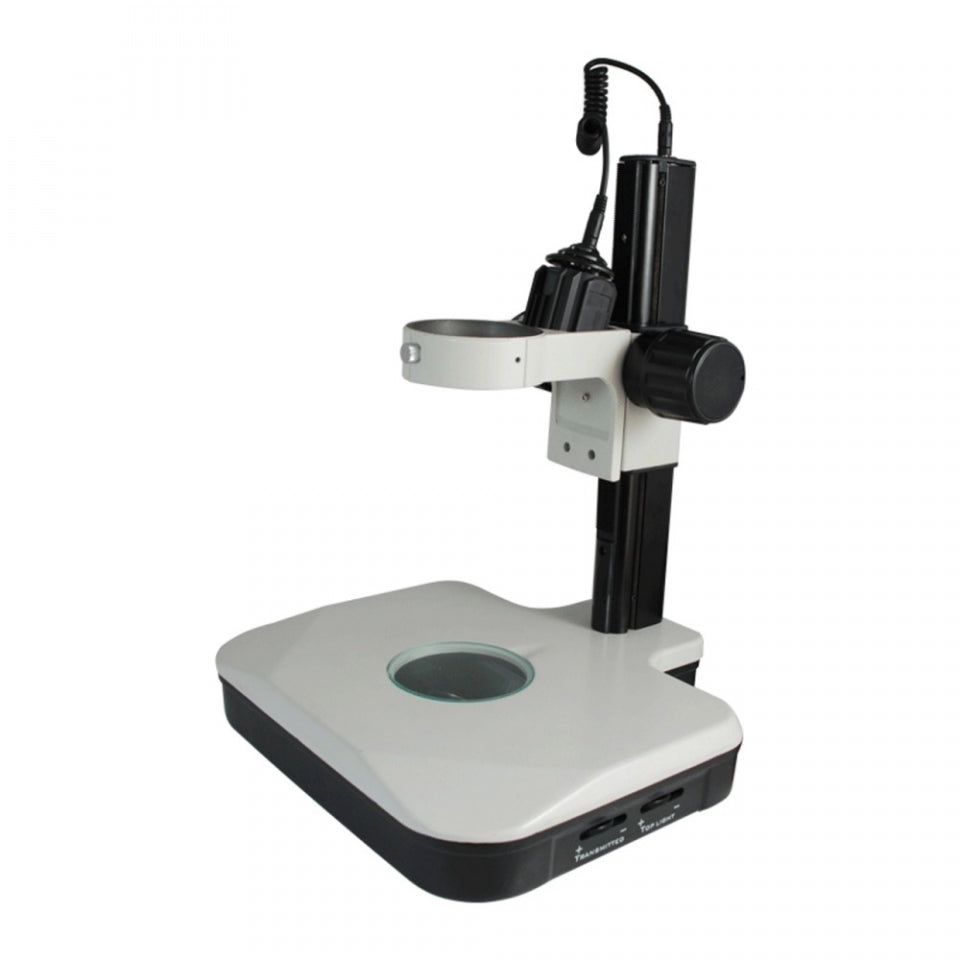

Munday Microscope Track Stand | 85mm Coarse Focus Rack | Top and Bottom Halogen Light
Regular price
$784.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
Munday Microscope Track Stand with an 85mm Coarse Focus Rack. Also comes with a Top and Bottom Halogen Light. Great microscope stand that is suitable for most standard stereo microscopes.
Part No. ST02031224
Dia. 85mm Scope Holder .
Track Length: 325mm.
Base Dimensions: 320x305x60mm.
Focus Distance: 200mm. 30W.
Output Voltage: DC 12V.
Specifications
Stand Type | Track Stand |
Holder Adapter Type | Dia. 85mm Scope Holder |
Track Length | 325mm |
Base Type | Illumination Base |
Base Shape | Rectangle |
Stand Throat Depth | 125mm |
Base Dimensions | 320x305x60mm |
Focus Mode | Manual |
Focus Distance | 200mm |
Coarse Focus Distance per Rotation | 23mm |
Focusing Knob Tightness Adjustable | Tightness Adjustable |
Illumination Type | HH Dual Illuminated Light |
Top Illumination | Oblique Top Light |
Top Illumination Type | Halogen Light |
Bottom Illumination Type | Halogen Light |
Output Power | 30W |
Input Voltage | AC 90-265V 50/60Hz |
Output Voltage | DC 12V |
Power Cord Connector Type | USA 3 Pins |
Power Cable Length | 1.8m |
Surface Treatment | Spray Paint |
Material | Metal |
Color | White |
Net Weight | 5.70kg (12.57lbs) |
Dimensions | 320x305x385mm (12.598x12.008x15.157 in. ) |
Microscope Plate
95x5mm Black White Stage Plate | |
Plate Type | Black White Plate |
Plate Size | Dia. 95x5mm |
Material | Plastic |
Color | Black, White |
Net Weight | 0.04kg (0.09lbs) |
95x5mm Clear Glass Stage Plate | |
Plate Type | Clear Glass Plate |
Plate Size | Dia. 95x5mm |
Material | Clear Float Glass |
Net Weight | 0.04kg (0.09lbs) |
Iris Diagram
Transmitted Illumination Iris | |
Aperture Diaphragm | Fixed Aperture Diaphragm |
Aperture Diaphragm Mounting Position | Vertical Illuminator |
Aperture Diaphragm Outer Diameter | Dia. 91mm |
Surface Treatment | Electroplating Black |
Material | Metal |
Color | Black |
Applied Field | For SA0216 Series Illumination Base |
Power Supply
Power Cable | |
Power Cord Connector Type | DC Plug |
Length | 0.4m |
Material | Plastic |
Color | Black |
