Munday Microscope Track Stand | 85mm Fine Focus Rack LED Bottom Light Base (Dimmable)
Regular price
$1,039.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596

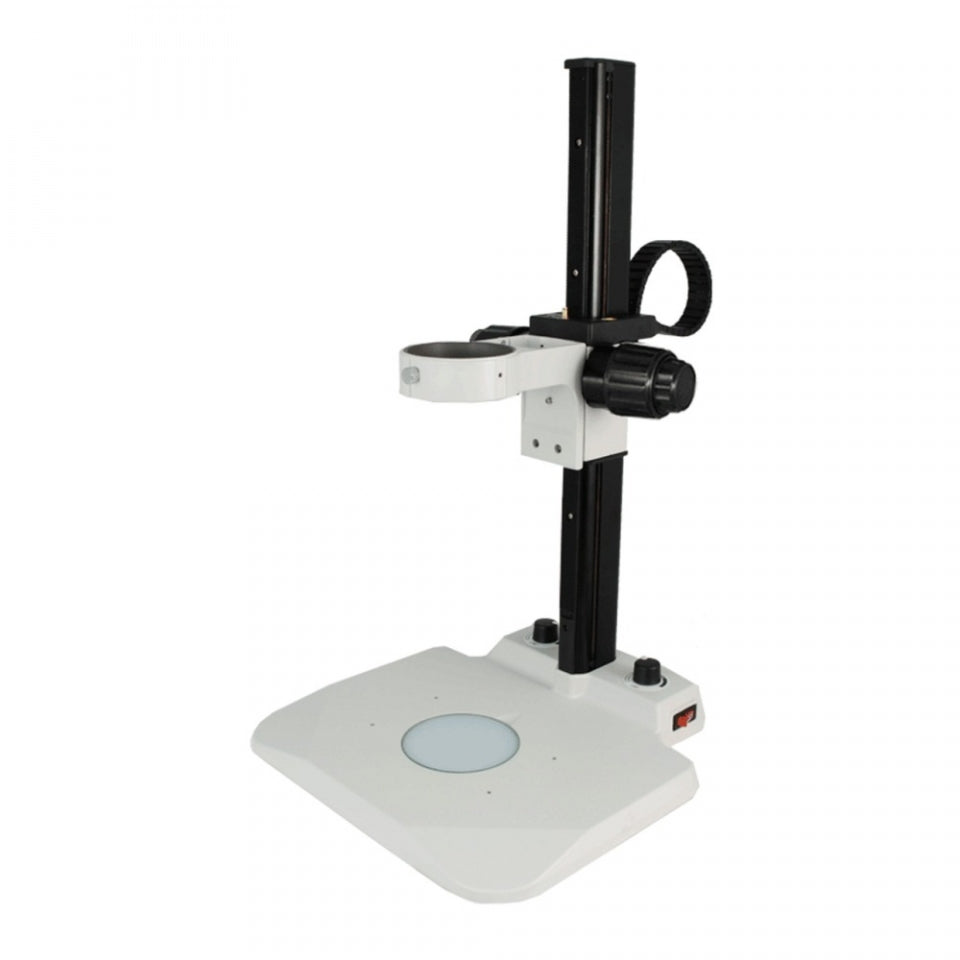

Munday Microscope Track Stand with an 85mm Fine Focus Rack LED Bottom Light Base. Great stand for any standard stereo microscope.
Part No. ST02041404
Track Stand.
Dia. 85mm Scope Holder .
Track Length: 520mm.
Base Dimensions: 320x316x21mm.
Mounting Holes Position: 140x70mm.
M4.
Coaxial Coarse/Fine Focus.
Focus Distance: 385mm.
Black White Plate.
Clear Glass Plate.
Plate Size: Dia. 95x5mm.
Illumination Type: LED Transmitted Light.
Input Voltage: AC 90-240V 50/60Hz.
Output Voltage: DC 6/12/24V.
Power Cord Connector Type: USA 3 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 85mm Scope Holder |
| Track Length | 520mm |
| Base Type | Illumination Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 132mm |
| Base Dimensions | 320x316x21mm |
| Mounting Holes Position | 140x70mm |
| Mounting Hole Dimensions | M4 |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
| Focus Distance | 385mm |
| Fine Focus Travel Distance | Same as Focus Distance |
| Coarse Focus Distance per Rotation | 23mm |
| Fine Focus Distance per Rotation | 0.56mm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | LED Transmitted Light |
| Bottom Illumination Type | LED |
| Input Voltage | AC 90-240V 50/60Hz |
| Output Voltage | DC 6/12/24V |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | Black, White |
| Net Weight | 3.94kg (8.69lbs) |
| Dimensions | 320x316x550mm (12.598x12.441x21.654 in. ) |
Microscope Plate
| 95x5mm Black White Stage Plate | |
| Plate Type | Black White Plate |
| Plate Size | Dia. 95x5mm |
| Material | Plastic |
| Color | Black, White |
| Net Weight | 0.04kg (0.09lbs) |
| 95x5mm Clear Glass Stage Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 95x5mm |
| Material | Clear Float Glass |
| Net Weight | 0.04kg (0.09lbs) |
