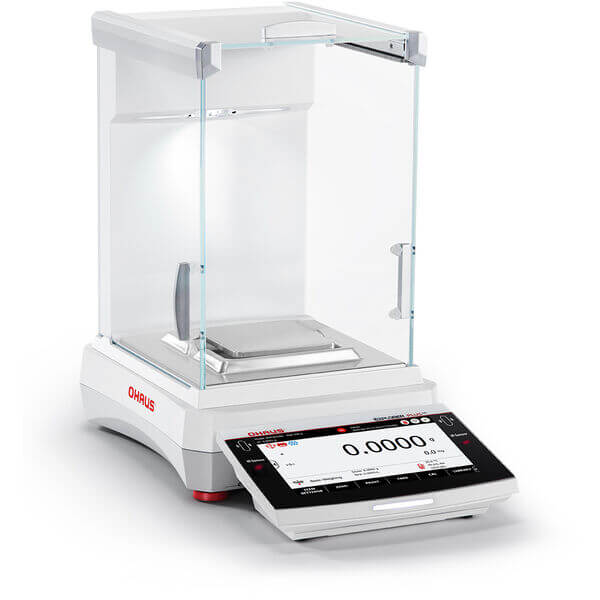

OHAUS Explorer Plus EXP324N/AD Analytical Balance, 320 g × 0.1 mg | 31059182

OHAUS Explorer Plus EXP324N/AD analytical balance for accurate laboratory sample preparation, formulation and quality-control weighing. The product specifications list a 320 g maximum capacity and 0.1 mg readability.

Product Highlights

  • Manufacturer: OHAUS
  • Series: Explorer Plus
  • Model: EXP324N/AD
  • Manufacturer item number: 31059182
  • Maximum capacity: 320 g
  • Readability: 0.1 mg

Detailed Technical Specifications

Product Overview

OHAUS EXP324N/AD Explorer Plus Analytical Balance | 31059182 (OHAUS item #31059182) is an Explorer Plus analytical balance for laboratory weighing applications. Review the original manufacturer specifications for capacity, readability, calibration and interfaces.

Key Features & Applications

  • Manufacturer item number: 31059182
  • Model-specific details and applications are listed below
  • Confirm configuration and accessory compatibility before purchase

Technical Specifications & Additional Information

Applications

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control

Display

7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A

Communication

USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle

Construction

Modular design, Metal base and housing, SST 316 weighing pan, Enhanced automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Motorized leveling, Built-in ionizer, 2 touchless sensors, Sample spotlight and status lights

Design Features

Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries

Specifications

Maximum Capacity 320 g
Readability 0.1 mg
Pan Size 3.5 in x 3.5 in (90 mm x 90 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Dimensions 16.1 in x 14.6 in x 9 in (408 mm x 372 mm x 229 mm) (LxHxW)
Battery Life Not Applicable
Legal for Trade NTEP Certified
Auxiliary Display Model Available as an Accessory
Auto Door Anti-pinch autodoors
Tare Range To capacity by subtraction
Working Environment 59°F – 77°F, 80%RH, non-condensing (15°C – 25°C, 80%RH, non-condensing)
Net Weight 17.2 lb (7.8 kg)
In-Use Cover Included
Communication USB device;  USB host x 2;  RS232;  Ethernet TCP/IP;  WiFi/Bluetooth (available as an accessory)
Power AC Adapter (Included)
Units of Measurement Milligram;  Ounce Troy;  Pennyweight;  Gram;  Grain;  Carat;  Ounce
Minimum Weight 10 mg
Display 7" colour TFT touchscreen
Pan Construction Stainless Steel
Built-in Ionizer Yes
Stabilization Time 2 s
Repeatability, typical 0.1 mg
Minimum Weight (USP, 0.1%, typical) 100 mg
Linearity ± 0.2 mg
