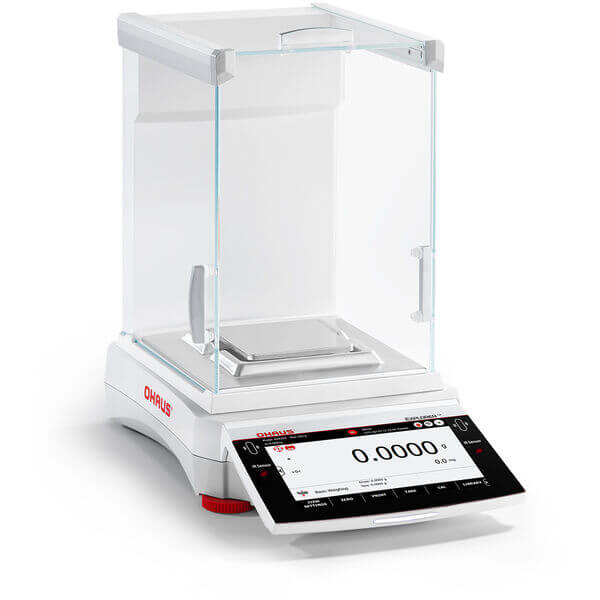

OHAUS Explorer Analytical Balance EXR124N, 120 g × 0.1 mg | 31059217

The OHAUS EXR124N explorer analytical laboratory balance supports precision sample weighing, formulation, and quality control. The existing technical specifications list a 120 g maximum capacity and 0.1 mg readability.

Product Highlights

  • Manufacturer: OHAUS
  • Model: EXR124N
  • Item number: 31059217
  • Maximum capacity: 120 g
  • Readability: 0.1 mg

Technical Specifications and Applications

Product Overview

OHAUS EXR124N Explorer Analytical Balance | 31059217 (OHAUS item #31059217) is an Explorer analytical balance for laboratory weighing and quality-control applications. Review the model-specific capacity, readability, calibration options and interfaces in the specifications below.

Key Features & Applications

  • Manufacturer item number: 31059217
  • Explorer analytical laboratory balance
  • Sample preparation, routine weighing and quality-control workflows

Technical Specifications & Additional Information

Applications

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold

Display

7-inch TFT 16.7M Color Touch Screen with Glass Overlay

Operation

AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A

Communication

USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle

Construction

Metal housing, SST 316 weighing pan, Anti-static glass draftshield, 2 touchless sensors, Terminal status lights

Design Features

Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries


Specifications

Maximum Capacity 120 g
Readability 0.1 mg
Pan Size 3.5 in x 3.5 in (90 mm x 90 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Dimensions 15.5 in x 14.6 in x 9 in (393 mm x 370 mm x 230 mm) (LxHxW)
Battery Life Not Applicable
Legal for Trade NTEP Certified
Auxiliary Display Model Available as an Accessory
Auto Door Not Applicable
Tare Range To capacity by subtraction
Working Environment 59°F – 77°F, 80%RH, non-condensing (15°C – 25°C, 80%RH, non-condensing)
Net Weight 16.3 lb (7.4 kg)
In-Use Cover Included
Communication USB device;  USB host x 2;  RS232;  Ethernet TCP/IP;  WiFi/Bluetooth (available as an accessory)
Power AC Adapter (Included)
Units of Measurement Milligram;  Ounce Troy;  Pennyweight;  Gram;  Grain;  Carat;  Ounce
Minimum Weight 10 mg
Display 7" colour TFT touchscreen
Pan Construction Stainless Steel
Built-in Ionizer No
Stabilization Time 2 s
Repeatability, typical 0.1 mg
Minimum Weight (USP, 0.1%, typical) 100 mg
Linearity ± 0.2 mg
