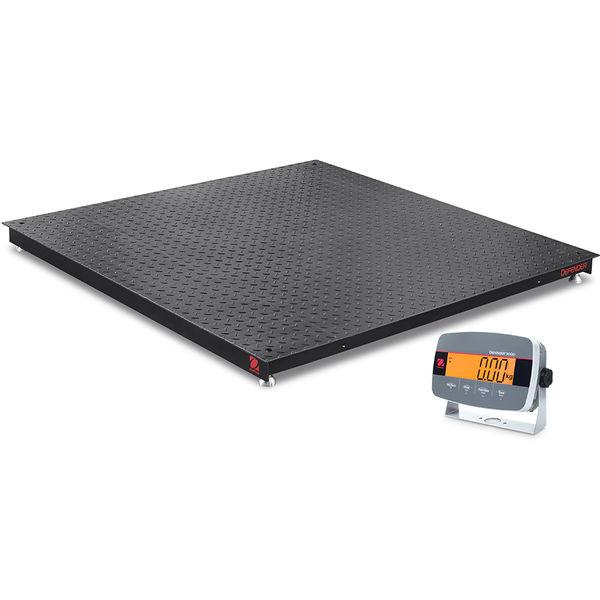

Ohaus Defender 3000 Floor Scales - i-DF33 DF33P5000B1X 30716508

Defender 3000 Floor Platforms meet dry weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that changes color when in check mode. Scale also includes counting and totalization modes. Ramps and mounting plates are available.

Applications
Weighing, Checkweighing, Counting, Totalization
Display
7 Segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (not included)
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Maximum Capacity 5,000 lb (2,500 kg)
Readability 1 lb (0.5 lb)
Readability (Certified) 1 lb (0.5 lb)
Platform Size 5 ft x 5 ft (1,524 mm x 1,524 mm)
Battery Life 30 Hours with Rechargeable Battery; 100 Hours with Disposable Batteries
Legal for Trade NTEP Certified
Dimensions 5 ft x 3.5 in x 5 ft (1,524 mm x 90 mm x 1,524 mm) (LxHxW)
Tare Range To capacity by subtraction
Working Environment -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing)
Platform Construction Painted Steel Diamond Plate
Net Weight 401 lb (182 kg)
Protection Rating Not Applicable
Communication Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory)
Power 6 C (LR14) Batteries (Not Included); Rechargeable Battery (Not Included); AC Power (Included)
Units of Measurement Metric Tons; Kilogram; Pound
Display 7 Segment LCD with multicolor backlight
Outputs Not Applicable
