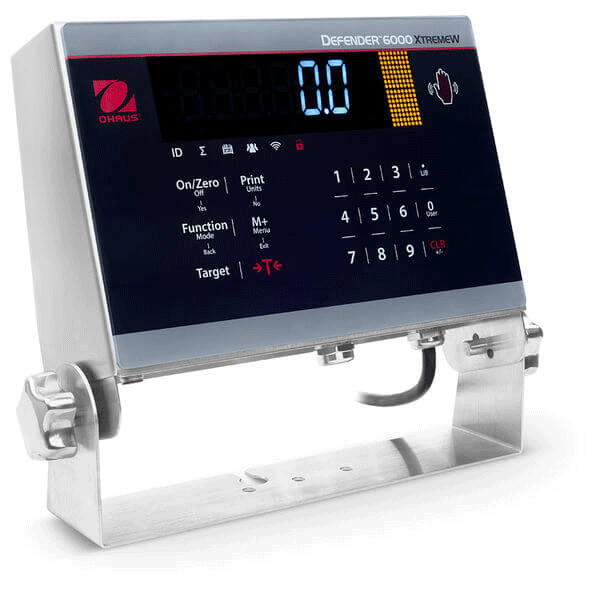

Ohaus DT61XWE Advanced IP68/IP69K Washdown Indicator 30575584
DT61XWE
DT61XWE Advanced IP68/IP69K Washdown Indicator
DT61XWE
| Resolution | 75,000 |
| Battery Life | Not Applicable |
| Outputs | 4 - 20mA;0–10V;2 In/4 Out digital I/O |
| Item Number: | 30575584 |
OVERVIEW
The Defender 6000 Series Extreme Washdown Indicator is specifically designed for food, chemical and pharmaceutical applications including production, processing, and packaging. Defender 6000 handles the most demanding applications with a food grade polycarbonate housing equipped with 3-color check light bar, ultra-long battery life and EasyConnect™.
Applications
Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Dynamic Weighing/Display Hold
Display
6-digit, 7-segment LCD display with white backlight, 45 mm high digits
Operation
6 D (LR20) Batteries (Included)
Communication
Easy access IR communication kit (available as an accessory); GLP/GMP data output with real-time clock
Construction
IP68/IP69K food grade polycarbonate housing and 316 stainless steel mounting bracket
Design Features
3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare
SPECIFICATIONS
| Resolution | 75,000 |
| Battery Life | Not Applicable |
| Outputs | 4 - 20mA; 0–10V; 2 In/4 Out digital I/O |
| Second Scale Input | Not Applicable |
| Protection Rating | IP69k; IP68 |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory) |
| Dimensions | 11.4 in x 9.3 in x 3.1 in (290 mm x 235 mm x 80 mm) (LxHxW) |
| Display | 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Net Weight | 7 lb (3.2 kg) |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound: Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
