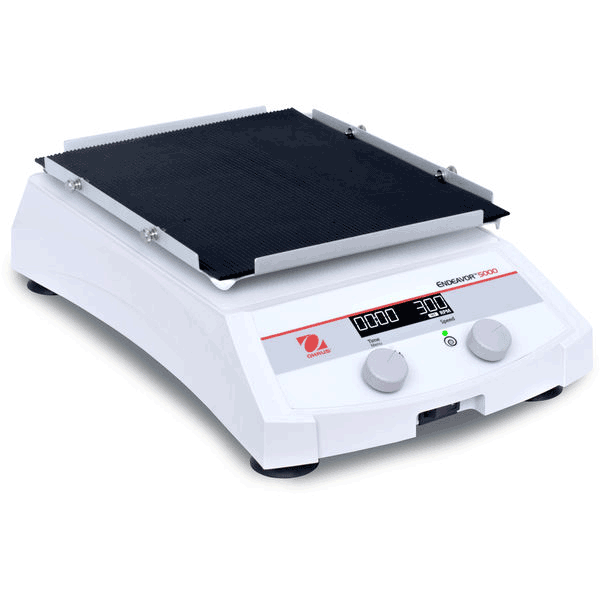

Ohaus e-E51LD0420 AM Light Duty Orbital Shaker Model # 30770910
Endeavor™ Light Duty Shakers are available in 3 models: 3 mm orbit, 20 mm orbit, or dedicated microplate model. All models can be used in incubators and cold rooms. Stable, accurate, long-term shaking is ensured with the triple eccentric drive and maintenance-free brushless DC motor. Integrated overload and unbalanced detection to protect samples.
Applications
Microbiology, Molecular Biology, ELISA Assays, Cell Cultures, Immunoassays, Protein Studies, Bacterial and Yeast Cultures, Staining/Destaining, Blotting Techniques, DNA Studies, Solubility Studies, Environmental and Food Sciences, Chemistry, General Mixing
Display
Bright, backlit LCD display for speed and time, timer will count up elapsed time or when set, timer will count down and shut off shaking when time reaches zero, green indicator light illuminates when unit is shaking, easy to navigate menu for advanced features
Operation
Simple knob control for timer and shaking, tray with attachment points for flask clamps, tube racks and non-slip rubber mat included, optional accessories include universal platform and over 20 flask clamps and tube racks. One model dedicated for microplates
Communication
RS232 interface provides 2-way communication for data logging and unit control
Construction
Durable chemical-resistant polymer housing, sturdy easy-to-clean aluminum standard tray with attachment points for accessories, IP21 ingress protection, robust triple eccentric drive for stable shaking, brushless DC motor, control knobs, on/off switch
Design Features
Visual and audio alarm when timer counts down to zero or an error occurs, small footprint to save bench space, advanced microprocessor control slowly ramps the shaker tray up to the desired speed and avoids splashing, easy to attach optional accessory platform
SPECIFICATIONS
| Motion | Orbital, 20 mm |
| Capacity | 4.0 kg, up to 3 x 1 L flasks |
| Speed Range | 50 rpm – 300 rpm |
| Tray Size (Length) | 300 mm (11.75 in) |
| Tray Size (Width) | 222 mm (8.75 in) |
| Timer | 1 minute – 99 hours, 59 minutes |
| Control | Digital |
| Drive System | Triple Eccentric; Brushless DC Motor |
| Speed Accuracy | ±2 rpm, Above 100 rpm ±2% of set speed |
| Tray Construction | Aluminum |
| Dimensions (Length) | 420 mm (16.5 in) |
| Dimensions (Width) | 262 mm (10.3 in) |
| Dimensions (Height) | 119 mm (4.7 in) |
| Communication | RS232 |
| Display | Custom Back-lit LCD |
| Net Weight | 7.5 kg (16.5 lb) |
| Orbit | 20 mm (0.8 in) |
| Power | 24V DC, 1.25A |
| Safety Certification | TUV |
| Speed Range | 50 rpm - 300 rpm |
| Working Environment | -10°C – 40°C, 80%RH, non-condensing |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing |
Logistic Specifications
| Country of origin | CN |
| Customs tariff number | 8479899599 |
