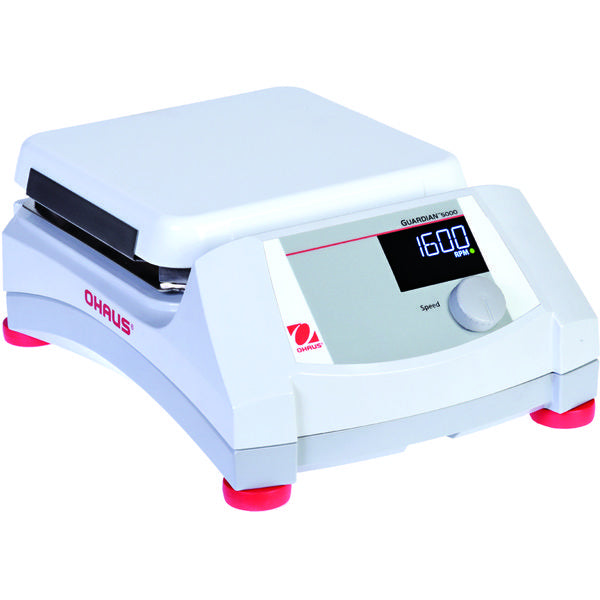

Ohaus e-G51ST07C Stirrer (15L Capacity) 30500540

OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.

Applications

Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

Display

Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon

Operation

Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar

Communication

N/A

Construction

Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops

Design Features

Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

Product Specifications

Function Stirring
Capacity {text} 15 L
Plate Construction Ceramic
Plate Size (Width) 178.0 mm (7.0 in)
Plate Size (Length) 178.0 mm (7.0 in)
Speed Range 60 rpm – 1,600 rpm
Working Environment 41°F – 104°F, 80%RH, non-condensing
Calibration Temperature Calibration 3 Plate/3 Probe
Net Weight 2.6 kg (5.7 lb)
Power Consumption 108 W
Control Digital
Speed Range {text} 60 to 1600 rpm
In-Use Cover Available as an Accessory
Safety Certification TUV
Speed Stability +/-2%
Temp. Stability +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Dimensions (Height) 122.0 mm (4.8 in)
Dimensions (Width) 223.0 mm (8.8 in)
Display Custom Backlit LCD
Dimensions (Length) 309.0 mm (12.2 in)
Power 120V, 1.0A, 50/60Hz
Working Environment 5°C – 40°C, 80%RH, non-condensing
Temperature probe Available as an Accessory

Logistic Specifications

Country of origin US
Customs tariff number 8479820040
