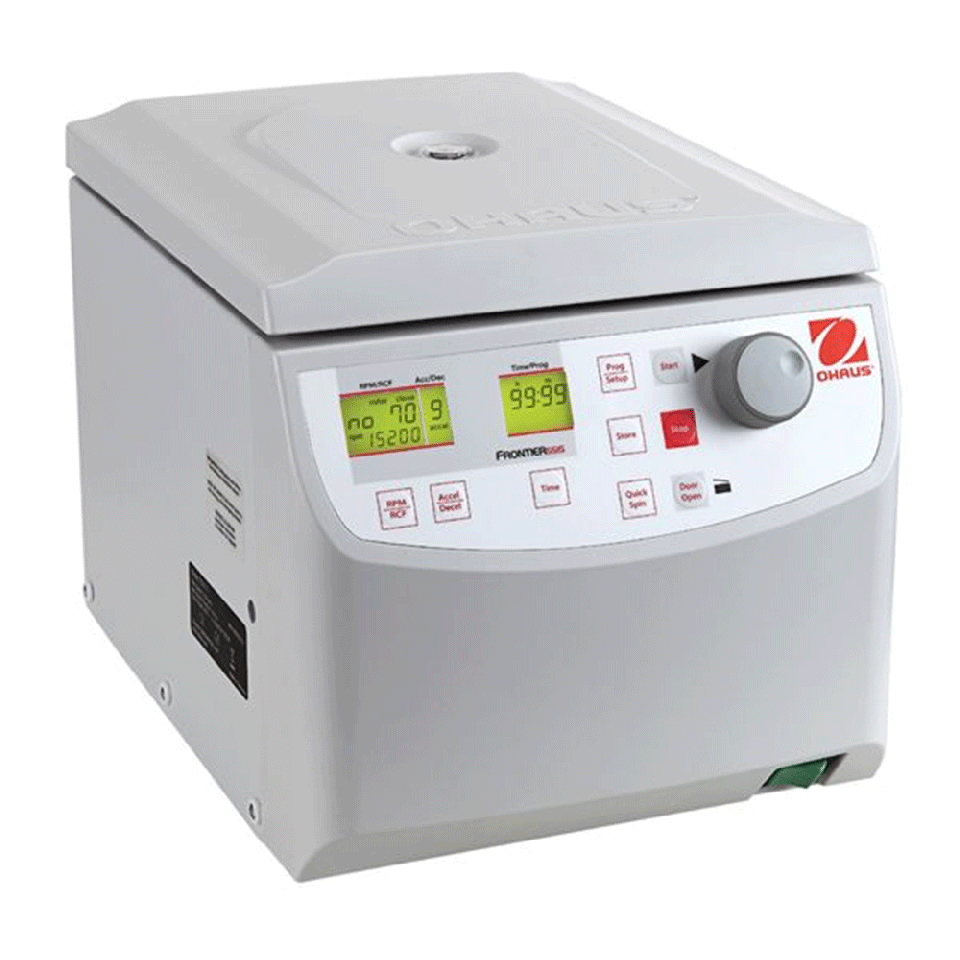

OHAUS FC5515R Frontier 5000 Series Micro Centrifuge (Discontinued)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The OHAUS FC5515R Frontier 5000 Series Micro Centrifuge (Discontinued) (OHAUS item #30130868) is a benchtop centrifuge for laboratory sample preparation and separation. Check the technical specifications below for rotor capacity, operating speed, and compatible accessories. Discontinued: Contact Microscope Marketplace about replacement options before ordering.
Key Features & Applications
The Ohaus FC5515R has an intuitive control panel with rotary knob puts the ability to quickly set and recall speed and g-force, as well as control the temperature at your fingertips. Model # 30130868 has a lid locking system and sensor that stops the centrifuge if the rotors become imbalanced, protecting the operator from being injured by the spinning rotors.
Technical Specifications
| Speed Range | 200 rpm – 15,200 rpm |
| Maximum Relative Centrifuge Force (x g) | 21,953 g |
| Maximum Capacity (Rotor) | 44 x 1.5 / 2.0ml; 12 x 5 ml |
| Refrigeration Range {metric} | -4 °F – 104 °F (-20 °C – 40 °C) |
| Program memories | 99 |
| Rotor In Package | Not applicable |
| Acceleration Gear | 10 |
| Deceleration Gear | 10 |
| Dimensions (HxLxW) | 11.5 in x 22.1 in x 11.3 in (292 mm x 561 mm x 287 mm) |
| Display | LCD with backlight |
| Lid lock | Motor driven |
| Net Weight | 77 lb (35 kg) |
| Noise Level | ≤57±2 dB(A) |
| Power | AC Power (Included) |
| Power Consumption | 500 W |
| Pre-cool time | From room temperature to 4℃ ＜ 10min |
| Rotor Compatibility | Angle 24 x 1.5 ml / 2.0 ml; Angle 24 x 1.5 ml / 2.0 ml Sealable; Angle 12 x 5 ml Sealable; Angle 44 x 1.5 ml / 2.0 ml; Angle 4 x 8 place PCR Strips; Angle 30 x 1.5 ml / 2.0 ml Sealable |
| Running Time | 10 sec to 99 h 59 min 59 sec; Continous |
| CE; FCC | |
| Working Environment | 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
