Product Overview

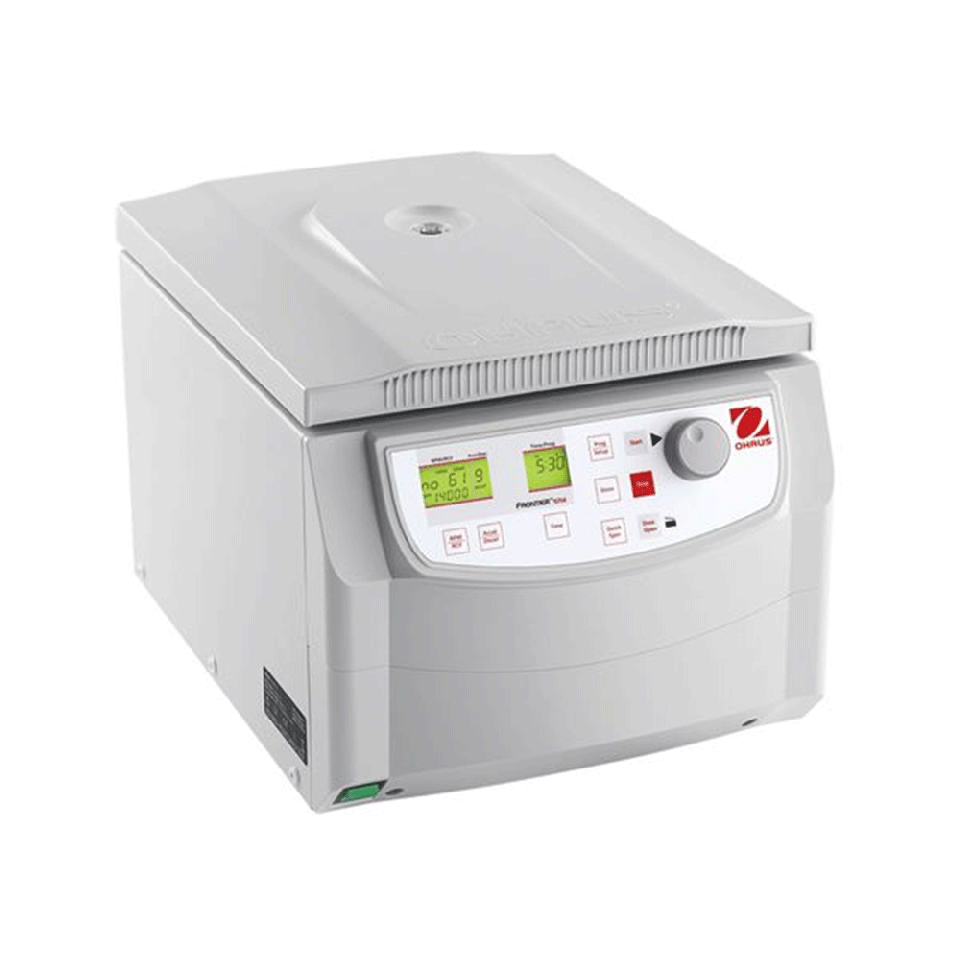

OHAUS FC5718 230V Frontier 5000 Multi-Pro Centrifuge (manufacturer item #30314812) is a configurable laboratory centrifuge for sample separation and processing. This listing is for the 230V configuration. Compatible rotors and accessories should be selected according to the manufacturer's specifications.
Key Features & Applications
The Ohaus FC5718 230V offers a high-speed centrifugation platform which can be customized to fit workflow needs using a wide variety of rotors and accessories. The performance of this centrifuge is propelled by German engineering, and high-quality components for reliable use. Model # 30314812 has a speed range of 200 rpm- 18,000 rpm.
Technical Specifications
| Speed Range | 200 rpm – 18,000 rpm |
| Maximum Relative Centrifuge Force (x g) | 23,542 g |
| Maximum Capacity (Rotor) | 4 x 100 ml |
| Program memories | 99 |
| Rotor In Package | Not applicable |
| Acceleration Gear | 10 |
| Deceleration Gear | 10 |
| Dimensions (HxLxW) | 13.82 in x 19.65 in x 16.06 in (351 mm x 499 mm x 408 mm) |
| Display | LCD with backlight |
| Lid lock | Motor driven |
| Net Weight | 95 lb (43 kg) |
| Noise Level | ≤60±2 dB(A) |
| Power | AC Power (Included) |
| Power Consumption | 455 W |
| Pre-cool time | Not applicable |
| Rotor Compatibility | Swing out 4 x 100 ml ID; Swing out 4 x 100 ml ID Sealable; Swing out 2 x 3MTP ID; Angle 6 x 85 ml RB ID Hi; Angle 6 x 85 ml RB ID; Angle 4 x 85ml RB ID Hi; Angle 10 x 50 ml FA ID; Angle 6 x 50 ml RB ID Hi; Angle 6 x 50 ml RB/FA ID; Angle 30 x 15 ml RB/FA ID; Angle 20 x 10 ml RB ID Hi; Angle 12 x 15 ml RB/FA ID; Angle 44 x 1.5 / 2.0 ml ID; Angle 30 x 1.5 / 2.0 ml ID Sealable; Angle 24 x 1.5 / 2.0 ml ID Sealable; Angle 24 x 1.5 / 2.0 ml ID; Angle 12 x 1.5 / 2.0 ml ID; Angle 64 x 0.5 ml ID; Angle 4 x 8-w PCR Strip ID |
| Rotor Recognition Method | Auto |
| Running Time | Quickspin; 10 sec to 99 h 59 min 59 sec; Continous |
| CE; FCC | |
| Working Environment | 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
Product Interface helpful Youtube video : HERE
Contact Microscope Marketplace to confirm availability and lead time.
Manufacturer Resources
OHAUS product catalog and manufacturer support. Check model-specific rotor compatibility, documentation and accessories before purchase.
