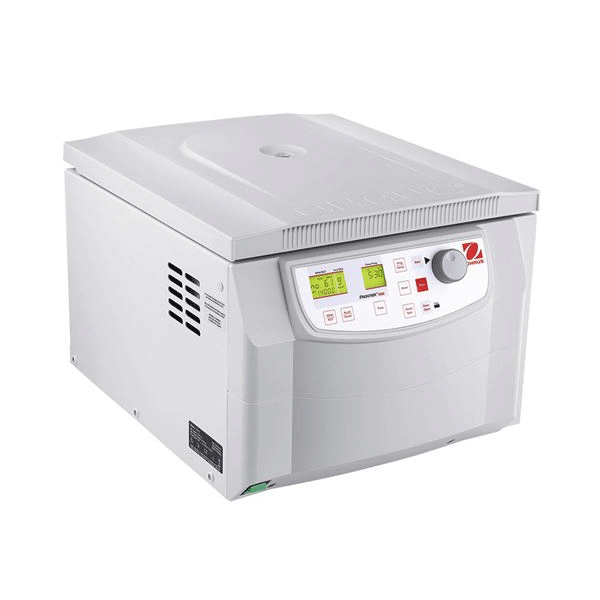

Ohaus FC5816 230V Frontier 5000 Series Multi Pro Centrifuge
Regular price
$4,368.65
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
Ohaus FC5816 230V Frontier 5000 Series Multi Pro Model # 30314816
The Ohaus FC5816 230V offers a high-speed centrifugation platform which can be customized to fit workflow needs using a wide variety of rotors and accessories. The performance of this centrifuge is propelled by German engineering, and high-quality components for reliable use. Model # 30314816 has a speed range of 200 rpm - 15,000 rpm.
Applications
Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing
Display
Backlit Liquid Crystal Display (LCD)
Operation
Designed to be used with a variety of rotors and accessories
Communication
N/A
Construction
Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid
Design Features
Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing
Specifications
| Speed Range | 200 rpm – 15,000 rpm |
| Maximum Relative Centrifuge Force (x g) | 21,379 g |
| Maximum Capacity (Rotor) | 6 x 250 ml |
| Program memories | 99 |
| Rotor In Package | Not applicable |
| Acceleration Gear | 10 |
| Deceleration Gear | 10 |
| Dimensions (HxLxW) | 13.94 in x 21.18 in x 17.56 in (354 mm x 538 mm x 446 mm) |
| Display | LCD with backlight |
| Lid lock | Motor driven |
| Net Weight | 115 lb (52 kg) |
| Noise Level | ≤61±2 dB(A) |
| Power | AC Power (Included) |
| Power Consumption | 530 W |
| Pre-cool time | Not applicable |
| Rotor Compatibility | Swing out 4 x 250 ml ID; Swing out 2 x 3MTP ID; Swing out 16 x 50 ml ID; Angle 6 x 250 ml FB ID; Angle 6 x 85 ml RB ID; Angle 4 x 85ml RB ID Hi; Angle 10 x 50 ml FA ID; Angle 6 x 50 ml RB ID Hi; Angle 30 x 15 ml RB/FA ID; Angle 20 x 10 ml RB ID Hi; Angle 44 x 1.5 / 2.0 ml ID; Angle 24 x 1.5 / 2.0 ml ID Sealable; Angle 24 x 1.5 / 2.0 ml ID |
| Rotor Recognition Method | Auto |
| Running Time | Quickspin; 10 sec to 99 h 59 min 59 sec; Continous |
| CE; FCC | |
| Working Environment | 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
