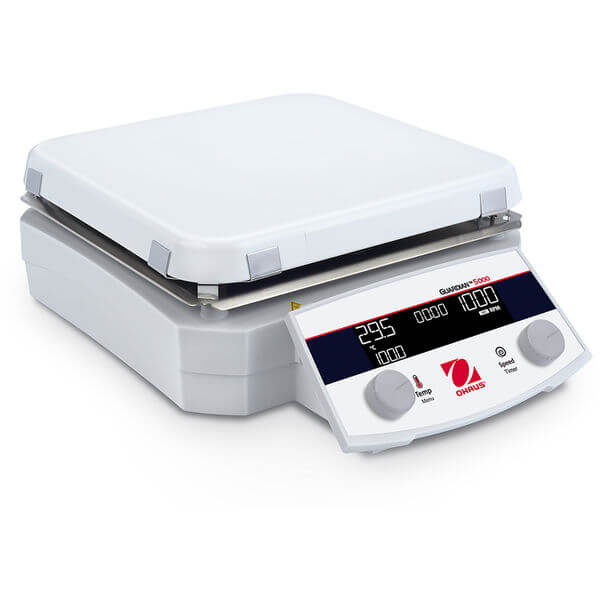

Ohaus Hotplate-Stirrer e-G52HS10C 120V AM | 30541637
Applications
Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
Display
Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
Operation
100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
Communication
RS232 for data logging and remote control
Construction
Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet
Design Features
Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)
Specifications
| Function | Heating and Stirring |
| Capacity | 22 L |
| Plate Construction | Ceramic |
| Plate Size | 10 in x 10 in (26 cm x 26 cm) |
| Temp. Range | Ambient +5°C – 500°C |
| Speed Range | 50 rpm – 1,800 rpm |
| Calibration | Temperature Calibration 3 Plate/3 Probe |
| Communication | Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232 |
| Control | Digital |
| Dimensions | 15.84 in x 4.65 in x 11.28 in (402 mm x 118 mm x 287 mm) (LxHxW) |
| Display | High contrast brilliant LCD display |
| Net Weight | 14.8 lb (6.7 kg) |
| Power | 100V-120V~ 15A 50/60Hz |
| Safety Certification | CE; TUV |
| Speed Stability | +/-2% |
| Temperature Probe | Pt100; Pt1000; Available as an Accessory |
| Temp. Stability | +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C |
| Timer | 1 min - 5,999 min |
| Working Environment | 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing) |
