OHAUS Explorer EXR8202N Precision Balance, 8,200 g × 0.01 g | 31059235

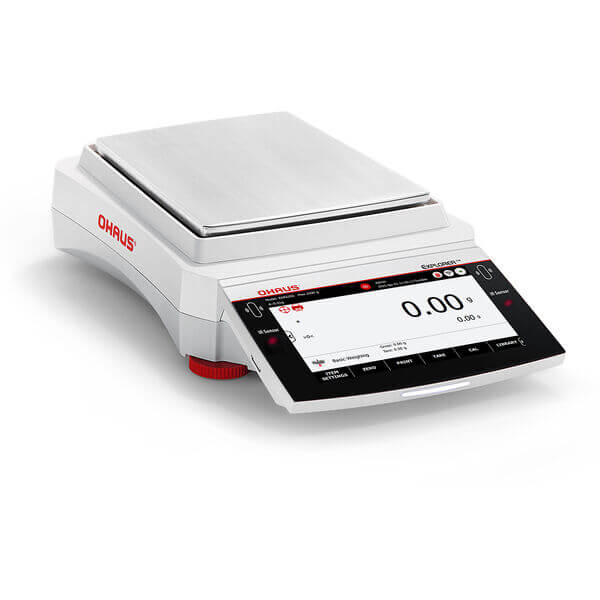

The OHAUS Explorer EXR8202N precision laboratory balance is designed for accurate sample preparation, formulation and quality-control weighing. This configuration has a 8,200 g maximum capacity and 0.01 g readability, as specified in the existing product data.

Key Product Details

  • Manufacturer: OHAUS
  • Series: Explorer
  • Model: EXR8202N
  • Manufacturer item number: 31059235
  • Maximum capacity: 8,200 g
  • Readability: 0.01 g

Technical Specifications and Applications

Applications

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold

Display

7-inch TFT 16.7M Color Touch Screen with Glass Overlay

Operation

AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A

Communication

USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle

Construction

Metal housing, SST 316 weighing pan, Anti-static glass draftshield, 2 touchless sensors, Terminal status light

Design Features

Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries


Specifications

Maximum Capacity 8,200 g
Readability 0.01 g
Pan Size 7.9 in x 7 in (201 mm x 178 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield —
Dimensions 15.4 in x 3.7 in x 9 in (391 mm x 95 mm x 229 mm) (LxHxW)
Battery Life Not Applicable
Legal for Trade NTEP Certified
Auxiliary Display Model Available as an Accessory
Auto Door Not Applicable
Tare Range To capacity by subtraction
Working Environment 10°C – 30°C, 80%RH, non-condensing (50°F – 86°F, 80%RH, non-condensing)
Net Weight 10.8 lb (4.9 kg)
In-Use Cover Included
Communication USB device;  USB host x 2;  RS232;  Ethernet TCP/IP;  WiFi/Bluetooth (available as an accessory)
Power AC Adapter (Included)
Units of Measurement Ounce Troy;  Pennyweight;  Gram;  Grain;  Kilogram;  Pound;  Carat;  Ounce
Minimum Weight 1.4 g
Display 7" colour TFT touchscreen
Pan Construction Stainless Steel
Built-in Ionizer No
Stabilization Time 1 s
Repeatability, typical 0.01 g
Minimum Weight (USP, 0.1%, typical) 14 g
Linearity ± 0.02 g
Linearity ± 2 mg
