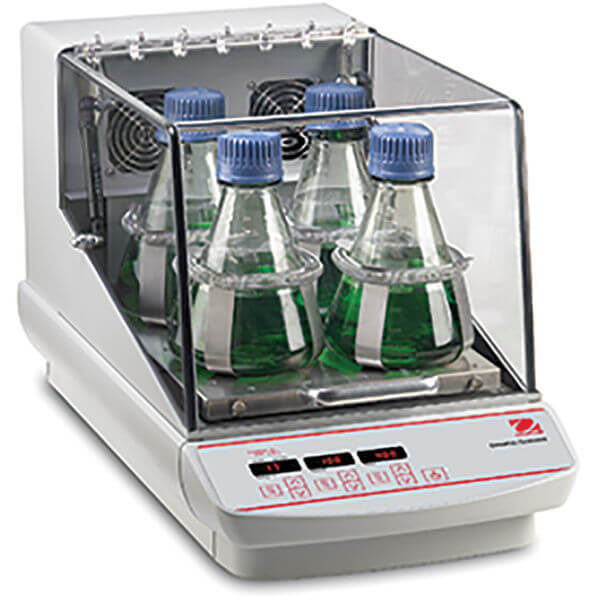

Ohaus Incubating Heavy Duty Orbital Shakers ISHD16HDG
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Ohaus Incubating Heavy Duty Orbital Shakers ISHD16HDG 30573769
Applications
Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display
Independent LED displays for temperature, speed and time
Operation
N/A
Communication
RS232
Construction
Aluminum and Cycoloy
Design Features
Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
Specifications
| Calibration Certificate | Orbital, 19 mm |
| Capacity | 35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500 rpm |
| Temp. Range | Ambient +5°C – 65°C |
| Speed Range | 15 rpm – 500 rpm |
| Tray Size | 13 in x 11 in (330 mm x 279 mm) (LxW) |
| Control | Digital |
| Calibration | Temperature calibration |
| Communication | RS232 |
| Dimensions | 25.5 in x 16 in x 14 in (648 mm x 406 mm x 356 mm) (LxHxW) |
| Drive System | Triple Eccentric; Brushless DC Motor |
| Inner Dimensions | 13.4 in x 9.5 in x 12 in (340 mm x 241 mm x 305 mm) (LxHxW) |
| Net Weight | 79.11 lb (35.9 kg) |
| Power | 120V, 5A, 50/60Hz |
| Power Consumption | 450 W |
| Safety Certification | TUV |
| Speed Accuracy | Above 100rpm +/- 1%, Below 100rpm /- 1 rpm |
| Timer | 1 second – 160 hours |
| Tray Construction | Aluminum |
| Uniformity | ± 0.5°C at 37°C |
| Working Environment | 59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing) |
