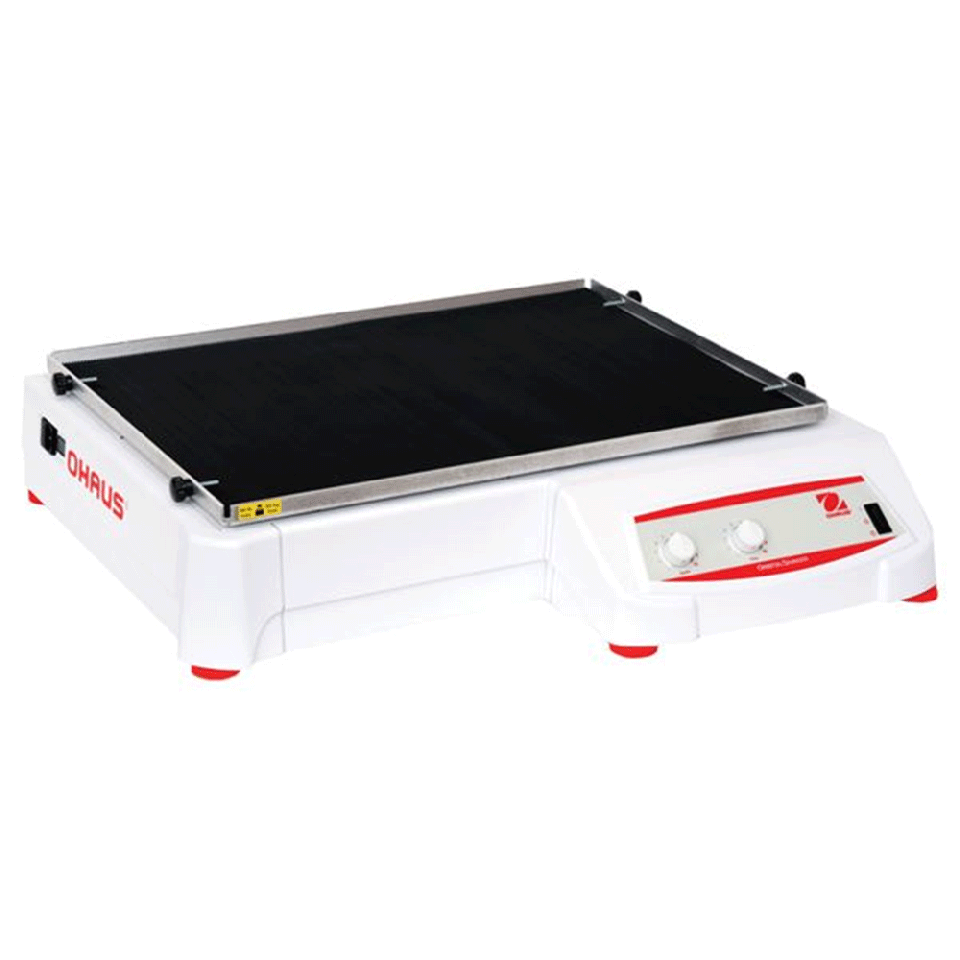

Ohaus SHHD2325AL Heavy Duty Orbital Shaker Model # 30391835
The Ohaus SHHD2325AL has touchpad controls and LEDs making it easy to view speed and time settings at once. The load sensor detects unbalanced conditions & automatically reduces rpm to a safe speed to protect samples. Model # 30391835 has a triple eccentric brushless DC motor that requires no maintenance and reaches speeds of 25 rpm - 500 rpm. This devices increases its speeds slowly insuring that there are no spills or splatters.
Applications
Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS)
Design Features
Built-in tray (11 x 13 inch or 28 x 33 cm) with a non-slip rubber mat (included)
Specifications
| Model | SHHD2325AL |
| Motion | Orbital, 25 mm |
| Capacity | 22.7 kg |
| Tray Size (LxW) | 18 in x 24 in (45.7 cm x 61 cm) |
| Control | Analog |
| Drive System | Brushless DC Motor; Triple Eccentric |
| Calibration | Speed calibration |
| Net Weight | 108 lb (49 kg) |
| Orbit | 1 in (25 mm) |
| Power | 120V, 5A, 50/60Hz |
| Power Consumption | 75 W |
| Safety Certification | TUV |
| Speed Accuracy | ±1 rpm, Above 100 rpm ±1% of set speed |
| Speed Range | 25 rpm – 500 rpm |
| Timer | 1 minute – 120 minutes |
| Tray Construction | Aluminum |
| Working Environment | 32°F – 104°F, 80%RH, non-condensing (0°C – 40°C, 80%RH, non-condensing) |
