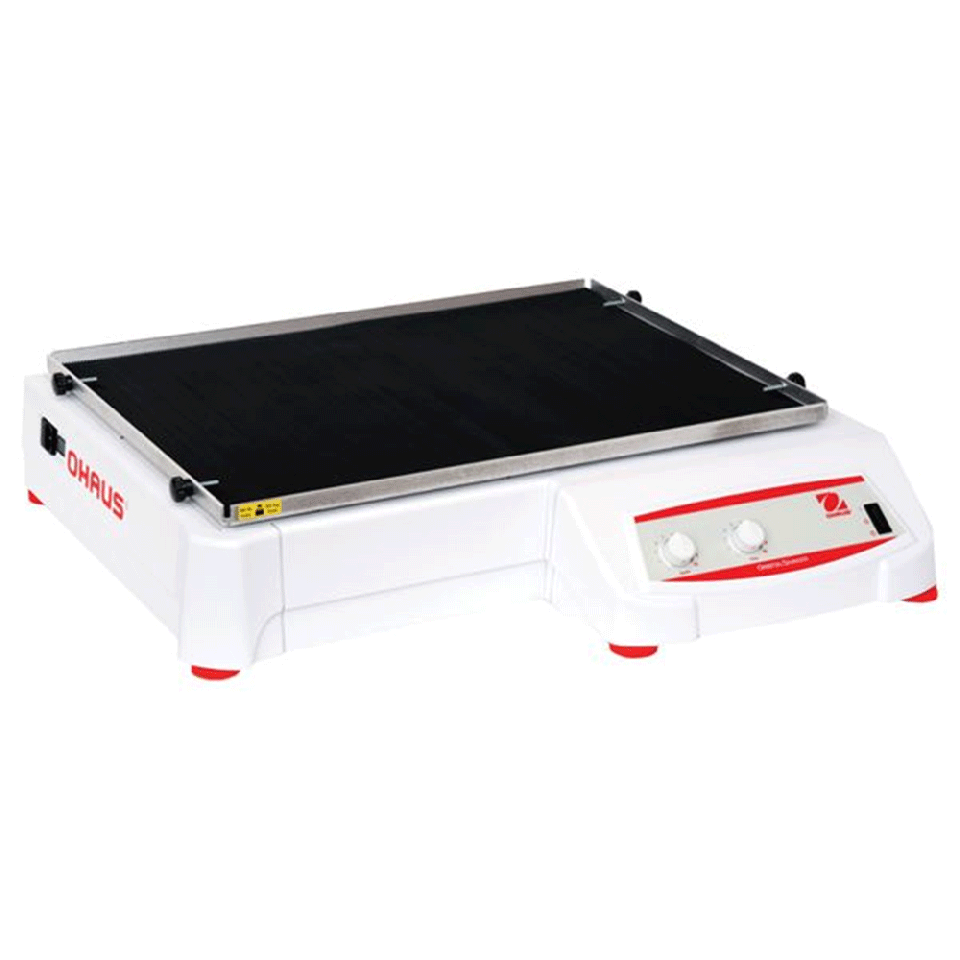

Ohaus SHHD2325DG Heavy Duty Orbital Shaker Model # 30391842

The Ohaus SHHD2325DG has touchpad controls and LEDs making it easy to view speed and time settings at once. The load sensor detects unbalanced conditions & automatically reduces rpm to a safe speed to protect samples. Model # 30391842 has a triple eccentric brushless DC motor that requires no maintenance and reaches speeds of 20 rpm - 500 rpm. This devices increases its speeds slowly insuring that there are no spills or splatters.

Applications
Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS)
Design Features
Built-in tray (11 x 13 inch or 28 x 33 cm) with a non-slip rubber mat (included)

Specifications

Model SHHD2325DG
Motion Orbital, 25 mm
Capacity 22.7 kg
Tray Size (LxW) 18 in x 24 in (45.7 cm x 61 cm)
Control Digital
Drive System Brushless DC Motor;  Triple Eccentric
Calibration Speed calibration
Communication RS232 (Included)
Net Weight 108 lb (49 kg)
Orbit 1 in (25 mm)
Power 120V, 5A, 50/60Hz
Power Consumption 75 W
Safety Certification TUV
Speed Accuracy ±1 rpm, Above 100 rpm ±1% of set speed
Speed Range 20 rpm – 500 rpm
Timer 1 second – 160 hours
Tray Construction Aluminum
Working Environment 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
