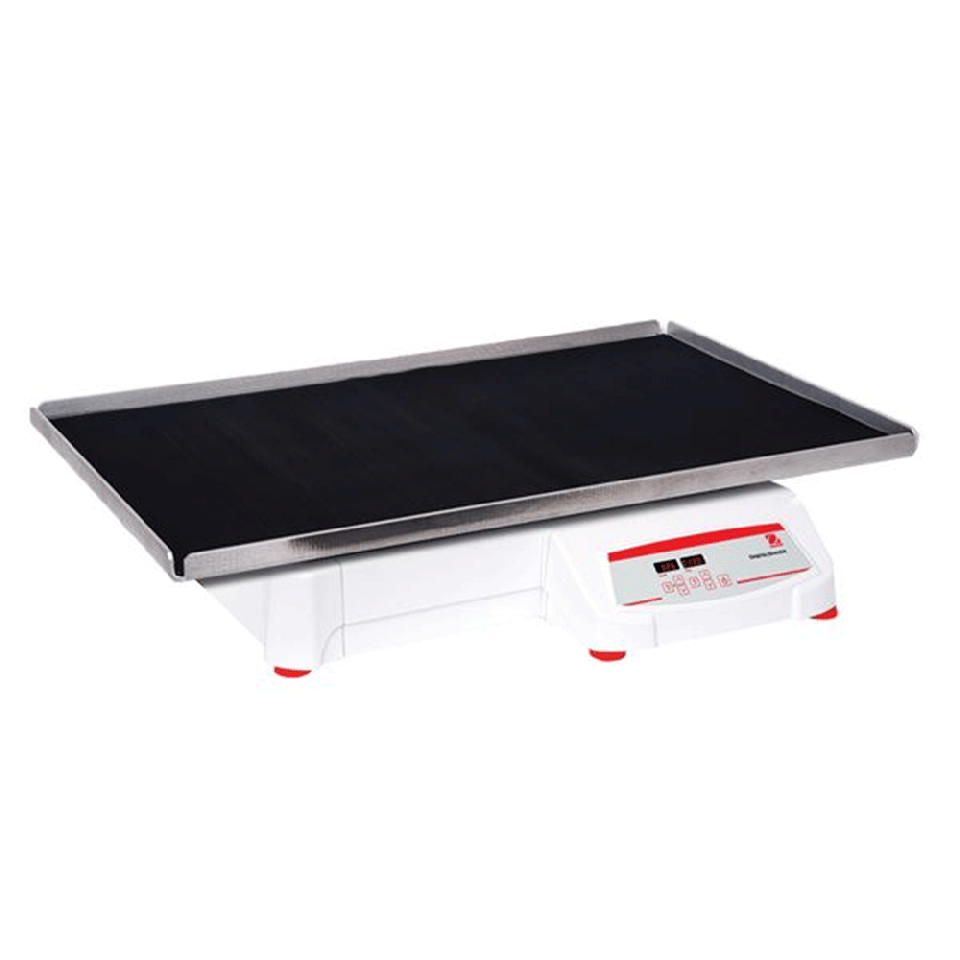

Ohaus SHHD6825DG Heavy Duty Orbital Shaker Model # 30391877


The Ohaus SHHD6825DG has an Accu-Drive system to ensure speed control and accuracy during use. Model # 30391877 has touchpad controls with an LED display making it easy to view speed and time settings at once. This model is equipped with a triple eccentric brushless DC motor that reaches speeds of 15 rpm- 500 rpm; increasing speed slowly to make sure that there are no spills or splatters.

Applications



Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques


Display



Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)


Operation



Detachable 3-wire cord and plug (included)


Communication



RS232 interface provides two-way communication for data logging and unit control (digital models)


Construction



Cold rolled steel (CRS)


Design Features



Built-in tray (11 x 13 inch or 28 x 33 cm) with a non-slip rubber mat (included)




Specifications


Model SHHD6825DG
Motion Orbital, 25 mm
Capacity 68 kg
Tray Size (LxW) 24 in x 36 in (61 cm x 91 cm)
Control Digital
Drive System Brushless DC Motor;  Triple Eccentric
Calibration Speed calibration
Communication RS232 (Included)
Net Weight 229.1 lb (103.9 kg)
Orbit 1 in (25 mm)
Power 120V, 5A, 50/60Hz
Power Consumption 80 W
Safety Certification TUV
Speed Accuracy ±1 rpm, Above 100 rpm ±1% of set speed
Speed Range 15 rpm – 500 rpm
Timer 1 second – 160 hours
Tray Construction Aluminum
Working Environment 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)

Product Data Sheet
