The H401-NIKON-TI-SAM-METAL metal plate is designed for Nikon Ti-SAM attachable mechanical stage.

It creates a temperature controlled surface recessed with respect to the rest of the stage to maintain the original focal plane of the XY stage. It features a trimmed 24 mm diameter circular observation opening for imaging.

It is compatible with oil immersion lenses.

It requires H401-T-CONTROLLER or H401-T-PENNY.


  • This plate does not change the focal plane
  • Circular observation opening: 24 mm
  • Flush with Nikon Ti-SAM attachable mechanical stage
  • Compatible with the following XY stages: Nikon T/Ti-SP+T/Ti-SAM and Ti-SM
  • Temperature range: from ambient to 60°C
  • Accuracy on specimen: ±0.3°C


2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.

External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.

On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.

The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.


  • T - range: from ambient to 60°C
  • T - accuracy on specimen: ± 0.3°C
  • 4.3'' touch screen interface
  • External T - sensor (included)
  • On-board Data logging and download routines to USB drive
  • On-board logging of calibration and alarm events
  • Alarm buzzer and External Alarm Connector
  • One controllers can control independently up to two devices
  • Self calibration routines allow to improve temperature accuracy
  • Password protected procedure for periodic calibration against certified thermometer

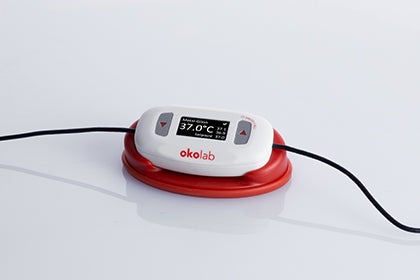

H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.


  • Temperature range: from ambient to 60°C
  • Set point resolution: 0.1°C
  • Calibration via addition of offset
  • Maximum Output: 60 W
  • Dimensions: 83.65x45.05x20.20 mm
  • Weight: 47.50 g
