Okolab OLYMPUS IX3 SVR METAL | Thermal Plate for Olympus IX73/83 Microscope

Regular price $2,524.00
Option
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

H401-OLYMPUS-IX-SUSP-METAL

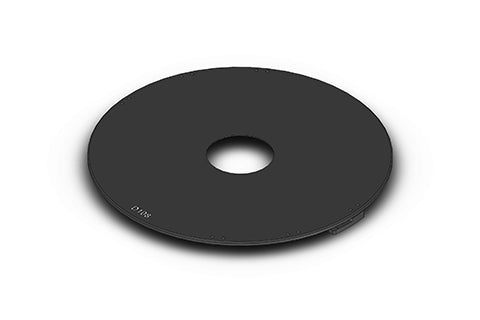

The Metal T Plate creates a warm flat temperature controlled surface perfectly flush with the microscope stage and features a circular observation opening in the center. It employs a surface sensor to ensure the highest accuracy on temperature reading.

It requires H401-T-CONTROLLER or H401-T-PENNY.

Features

  • Flush with Olympus stages: IX-SUSP, GX-SVR, GX-SFR, BX3-SSU, IX2-SFR, IX2-SVL-2
  • Temperature range: from ambient to 60°C
  • Accuracy on specimen: ± 0.3°C
  • Circular observation opening for imaging: 24 mm diameter
  • Easy plate replacement, if necessary

H401-T-CONTROLLER

2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.

External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.

On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.

The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.

Features

  • T - range: from ambient to 60°C
  • T - accuracy on specimen: ± 0.3°C
  • 4.3'' touch screen interface
  • External T - sensor (included)
  • On-board Data logging and download routines to USB drive
  • On-board logging of calibration and alarm events
  • Alarm buzzer and External Alarm Connector
  • One controllers can control independently up to two devices
  • Self calibration routines allow to improve temperature accuracy
  • Password protected procedure for periodic calibration against certified thermometer

H401-T-PENNY

H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.

Features

  • Temperature range: from ambient to 60°C
  • Set point resolution: 0.1°C
  • Calibration via addition of offset
  • Maximum Output: 60 W
  • Dimensions: 83.65x45.05x20.20 mm
  • Weight: 47.50 g
