Olympus Microscope BX45 LED Replacement Kit

Regular price $532.25

Follow Us Online!

Call 919-775-5596 with any questions

For an offical Quote Email us at info@mundaymicroscope.com

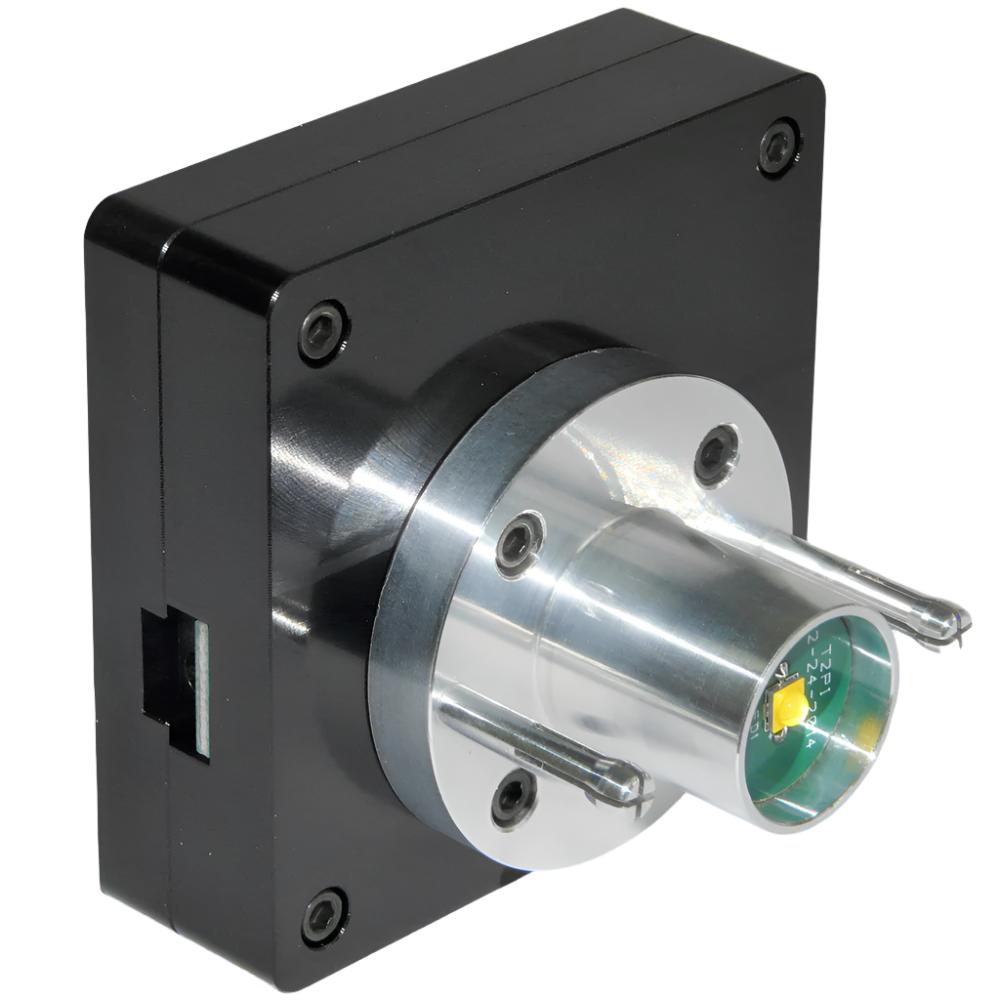

This LED illuminator replaces the original Olympus BX45 illuminator. Provides a whiter, brighter light than the original, while consuming 90% less energy and generating 90% less heat. Intensity control is continuous from 0-100%. Problems with heat damaged bulb sockets, connector and power supply failure are all eliminated. Never change bulbs again. Don’t waste money on a new microscope because of a bad illuminator. Your “old” microscope probably has better optics and mechanics than a new one. You can keep your perfectly good microscope working for a fraction of the price of an inferior new one. Bring your Olympus BX45 microscope up to date. Replace the old BX45 microscope light with a new Nanodyne LED system. All Nanodyne illuminator systems include the power supply and required cables. Everything required for the illuminator is included. Your new Nanodyne illuminator will add decades of useful life to your microscope.

  • Custom-designed to replace the Olympus BX45 illuminator.
  • Remote adjustment on an existing control on the microscope is standard. Brightness control potentiometer on the new illuminator available on request.
  • Easy installation with instructions and most tools provided.
  • All illuminator systems are backed by our 3-year warranty.

Specifications:

  • Illuminator Dimensions: 2.45 x 2.45 x 2.36 inch
  • Power Requirements: 5 to 24V/3.5W
  • Brightness: 410 lm (320 lm prior to 3/22/2017)
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Anodized 6061 T6 Aluminum

Installation Instructions
