Product Overview

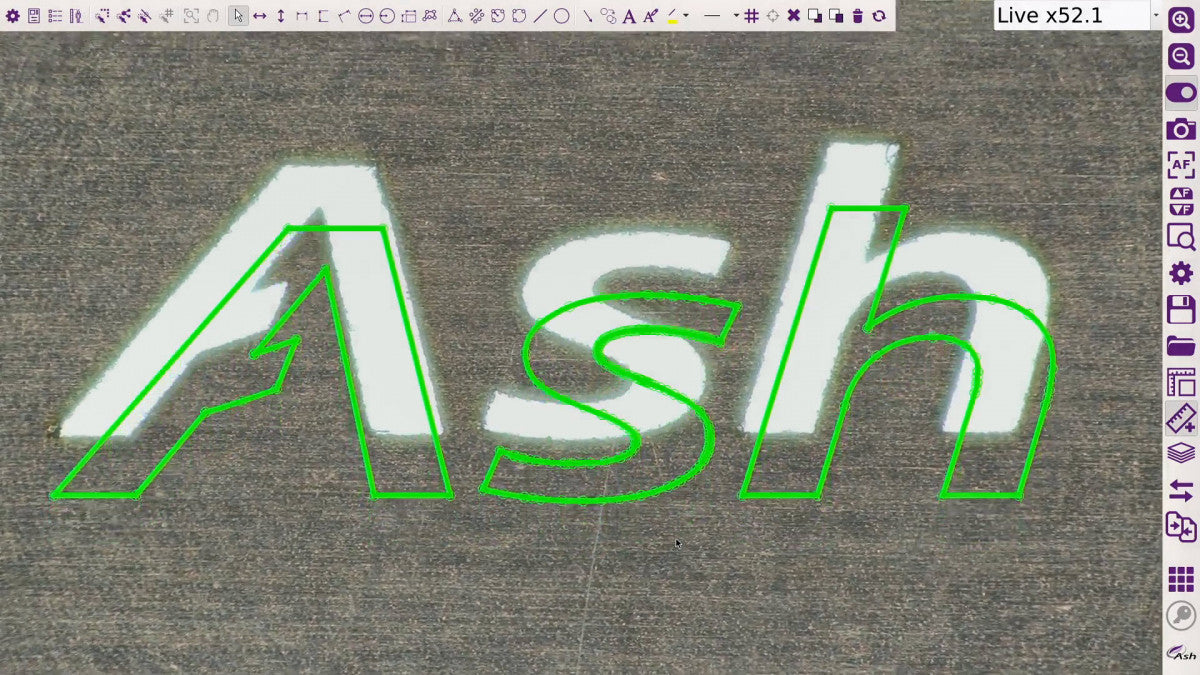

The OMNI DXF Import App allows compatible OMNI inspection systems to import DXF drawings as on-screen graticules for comparison against manufactured parts.
Key Features
- DXF import for inspection templates
- One-button import workflow
- Visual pass/fail comparison
What Is This Product Used For?
- Comparing parts against CAD-derived outlines
- Quality-control inspection
Technical Specifications
| Application | DXF Import |
|---|---|
| Primary function | On-screen graticule from DXF files |
| Compatibility | Confirm OMNI model and software version |
Compatibility & Ordering
Verify your microscope model, installed software and required application licenses before purchasing. Confirm compatibility of this DXF import app with your specific OMNI system.
Manufacturer Resources
UNITRON manufacturer resources
Additional Product Details
Specifications
- Import DXF files to create on-screen graticules
- Accelerates inspections for pass/fail analysis
- Simple 1-button import of DXF files
- Watch a demonstration video at https://youtu.be/T2zKYWWk1Pc
