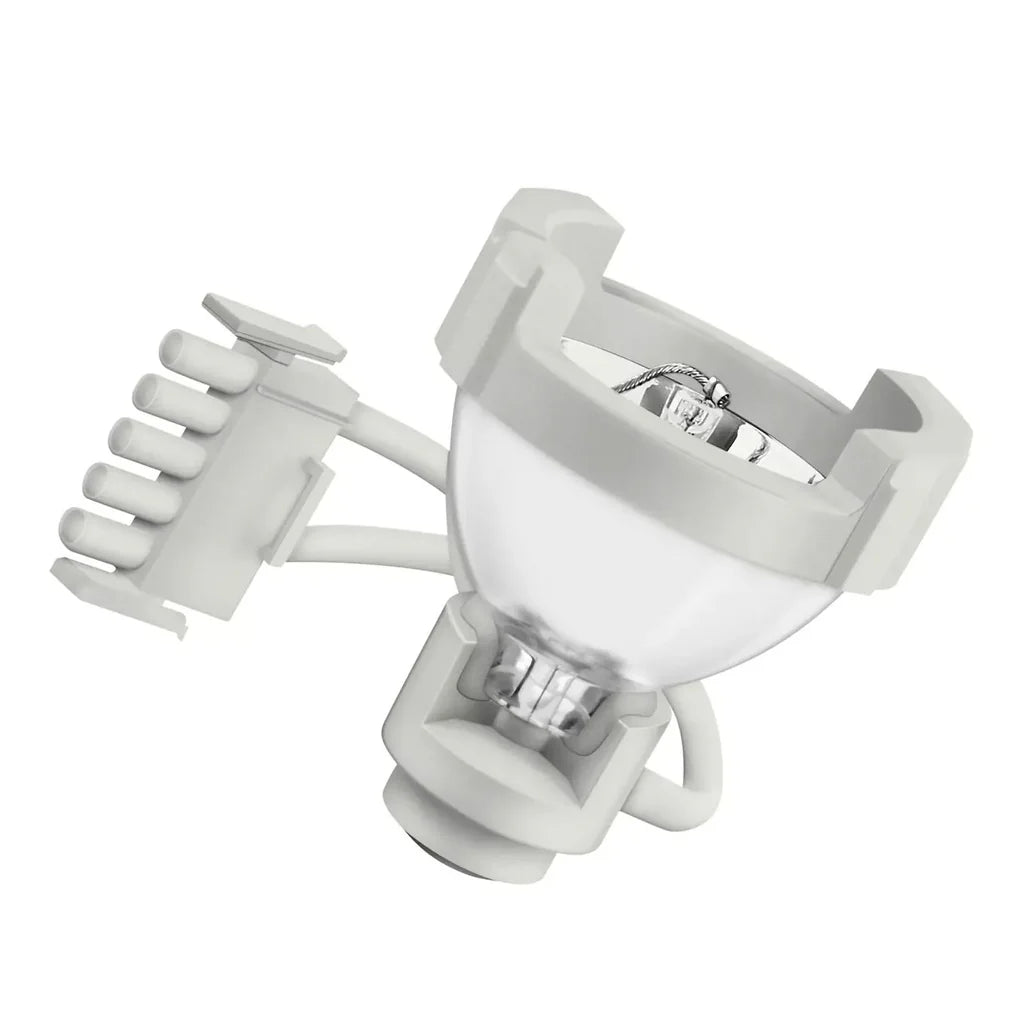

The OSRAM HXP R 120W/45 C VIS mercury short arc discharge lamp is a high-intensity point light source designed for demanding medical, scientific, and industrial applications. Known for its exceptional luminance and broad spectral output across the visible and ultraviolet range, this lamp is an excellent choice for microscopy, fiber optic illumination, and precision analytical systems.

With stable arc performance and strong UV output, this lamp delivers consistent, reliable illumination where accuracy and clarity matter most. It is commonly used in microscopy systems, lab analysis equipment, and fiber illumination devices.

Key Features and Benefits

• High luminance and radiance with an intense point source
• Broad spectral distribution across visible and UV wavelengths
• Excellent performance for microscopy and imaging applications
• High arc stability for consistent illumination
• Hot restart capability for minimal downtime
• Optimized for fiber optic illumination systems
• Suitable for medical, laboratory, and industrial environments

Applications

• Microscopy
• Medical and scientific instrumentation
• Laboratory and analytical equipment
• Fiber optic illumination systems
• UV curing processes
• Industrial inspection and imaging
• Solar simulation

Technical Specifications

• Model: HXPR120W45CVIS
• Manufacturer: OSRAM
• Nominal Wattage: 120W
• Nominal Voltage: 85V
• Current: 1.4A
• Type of Current: AC
• Average Rated Life: 2000 hours
• Luminous Flux: 2800 lumens
• Color Temperature: 9500K
• Beam Angle: 22.4°
• Bulb Type: T67
• Diameter: 67 mm (2.638 in)
• Length: 77 mm
• Maximum Overall Length: 77 mm
• Base Type: Special
• Lamp Finish: Clear
• Arc Working Distance: 45 mm
• Operating Position: p 20
• Hot Restart: Yes
• Family Brand: HXP
• Classification: Class C (gas)

Compliance and Safety

• California Prop 65: Yes
• Contains Mercury

Why Choose This Lamp
The OSRAM HXP R 120W/45 C VIS is a trusted solution for users who need powerful, stable, and precise illumination. Whether you're working in microscopy, lab analysis, or industrial inspection, this lamp provides the brightness and spectral range required for high-performance results.

Ideal for replacing existing HXP series lamps or upgrading your current illumination system.
