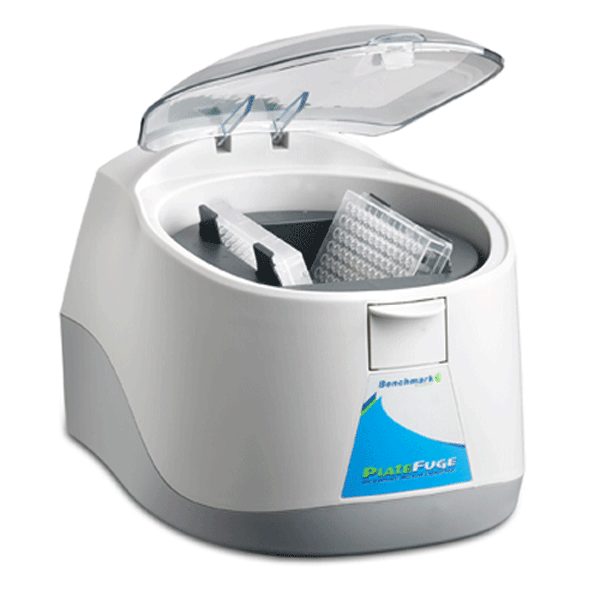

PlateFuge MicroCentrifuge with swing-out rotor 115V Model # C2000
Benchmark's PlateFuge™ is the first "mini" sized centrifuge with a swing out rotor for microplates. Centrifuging plates before PCR ensures all reactants are in the bottom of the wells for proper concentrations and improved yields.In spite of its remarkably small footprint (9×10 in.), the PlateFuge™ includes a uniquely designed, swing out rotor (patent pending) capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be inserted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force "swings" the plates into a horizontal position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.
With a g-force of 600 xg, most samples can be spun down in less than 20 seconds. To end a run, simply open the lid and the automatic, electric brake brings the rotor to a quick, smooth stop in just 4 seconds. Plates can then be easily removed from the rotor.- Quickly spins down droplets in PCR plates
- Unique swing-out rotor design prevents spillage (Patent Prnding)
- Half the size of traditional centrifuges
- Accepts all popular types of PCR plates
| Speed: | 2,550 rpm / 600 xg |
| Capacity: | 2 x PCR Plares* 2 x Microplatess 24 x 0.2ml PCR strips |
| Deceleration: | 4 sec. |
| Dimensions: (w x d x h) | 9.2 x 10.2 x 7.75 in. 23 x 26 x 19.7 cm |
| Weight: | 9 lbs. / 4 kg |
| Electrical: | 115V, 60Hz or 230V, 50Hz |
| Warranty: | 2 Years |
| *When stacking skirted PCR plates, max. capacity is 4 plates. |
Additional parts may be required. Please refer to brochure and request a quote
