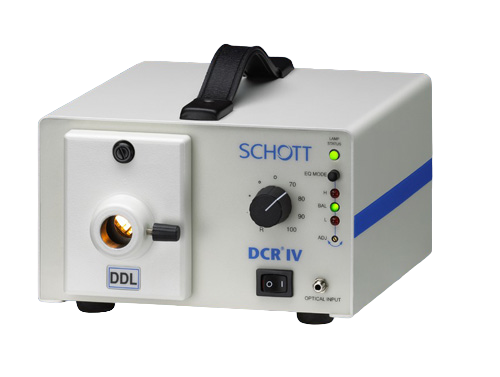

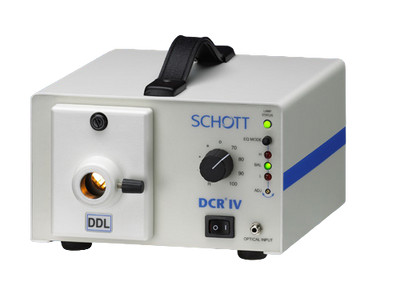

Schott DCR IV Fiber-Optic Illuminator | A20890

The DCR®IV includes all the standard features of the DCR®III Plus light source, plus an integrated equalizer. A light feedback loop is integrated into the equalizer to provide stabilized light output for the most demanding machine vision applications.

Features:

• Remote controllable using built-in integrated RS232 interface
• Designed to control up to three additional DCR III units via a built-in 15-pin connector. Expansion cable and DCR III light sources are sold separately.
• Enhanced communications available by embedding error-checking codes in command strings
• Easy programmability with simple command structure
• DC-regulated light source limits light fluctuation due to line voltage variation up to ±0.5%.
• Current limiting circuitry protects the unit from overheating due to defective and aging bulbs.
• Lamp change indicator light - The LED on the front panel changes color from green to red when the lamp requires replacement. The lamp status output on RS232 is available.
• Solid state intensity control adjusts light output from 0 to 100%.
• Interchangeable Modulamp units offer two lamp positions to maximize individual lamp efficiencies.
• Soft start “lamp saver” circuitry
• IR filter for cool illumination
• CSA certified to UL, CE compliant to low voltage and EMC directives
• Universal input voltage – accepts 90 to 265 VAC, 50/60 Hz

Brochure
