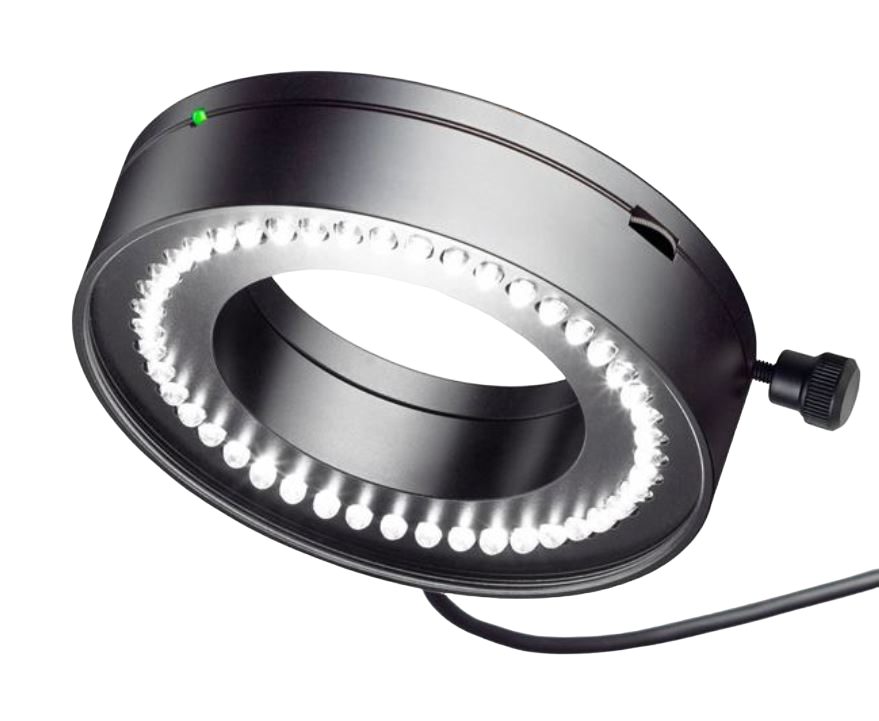

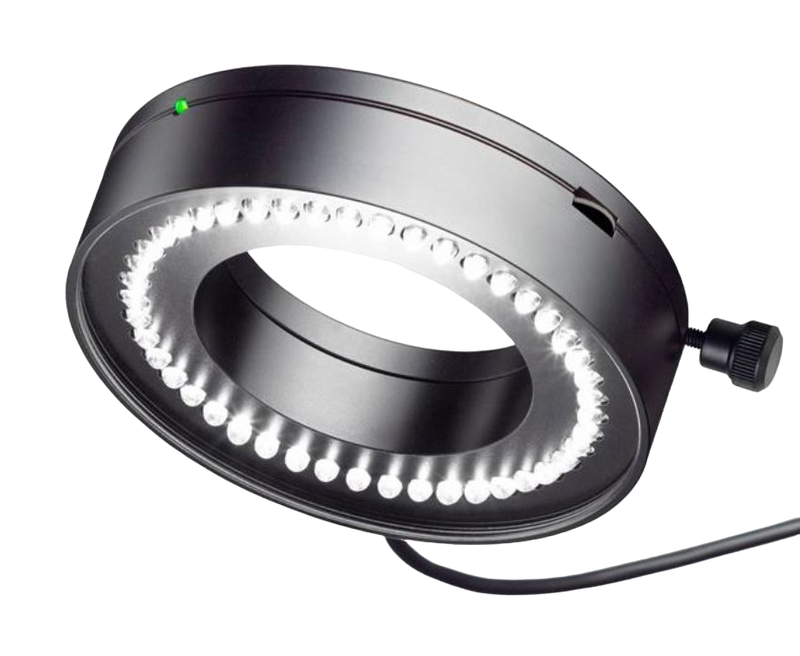

The EasyLED is a robust and straightforward design. Unlike cheap plastic illuminators, EasyLED delivers homogeneous and shadow-free illumination in rugged anodized metal housing and a well-designed heat sink.

The EasyLED Ringlight Plus System (600.300) has the advantage of controllable segments to enable new contrasting methods. At the same time, the integrated ‘jog dial’ element provides simple and intuitive switching between illumination modes and rotation of the segments in both directions.

The simple 600.200 and the Plus 600.300 EasyLED system are 66mm I.D. to fit most microscopes. If you want a perfect fitment for your specific microscope, measure the bottom lens where the ring light connects and select the option to add a ring light adapter for 58mm or 60mm.

If you don't have the bench space for a traditional fiber optic illuminator or want simple, reliable LED illumination, the Schott EasyLED system is a great choice. If you need assistance with the correct adapter for your microscope, please contact us, and we can assist you.

Features & Benefits:

• Consistent color temperature (daylight) approx. 5600K
• 50K Hour Lifespan
• Energy Efficient LED
• Silent Operation, completely without noise or vibration
• Robust Anodized metal housings
• Working Distance 55-135 mm
• 45 high-brightness LED's
• Fits microscope objectives 66 mm/adapters available for 58mm & 60mm Objectives
• Integrated controller for continuous dimming (0-100%) and separate on/off switch
• Large working distance: 50mm - 135mm
• maximum illuminance: 90 lx (at 75 mm WD)
