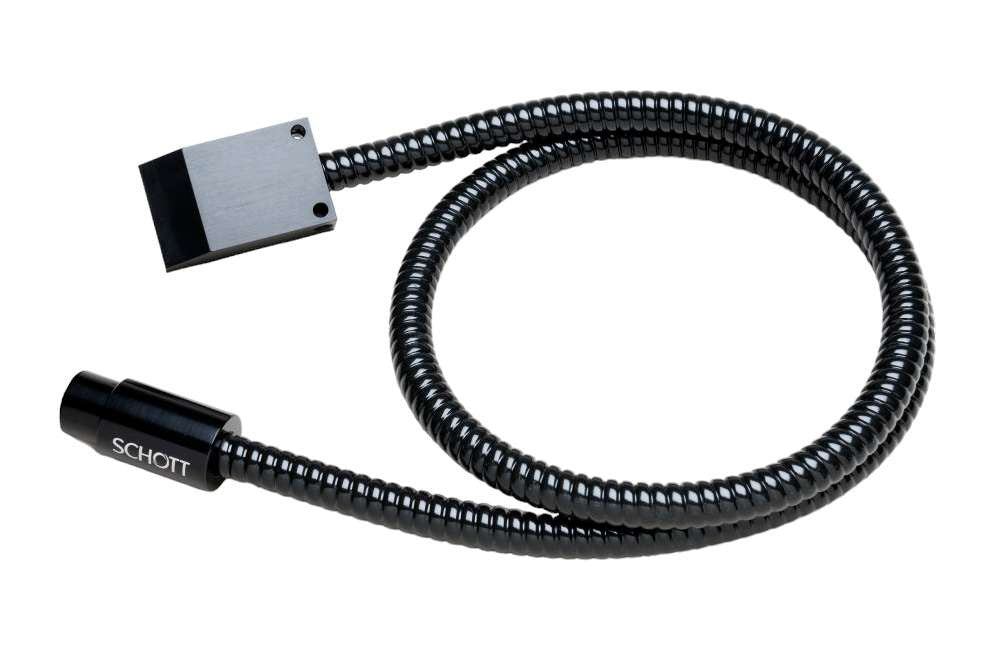

Schott Lightline 2.0" x .035" | A08589

Features:

• Alternative to a fiber optic bundle for more precise illumination in Microscopy and inspection applications.
• Calibrated with DDL-bulb to a specified number of grayscale levels (see chart) at a mean of 200 with a gamma setting of 1.0 to deliver optimum uniformity (See the reference section for more information on the uniformity of fiber optic products)
• The assembly method accurately positions the fiber line within the body on all three planes to a tolerance of ± .004”(0.1)† assuring the fiber axis will be parallel with the mounting surface of the body
• Rugged aluminum body and light source ferrule with black anodized finish, PVC-covered metal tubing protects the fiber bundle
• Lightline holders and support products available
• Custom lengths, bundle exits, multiple combinations (dual, quad, etc.), and line widths can be designed for your unique requirements. Please get in touch with us for custom order quotations.
• Cylindrical and apertured lenses are available for most lighting models (Made-to-Order)
