Schott MC-LS LED Light Source – Microscope Light Supply

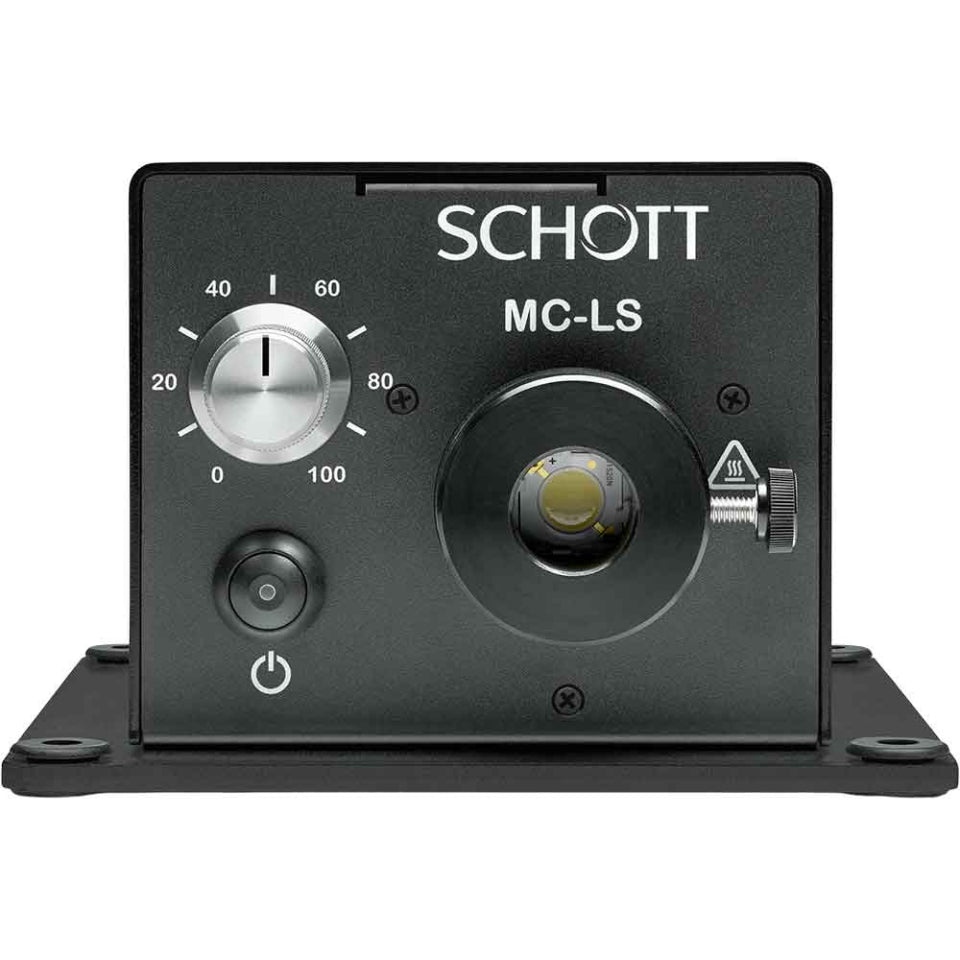

The Schott MC-LS Microscopy LED Light Source (SKU: A20990) is a high-performance illumination system engineered for stereo microscopy, material analysis, and machine vision applications. With a stable 5400K color temperature, superior light output, and up to 50,000 maintenance-free operating hours, it delivers professional-grade illumination with unmatched reliability.

Key Features:

• Consistent 5400K color temperature ensures true-to-life imaging


• High-efficiency LED engine with low 60W power consumption


• Delivers up to 850 lumens—10% more output than EKE halogen sources*


• Continuously dimmable brightness via built-in potentiometer


• Eliminates “halogen glow” and color shifting at lower intensities


• 50,000-hour lifespan minimizes downtime and operational costs

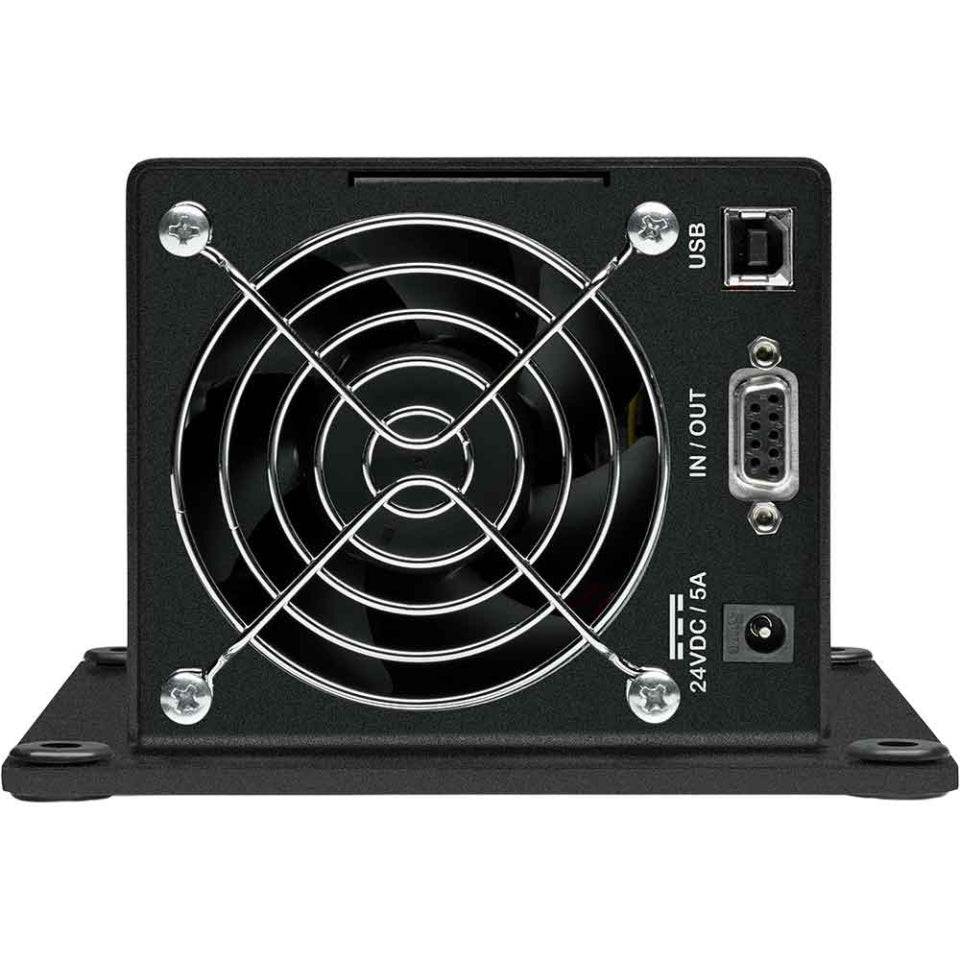

• RS232, USB, and 9-pin analog ports for full digital remote control

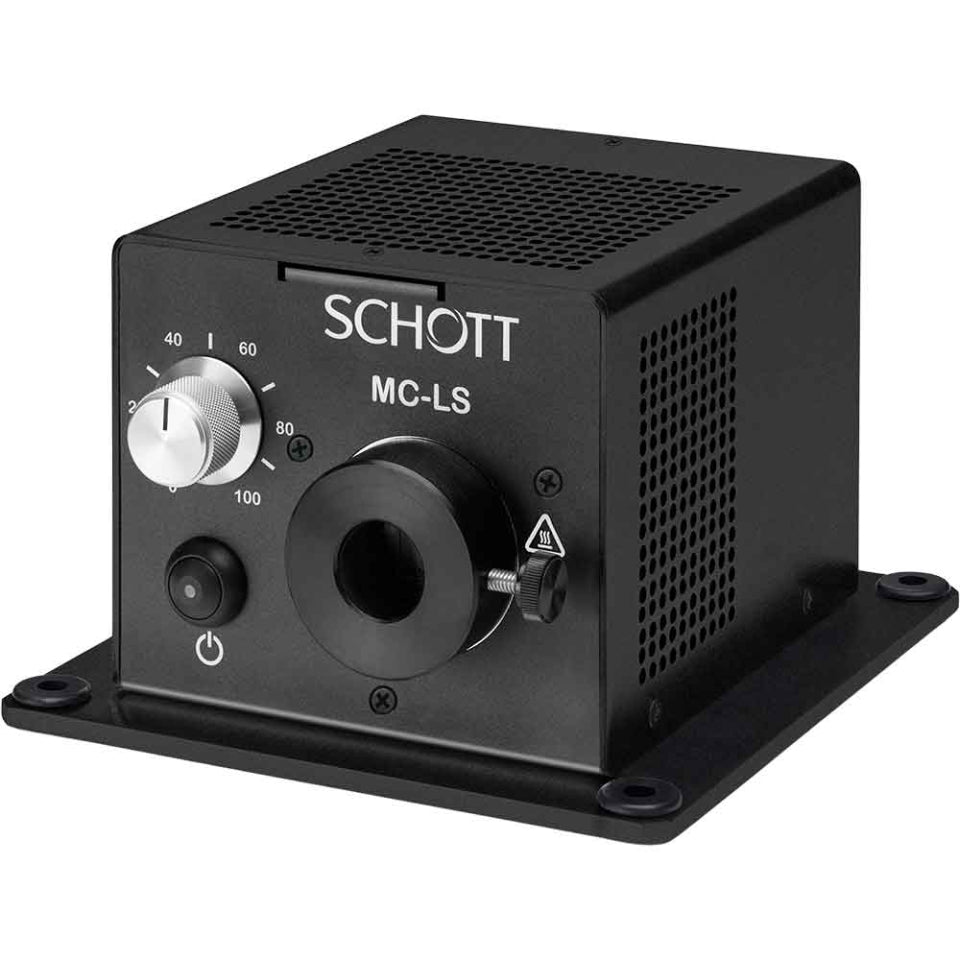

• Compact, vibration-resistant metal housing for industrial settings


• Low-noise fan ensures quiet, ergonomic work environments


Advanced Control & Compatibility:

The MC-LS supports remote operation with RS232, USB, and analog interfaces, making it perfect for integration into automated systems. You can easily control brightness, power, and monitor operational data remotely—streamlining lab or factory workflows.

This light source is fully compatible with all SCHOTT ColdVision fiber optic light guides, offering a flexible range of configurations to meet diverse optical requirements.

Robust Industrial Design:

With a compact footprint, durable metal chassis, and integrated cooling system, the MC-LS provides quiet, efficient, and shock-resistant performance. It replaces earlier models like the ACE and DCR while offering higher output and more sophisticated control.

Specifications:

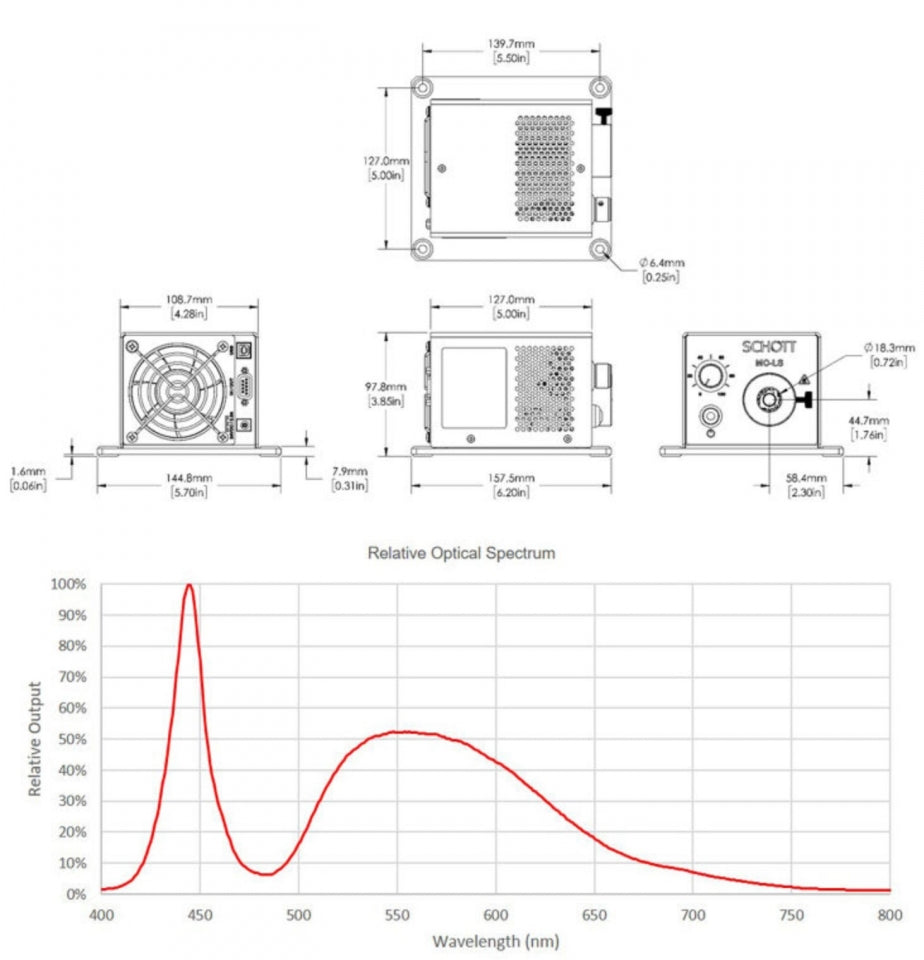

• Dimensions: 158 × 145 × 98 mm (6.2" × 5.7" × 3.9")


• Weight: 2.0 kg (4.62 lbs)


• Input Power: 100–240VAC, 50/60Hz, 1.5A


• Color Temperature: 5400 K


• Light Output: Max 850 lm*


• Operating Temp: 0°–40°C (32°–104°F)


• Certifications: ETL Approved, RoHS Compliant


Compared at SCHOTT ColdVision fiber guide, 13mm active Ø, 1m length, at 23°C ambient.
