Schott Ring Programable, Multifunction Controller | 400.000

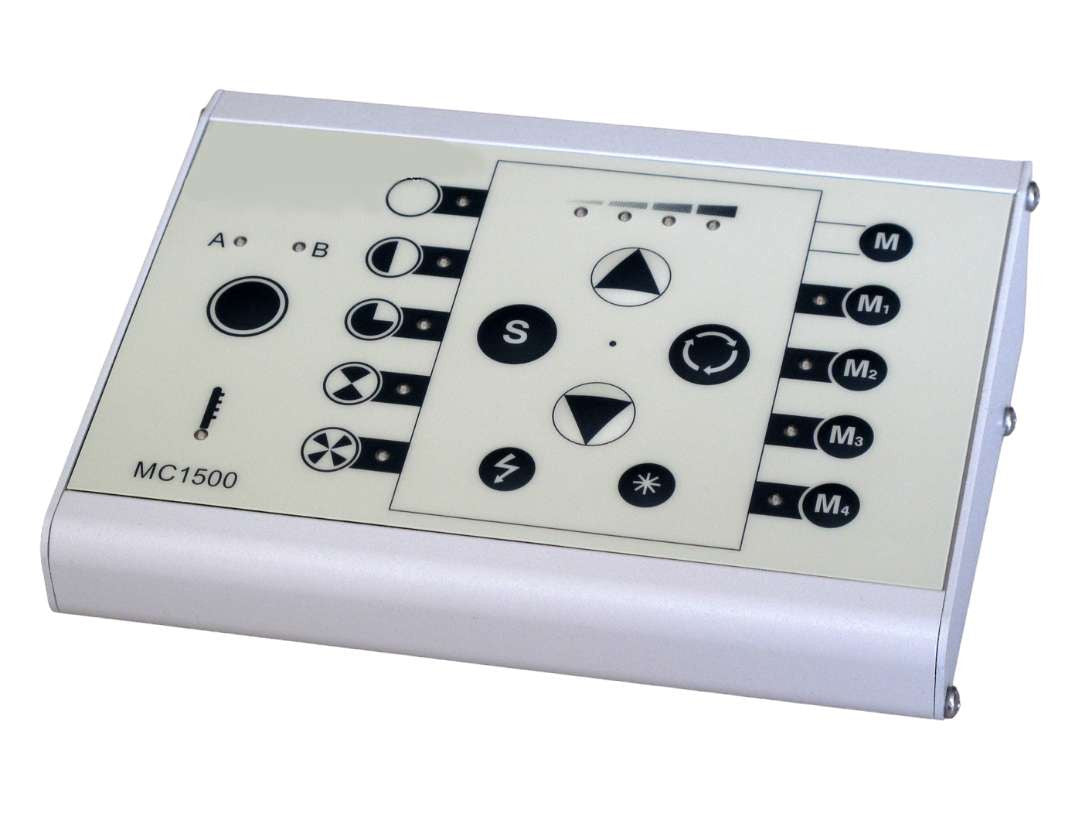

SCHOTT 400.000 VisiLED MC 1500 Programmable, Multi-function Controller

SCHOTT VisiLED is a two-part system for LED illumination in Microscopy. The first part is the controller, which is required and used for all VisiLED Lightheads.

The MC1500 is the more advanced controller within the VisiLED system. It controls up to two illuminations simultaneously and thus offers an effortless combination of any VisiLED light heads.

The MC1500 allows variable illumination parameters, including light intensity, different segment modes, and changes in illumination direction. Additionally, the controller offers rotating, strobing, external triggering, or flashing of the LED light. This ensures constant mixed light characteristics through synchronized control of the connected VisiLED Light heads.

• five preset segment modes plus rotation for optimum contrasting.
• Smooth dimming with overdrive position.
• four memory positions to save custom lighting modes.
• External Trigger: to start a single strobe.
• Flash mode: to overdrive continuous set intensity with a short flash for taking photographs.
• Strobe mode: To utilize an internal strobe function with frequencies between 15 Hz and 5 KHz.

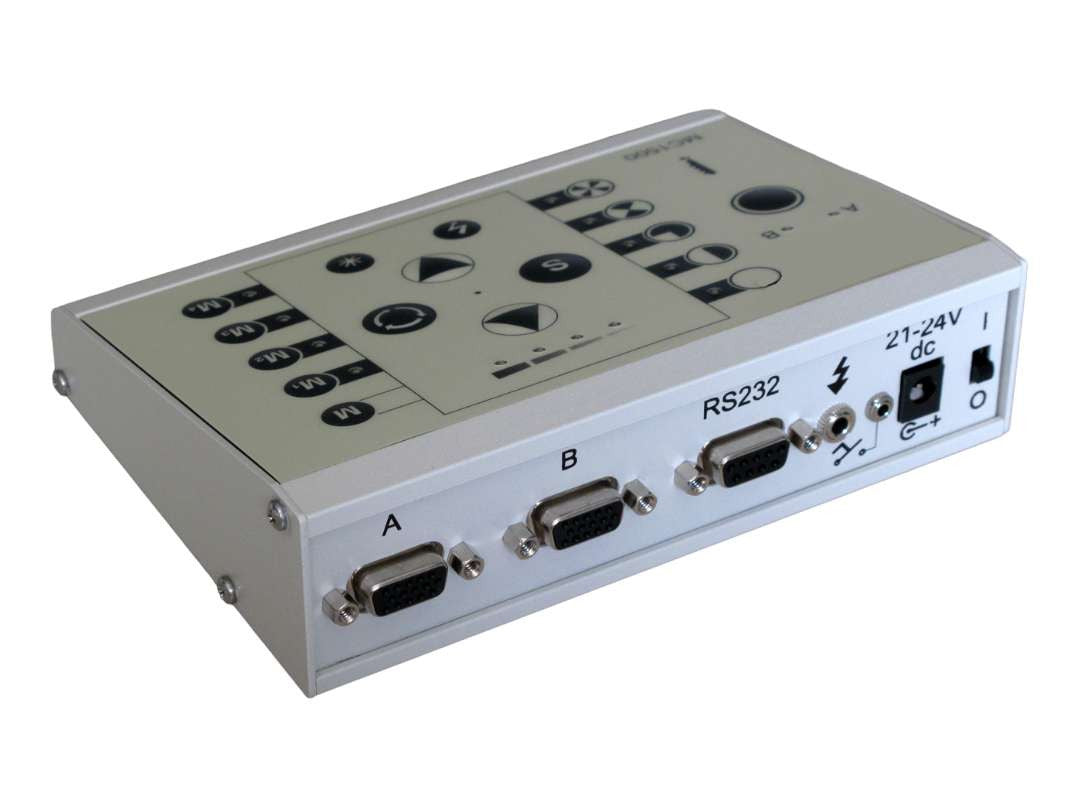

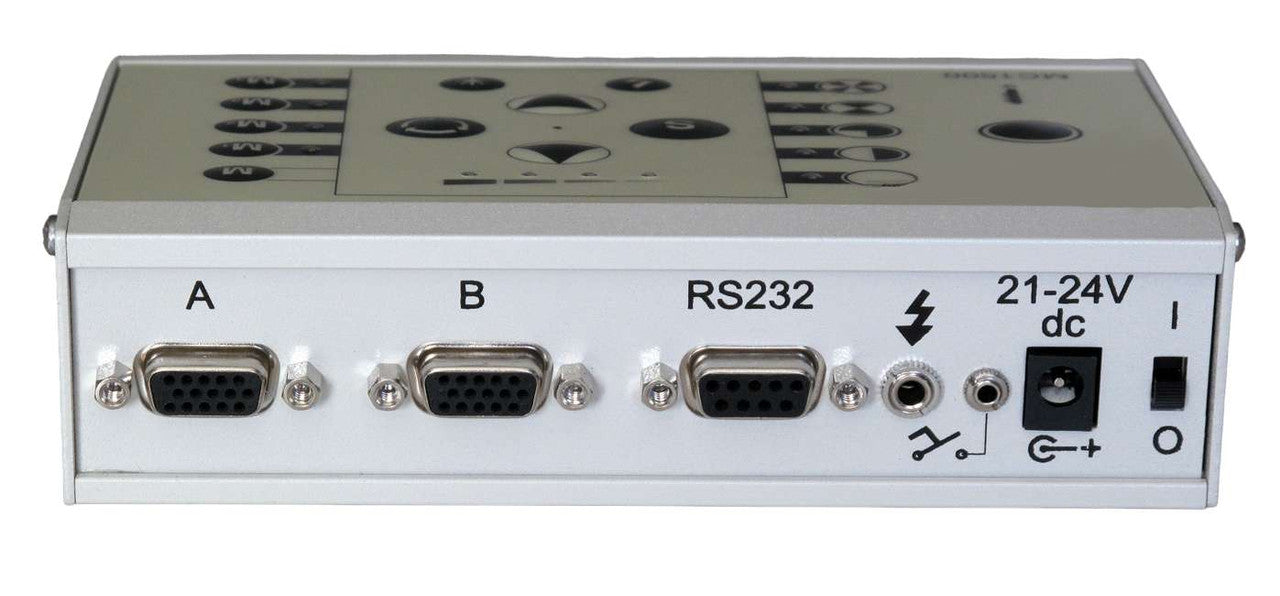

• RS 232 Computer interface (USB 1.1 optional) to set parameters via computer.
• Foot switch between memory positions (optional).
• Manufactured in the EU.
