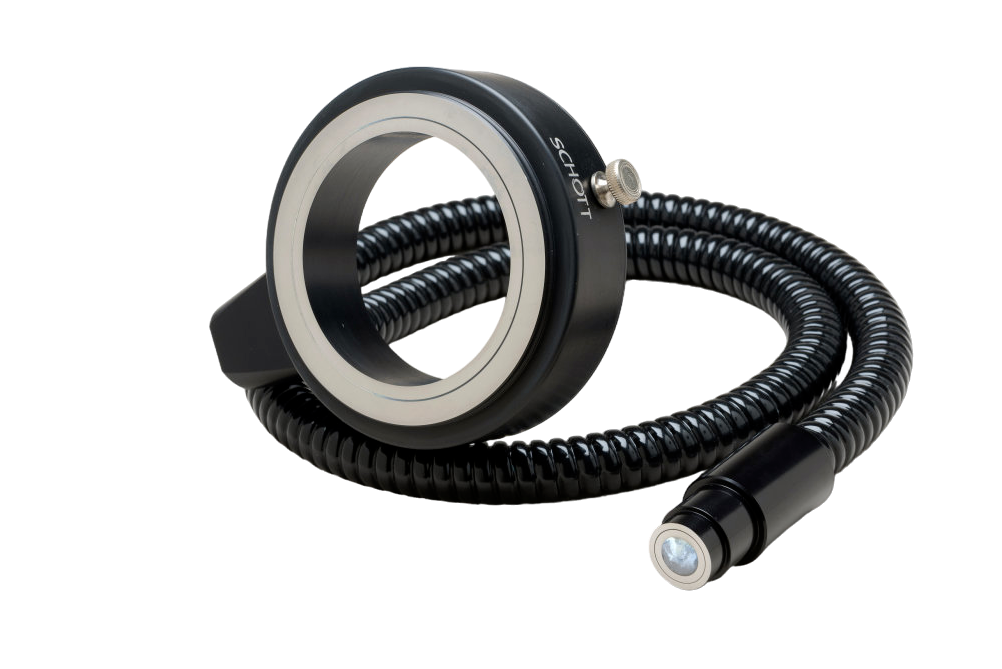

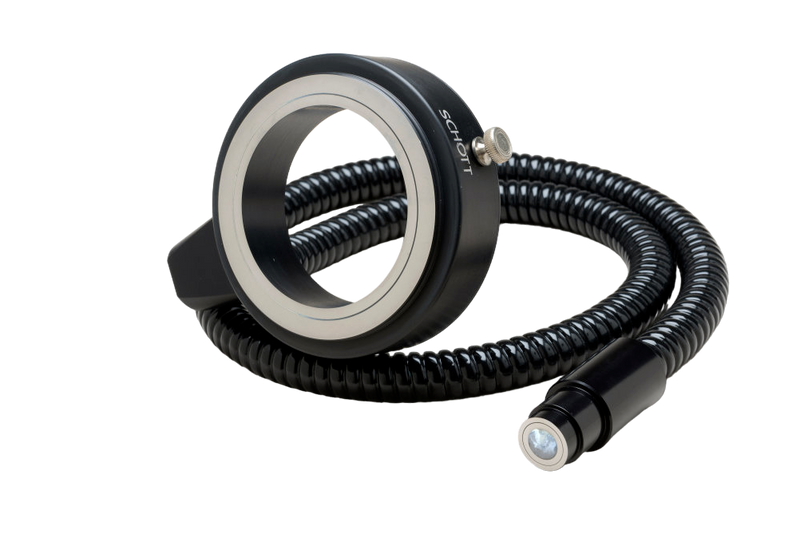

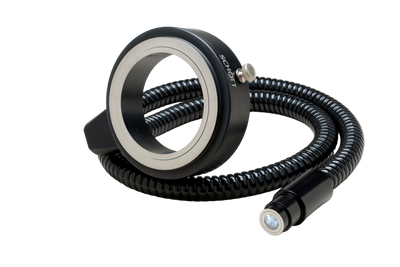

Schott Ringlight Leica S4E/S6E | A22050

Features:

• Vertical exit bundle increases work space and prevents the bundle from interfering with surrounding objects
• Retaining ring mounting for the A22040 ringlight offers secure positioning
• 33” (838) bundle length on all models, working distance is 1.5” to 6” (38 to 152mm)
• ESD ringlights are made conductive by replacing the black anodized finish with a conductive finish and the PVC metal tubing with stainless steel tubing
• Each ringlight is checked for conductivity from inner body to light source adapter (Available custom)
• Thumbscrew clamping/mounting system for precise positioning (except for model number A22040), ringlights fit directly onto most microscope and camera objectives without adapters
• Input fits all ColdVision light sources such as ACE, DCR & CV-LS
• Ringlights can be used with other manufacturer’s continuous light sources (Adapters may be required)
• Use ringlights with our dichroic color filters, diffusers, polarizer/analyzers and reflector rings for alternative lighting effects
• Ringlights fit 66 mm microscope and camera objectives, with options such as a tapered inner-body ringlight for the Nikon SMZ 645/600 microscopes (See A22040 model)

• Clamp rings for the Universal Ringlights also fit the 66 mm ringlights for use with a different diameter microscope objectives or with the ringlight holder (See the Support Apparatus for ringlights section
