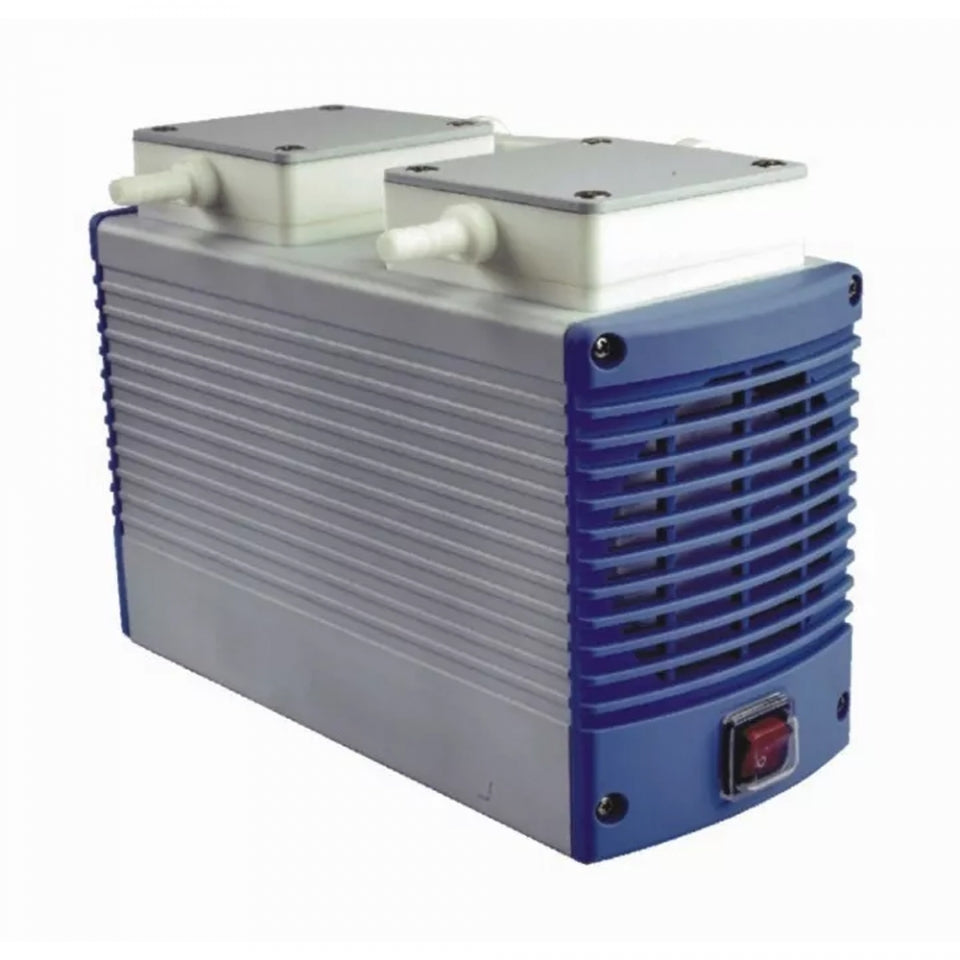

Scilogex Chemical Resistant Vacuum Pump Model # 18200745
The Scilogex PTFE Chemical Resistant Pump is chemical duty vacuum pumps that can be used in various applications and is ideal for use with Rotary Evaporators. All wetted parts are made of PTFE material and the outer case is processed with squeeze-casting aluminum and anti-rust treatment. An air driven diaphragm and oil-free design will lower both cost and maintenance time.
- Acid, Alkali & Organic Vapor Resistant
- Compact Size & Space Saving CE Approved
- Low Noise Level @ 50dB
- Various Filtration Applications
- Gel Drying, Blotting after Electrophoresis
- Centrifugal Evaporator
- Solid-Phase Extraction (SPE)
- Maximum Power Consumption 90 Watts (110V); 95 Watts (220V) Maximum Current 1.3 Amps (110V); 0.6 Amps (220V)
- Maximum Flow Rate 38 lpm (110V); 34 lpm (220V)
- Maximum Vacuum 600 mm Hg (79 kPa)
- Maximum Pressure 30 psi
- Motor Rotation 1700 rpm (110V); 1450 rpm (220V)
- Capacitor 8µf/250V (110V); 4µf/400V (220V)Horse Power 1/6 hp
- Pole 4P
- Net Weight 15 lbs (7 kg)
- Gross Weight 16 lbs (7.4 kg)
- Dimensions (l x w x h) 11 x 4 x 8-inches (280 x 112 x 210mm)
- Port Thread 5/16"
- Noise Level 50dB
