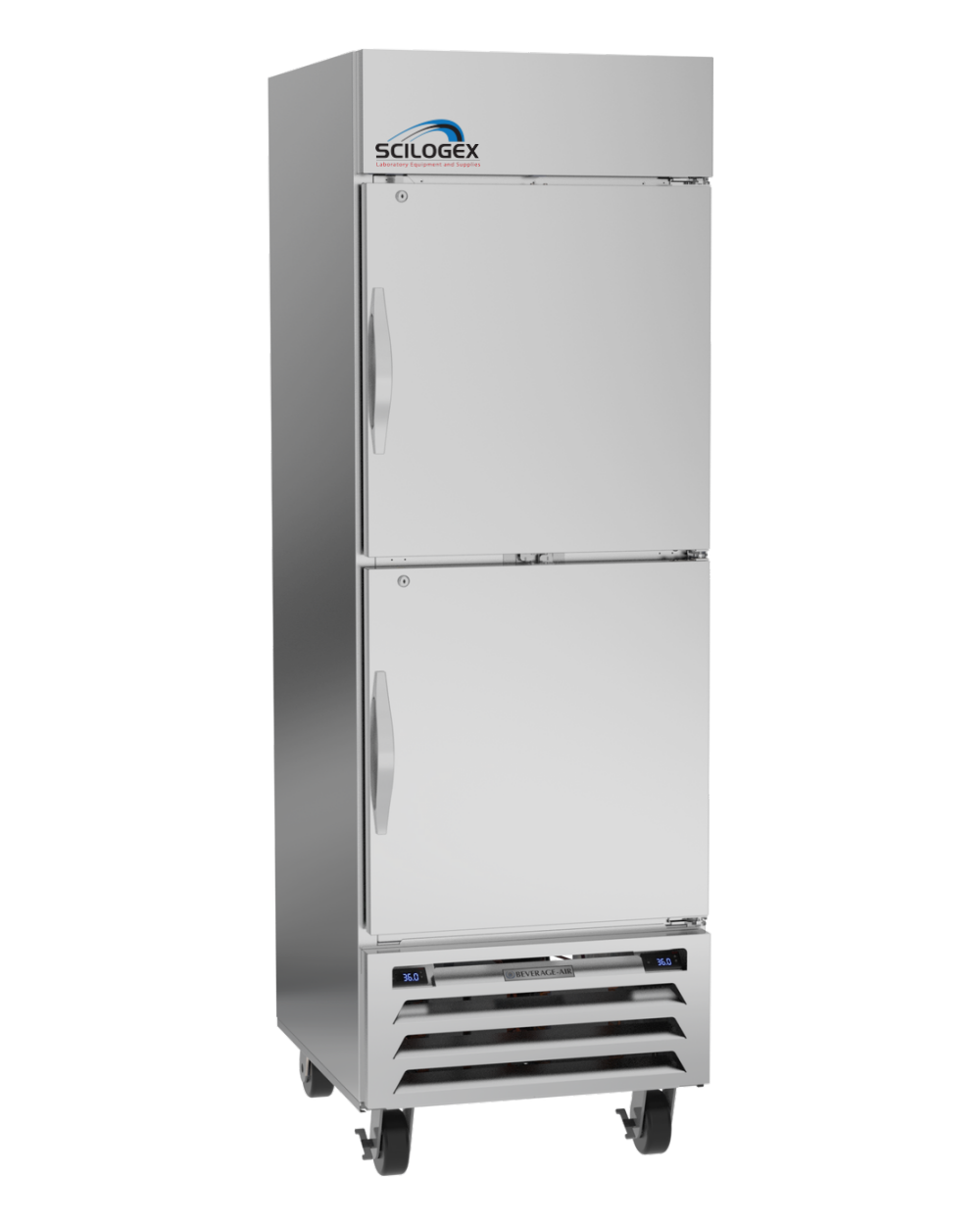

Scilogex Laboratory Refrigerator/Freezer Combination Units | So-Low

Name: Scilogex Laboratory Refrigerator/Freezer Combination Units | So-Low
Brand: Scilogex
SKU: DH-10RFC
Price: 5245.00 USD
Availability: InStock

$5,245.00

More payment options

CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Units come standard with microprocessor digital controller, audible and visual alarms, alarm relay contacts, casters, locking doors and 2 year parts and labor and 5 year compressor warranty.

Product Specifications:

Model	DH-10RFC	DH-20RFC	DH-20RF	DH-48RF	DH-70RF
Capacity[ Cubic Feet]	10.2 Cu. Ft.	18.33 Cu. Ft.	18 Cu. Ft.	48 Cu. Ft.	70 Cu. Ft.
Capacity[ Liters ]	289 Liters	519 Liters	514 Liters	1358 Liters	1998 Liters
Dimensions	[ W x D x H ]
Exterior [ Inches ]	25.5" x 25.75" x 72.75"	36" x 29.25" x 77.75"	27.5" x 34" x 81.5"	52" x 34.75" x 81.5"	78" x 34.75' x 81.5"
Exterior [ Centimeters ]	75 x 65 x 185	91 x 74 x 197	70 x 86 x 207	132 x 88 x 207	198 x 88 x 207
Fridge Interior [ IN ]	23" x 20" x 26"	29.5" x 24" x 29"	28" x 28" x 20"	22" x 28" x 60"	48" x 28" x 60"
Freezer Interior [ IN ]	19" x 18" x 19"	25.5" x 22" x 22.25"	28" x 28" x 20"	22" x 28" x 60"	28" x 28" x 20"
Fridge Interior [ CM ]	60 x 51 x 67	75 x 61 x 74	71 x 71 x 50	55 x 71 x 152	121 x 71 x 152
Freezer Interior [ CM ]	50 x 46 x 51	65 x 56 x 57	71 x 71 x 50	55 x 71 x 152	71 x 71 x 50

Temperature Specifications:

Model	DH-10RFC	DH-20RF
Refrigerator	2°C to 8°C 35°F to 46°F
Refrigerator	2°C to 8°C 35°F to 46°F
Freezer	-10°C to -26°C 14°F to -14.8°F	0°C to -23°C 32°F to -10°F

Electrical Specifications:

Voltages Available: 115 Volts 60 Hertz 1 Phase
2 Running Amps: 15 Amp Dedicated Line
1.85 Running Amps
NEMA Configuration: NEMA 5-15
Certification(s): UL Listed

Control Specifications:

Model	DH-10RFC	DH-20RFC	DH-20RF	DH-48RF	DH-70RF
Temperature Control	Two Digital Displays [ Freezer / Refrigerator ]
Min / Max Temperature	Display and Reset
Temperature Alarm	Audible High / Low Alarm
Alarm Types	Door Ajar, Power Failure, Low Battery, Sensor Failure, USB Failure
Data Logging	Adjustable Intervals
Data Download	Via USB. PDF Format
Backup Battery	Only Powers Alarm
Alarm Relay	Dry Contacts

General Specifications:

Model	DH-10RFC	DH-20RF	DH-48RF	DH-70RF
	REFRIGERATOR
Defrost	Automatic
Air Circulation	Direct	Gravity Flow
Compressor(s)	Hermetic Compressor
Refrigeration	R600a	R290
Insulation	US EPA Approved SNAP Approved
Opening	1 Front Door
Opening Type	Hinged
Door Material	Insulated Steel Viewing Window		Insulated Steel
Lockable Door	Lockable with Padlock	Keyed Lock
Access Porthole	1" Diameter	1/2" Diameter
Storage	3 Adjustable Shelves
Exterior	Painted Steel	Stainless Steel
Interior	Stainless Steel
Casters	4	4 Locking		6 Locking
Leveling Legs	4	N/A
Warranty	2 Years Parts and Labor	3 Years Parts and Labor Additional 4 Years on Compressor Parts

Model	DH-10RFC	DH-20RFC	DH-20RF	DH-48RF	DH-70RF
	FREEZER
Defrost	Automatic
Air Circulation	Forced Air		Gravity Flow
Compressor(s)	Hermetic Compressor
Refrigeration	R600a			R290
Insulation	US EPA Approved SNAP Approved		Polyurethane
Opening	1 Front Door				1 or 2 Front Door(s)*
Opening Type	Hinged
Door Material	Insulated Steel
Lockable Door	Lockable with Padlock		Keyed Lock
Access Porthole	1" Diameter		1/2" Diameter
Storage	3 Fixed Shelves	2 Adjustable Shelves		3 Adjustable Shelves
Exterior	Painted Steel		Stainless Steel
Interior	Painted Steel		Stainless Steel
Casters	4		4 Locking		6 Locking
Leveling Legs	N/A
Warranty	2 Years Parts and Labor		3 Years Parts and Labor Additional 4 Years on Compressor Parts
