Scilogex Laboratory Refrigerators | So-Low

Regular price $3,250.00
Model
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

Laboratory and Pharmacy refrigerators comes standard with microprocessor digital controller, audible and visual alarms, alarm relay contacts, power failure relay, 1/2" access port, locking doors, casters, and 3 year parts and labor and 5 year compressor warranty.

Product Specifications:

Model Capacity
[ Cubic Feet ]
Capacity
[ Liters ]
Temperature Range [ °C ] Temperature Range [ °F ] Exterior
[ Inches ]
Interior
[ Inches ]
Exterior
[ Centimeters ]
Interior
[ Centimeters ]

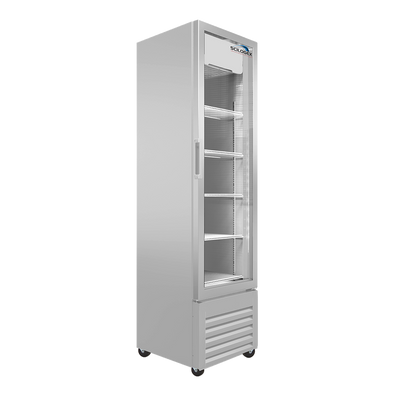

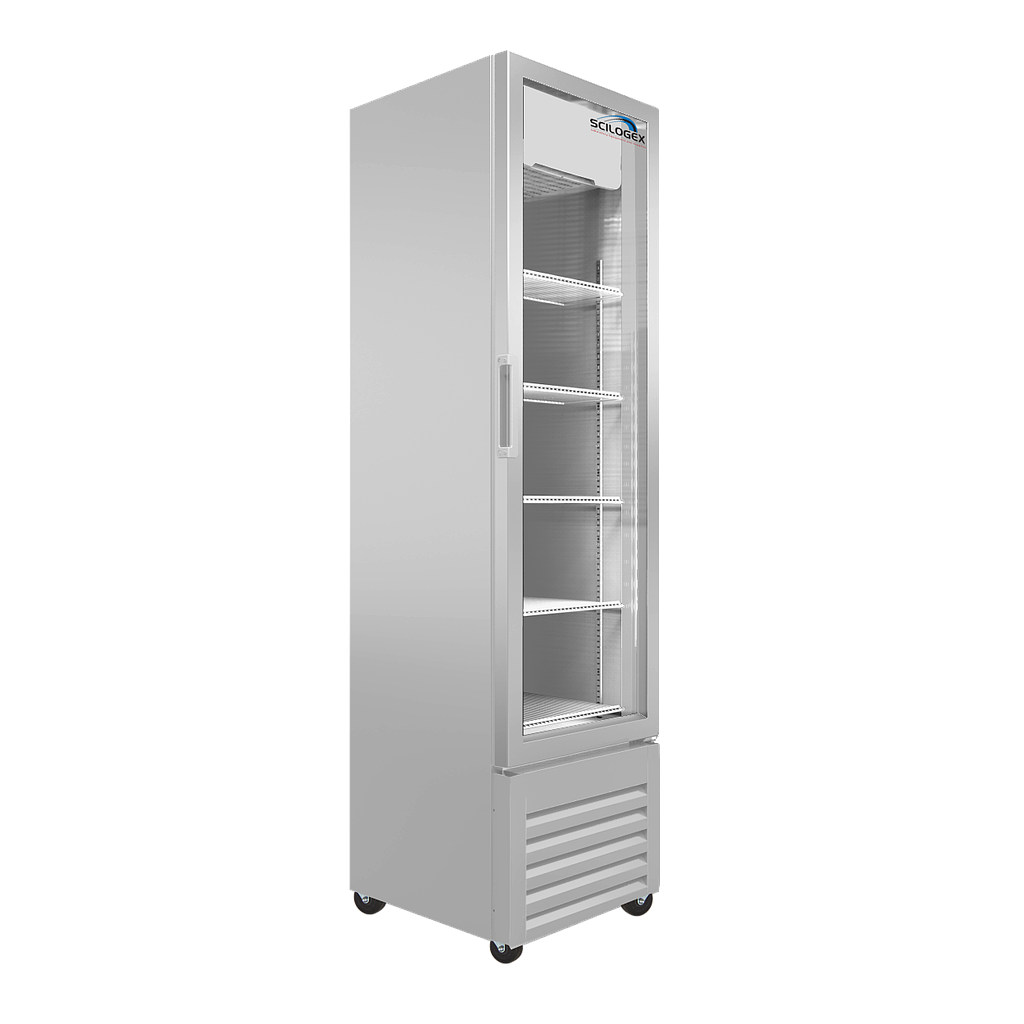

DH4-8GD 8 Cu. Ft. 226 Liters 2°C to 8°C 36°F to 46°F 19" x 21" x 74.5" 15.75" x 14.5" x 53" 48 x 53 x 189 40 x 36 x 134

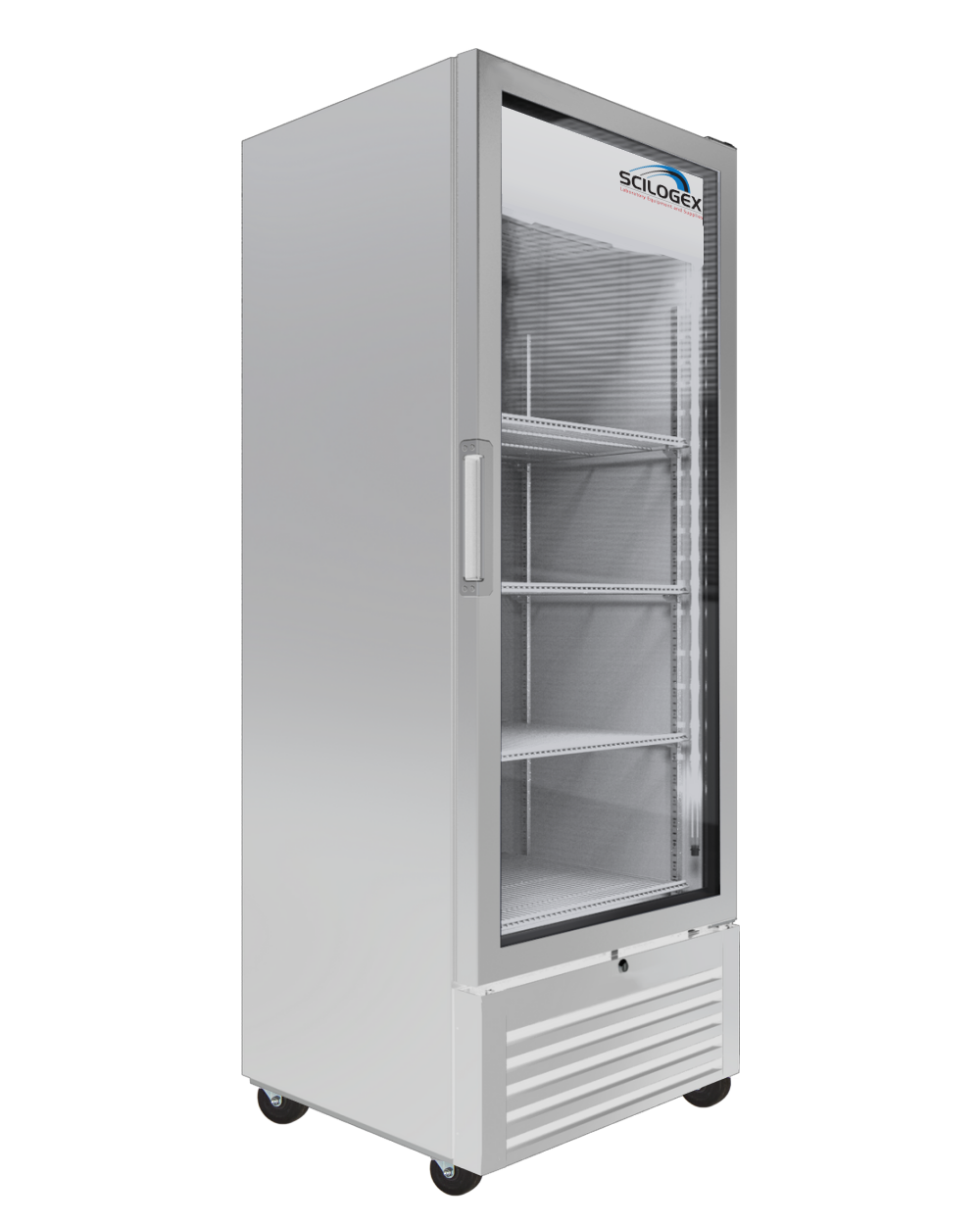

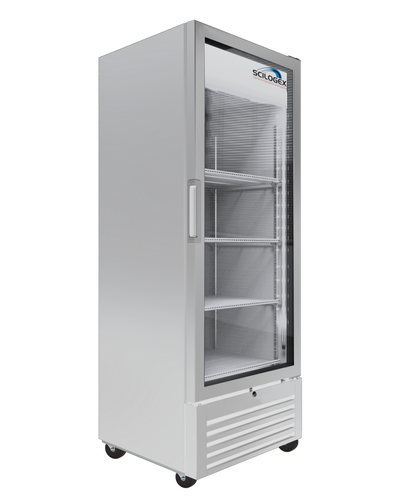

DH4-12GD 12 Cu. Ft. 340 Liters 24" x 24" x 73" 20.75" x 21" x 45.75" 60 x 60 x 185 52 x 53 x 116
DH4-15GD 15 Cu. Ft. 544 Liters 29.5" x 26.25" x 81" 25.5"x21.25"x50.5" 74 x 66 x 205 64 x 53 x 125
DH4-23GD 23 Cu. Ft. 650 Liters 27" x 32" x 81" 24" x 28.5" x55" 68 x 81 x 206 61 x 72 x 140

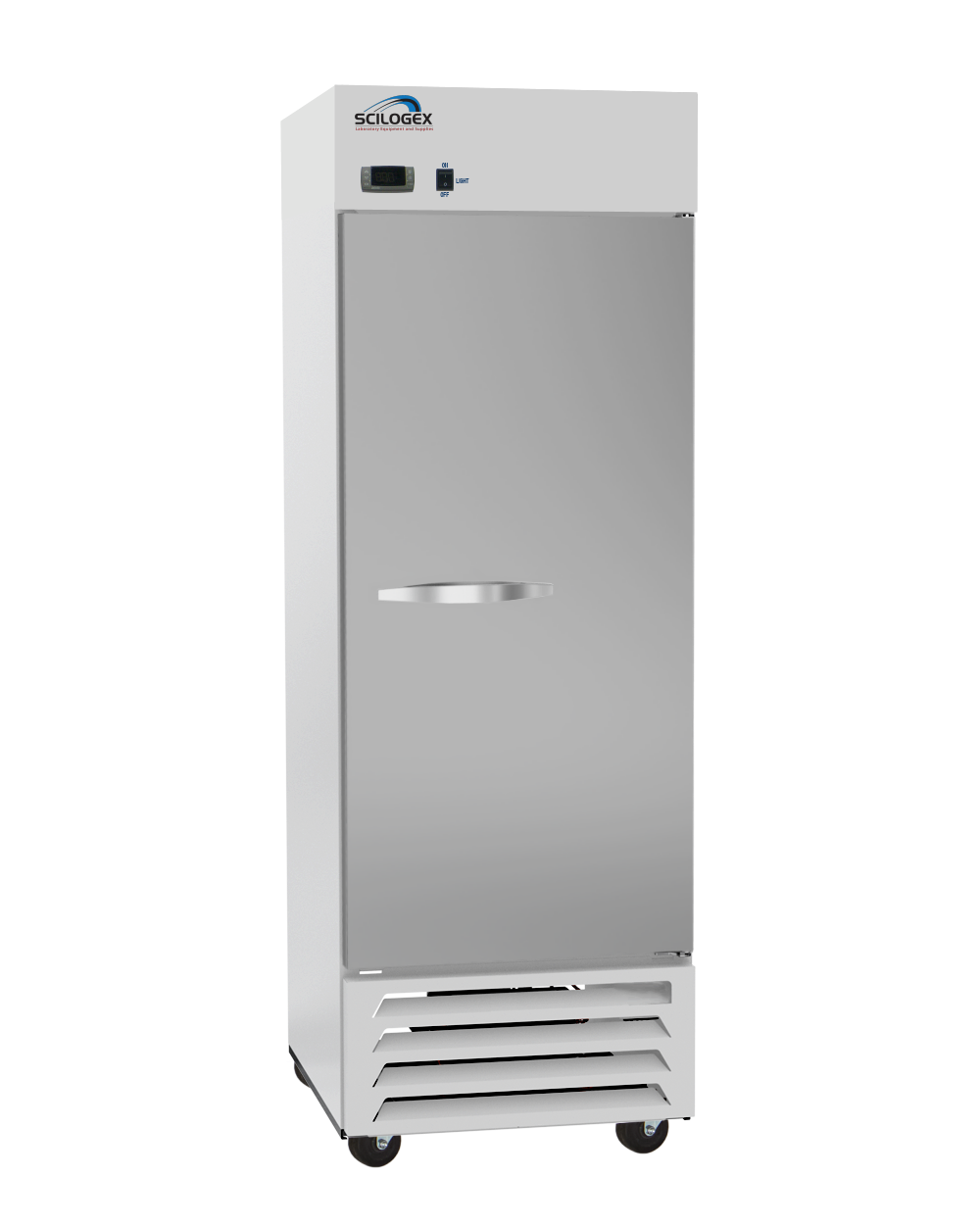

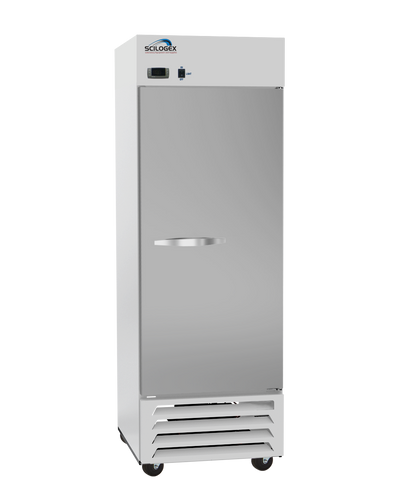

DH4-23SD 2°C to 8°C 23 cu. ft. N/A N/A 27'' x 34'' x 81'' 68 x 86 x 206 24'' x 28.5'' x55'' 61 x 72 x 140

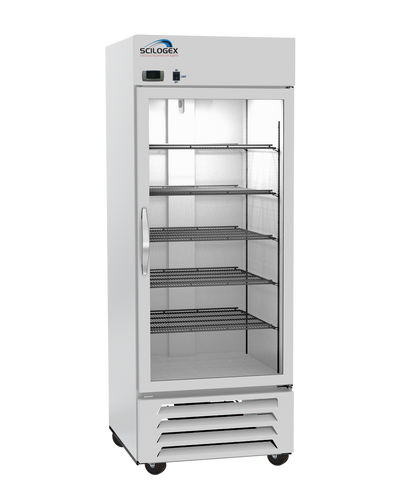

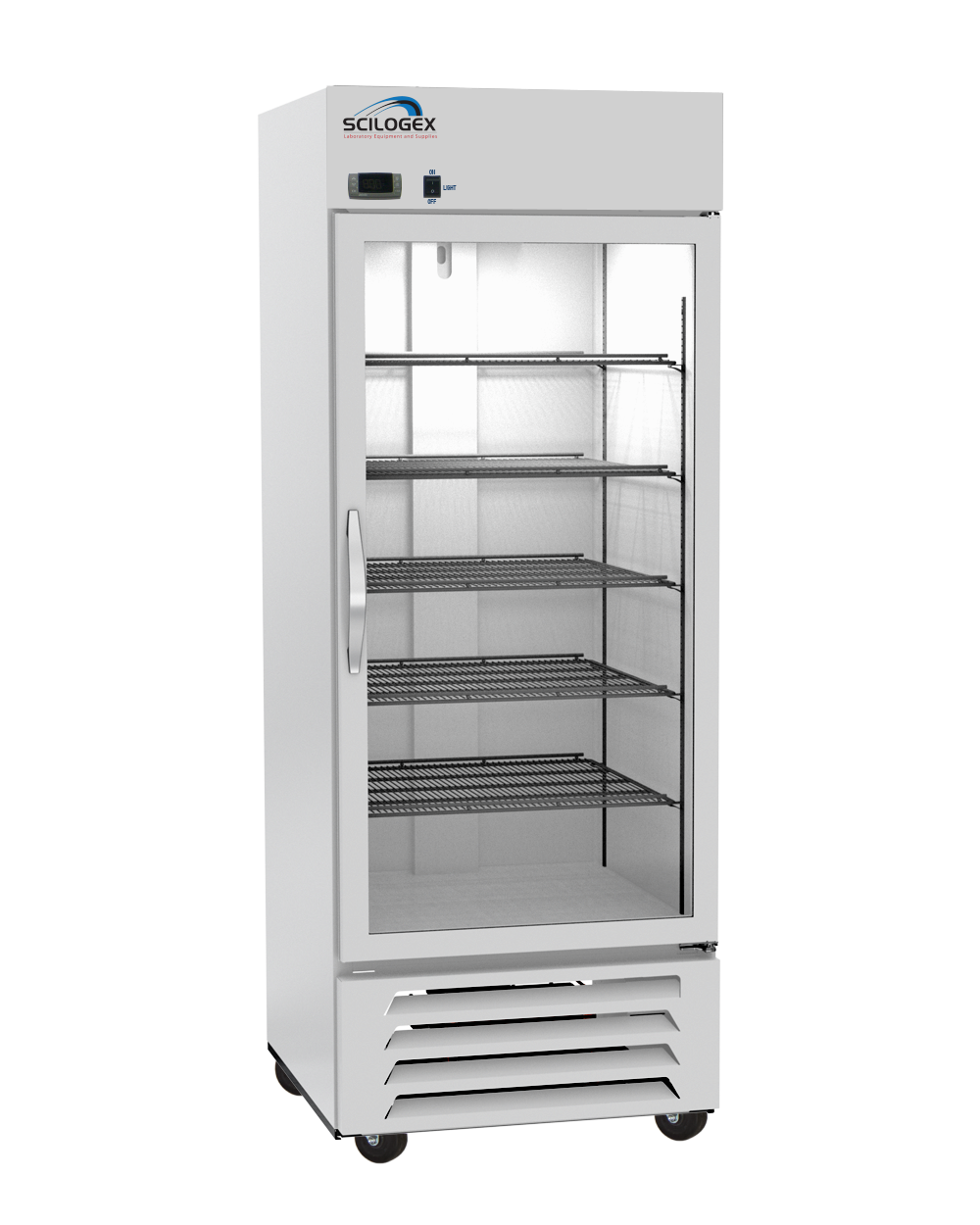

DH4-27GD 27 Cu. Ft. 764 Liters 2°C to 8°C 36°F to 46°F 30" x 32" x 81" 76 x 81 x 206 27" x 28.5" x55" 69 x 72 x 140

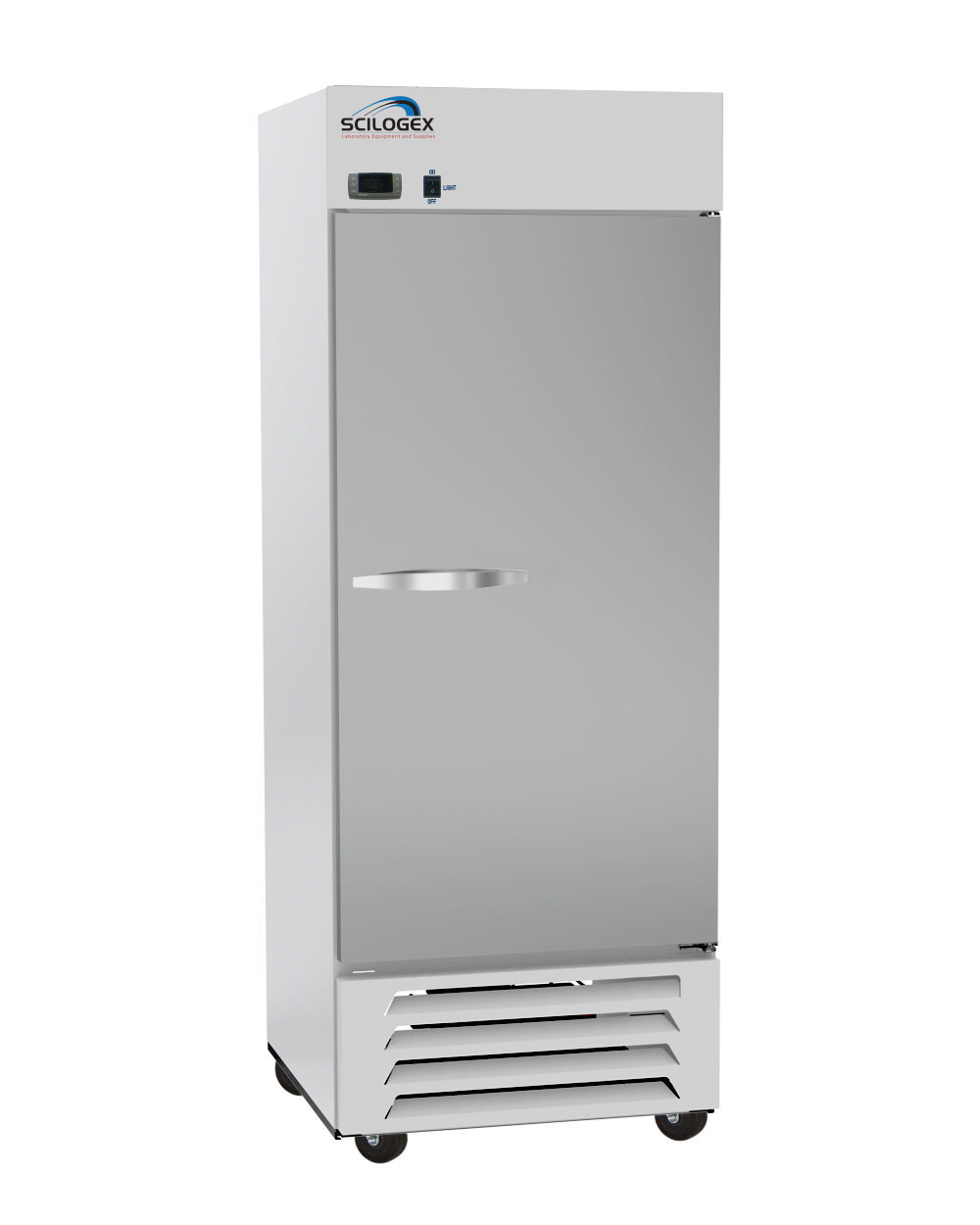

DH4-27SD N/a 27 cubic ft. / 764 liters N/A 30'' x 34'' x 81'' 27'' x 28.5'' x55'' 76 x 86 x 206 69 x 72 x 140

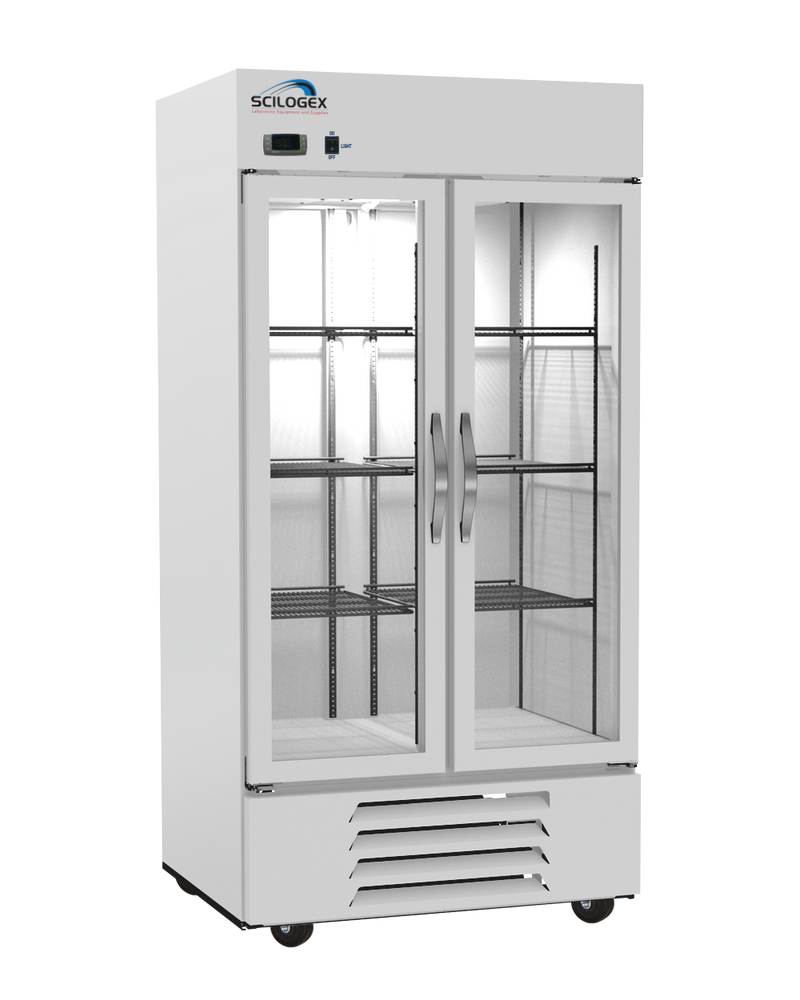

DH4-30GD 30 Cu. Ft. 849 Liters 36°F to 46°F 47.25" x 30.25" x 81" 43" x 22" x 54" 120 x 76 x 205 109 x 55 x 137

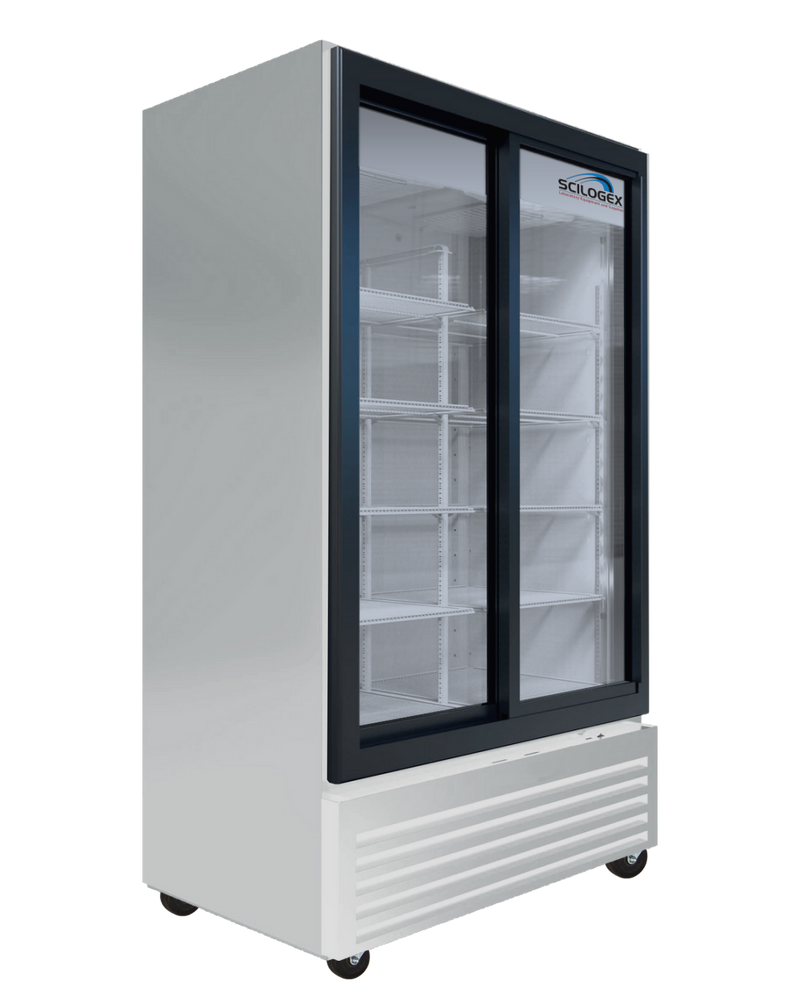

DH4-30SGD 30 Cu. Ft. 849 Liters 47.25" x30.25"x
81"
43" x 22" x 54" 120 x 76 x 205 109 x 55 x 137

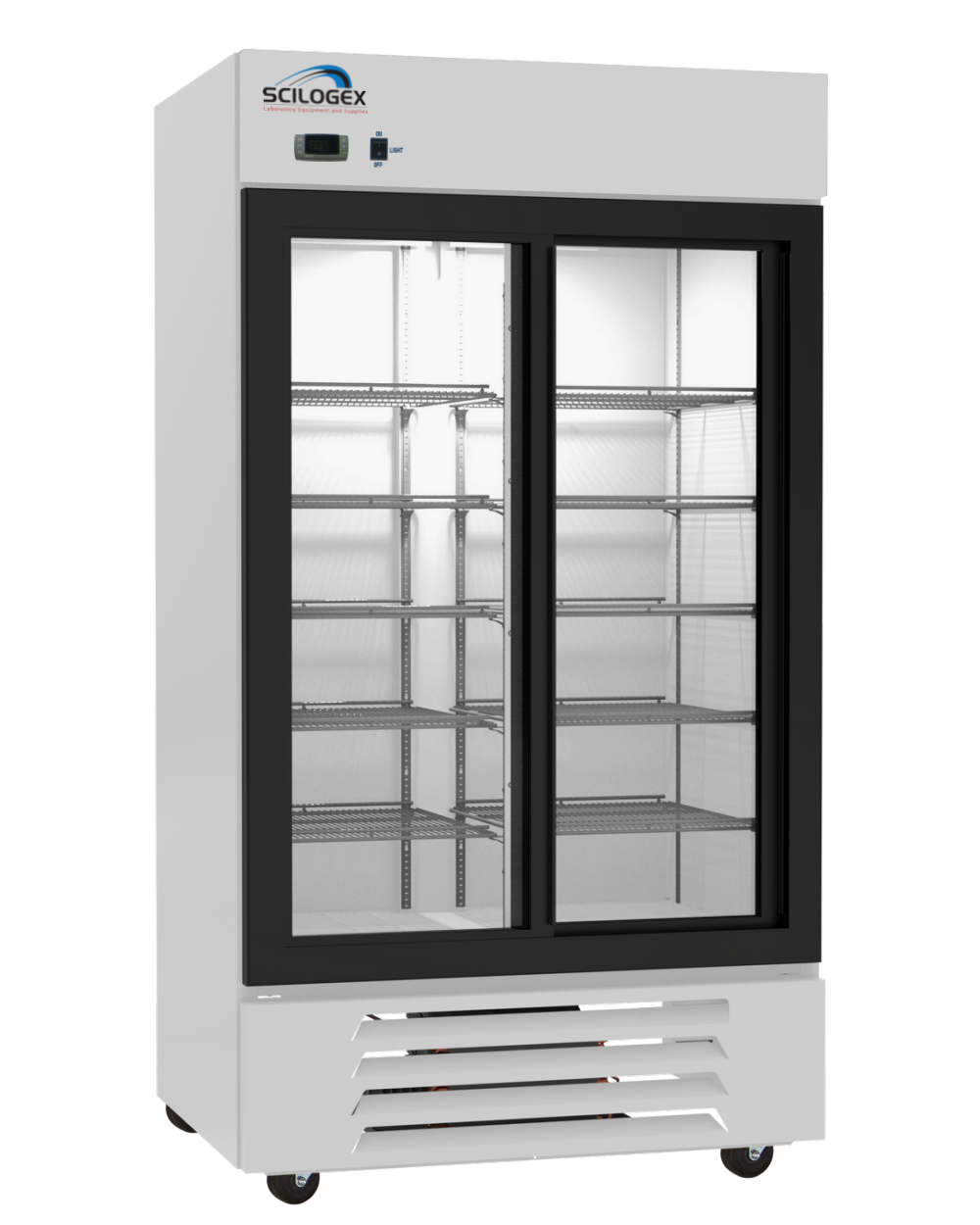

DH4-38SGD 38 Cu. Ft. 1076 Liters 43.5" x 32" x 81" 40.5" x 27" x55" 110 x 81 x 205 102 x 68 x 140
DH4-45SGD 45 Cu. Ft. 1286 Liters 52" x 32" x 81" 49" x 27" x 55" 132 x 81 x 206 125 x 69 x 140
DH4-49GD 49 Cu. Ft. 1387 Liters 52" x 32" x 81" 47.5"x28.5"x55" 132 x 81 x 206 120 x 72 x 140
DH4-49SD N/A 49 cubic ft. / 1387 liters N/A 52'' x 34'' x 81'' 132 x 86 x 206 47.5''x28.5''x55'' 120 x 72 x 140

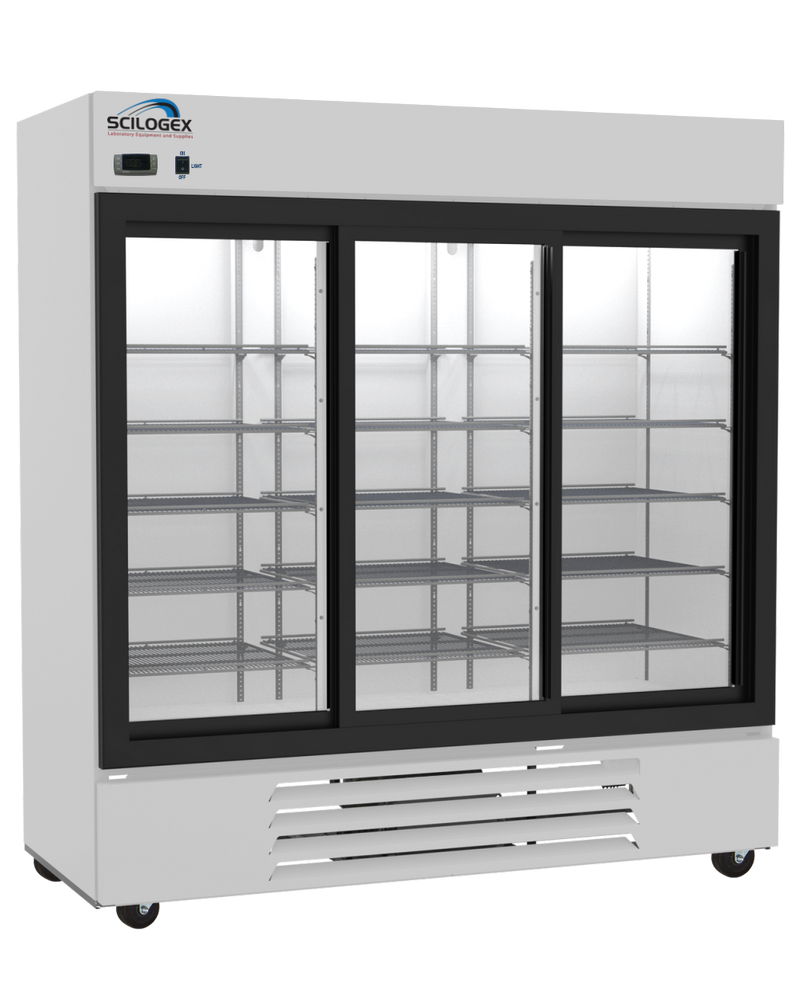

DH4-66SGD 66 Cu. Ft. 1868 Liters 36°F to 46°F 75" x 32" x 81" 72" x 27" x 55" 190 x 81 x 206 182 x 69 x 140
DH4-74GD 72 Cu. Ft. 2095 Liters 75" x 32" x 81" 72" x 27" x 55" 190 x 81 x 206 183 x 69 x 140
DH4-74SD N/A 72 cubic ft. / 2095 liters N/A 75'' x 34'' x 81'' 190 x 86 x 206 72'' x 27'' x 55'' 183 x 69 x 140

Electrical Specifications:

  • Voltages Available: 115 Volts 60 Hertz 1 Phase

  • 2 Running Amps: 15 Amp Dedicated Line
                                2 Running Amps

  • NEMA Configuration: NEMA 5-15

  • Certification(s): UL Listed
                             Energy Star Rated

Control Specifications:

Model Temperature Control Min / Max Temperature Temperature Alarm Alarm Relay
DH4-8GD Digital Display Display and Reset Audible High / Low Alarm Dry Contacts
DH4-12GD
DH4-15GD
DH4-23GD
DH4-23SD
DH4-27GD
DH4-27SD
DH4-30GD
DH4-30SGD
DH4-38SGD
DH4-45SGD
DH4-49GD
DH4-49SD
DH4-66SGD
DH4-74GD
DH4-74SD

General Specifications:

Model DH4-8GD DH4-12GD DH4-15GD DH4-23GD DH4-23SD DH4-27GD DH4-27SD DH4-30GD DH4-30SGD DH4-38SGD DH4-45SGD DH4-49GD DH4-49SD DH4-66SGD DH4-74GD DH4-74SD
Defrost Cycle
Air Circulation Forced Air
Compressor(s) Hermetic Compressor
Refrigeration R600a R290 R600a R290
Insulation Polyurethane

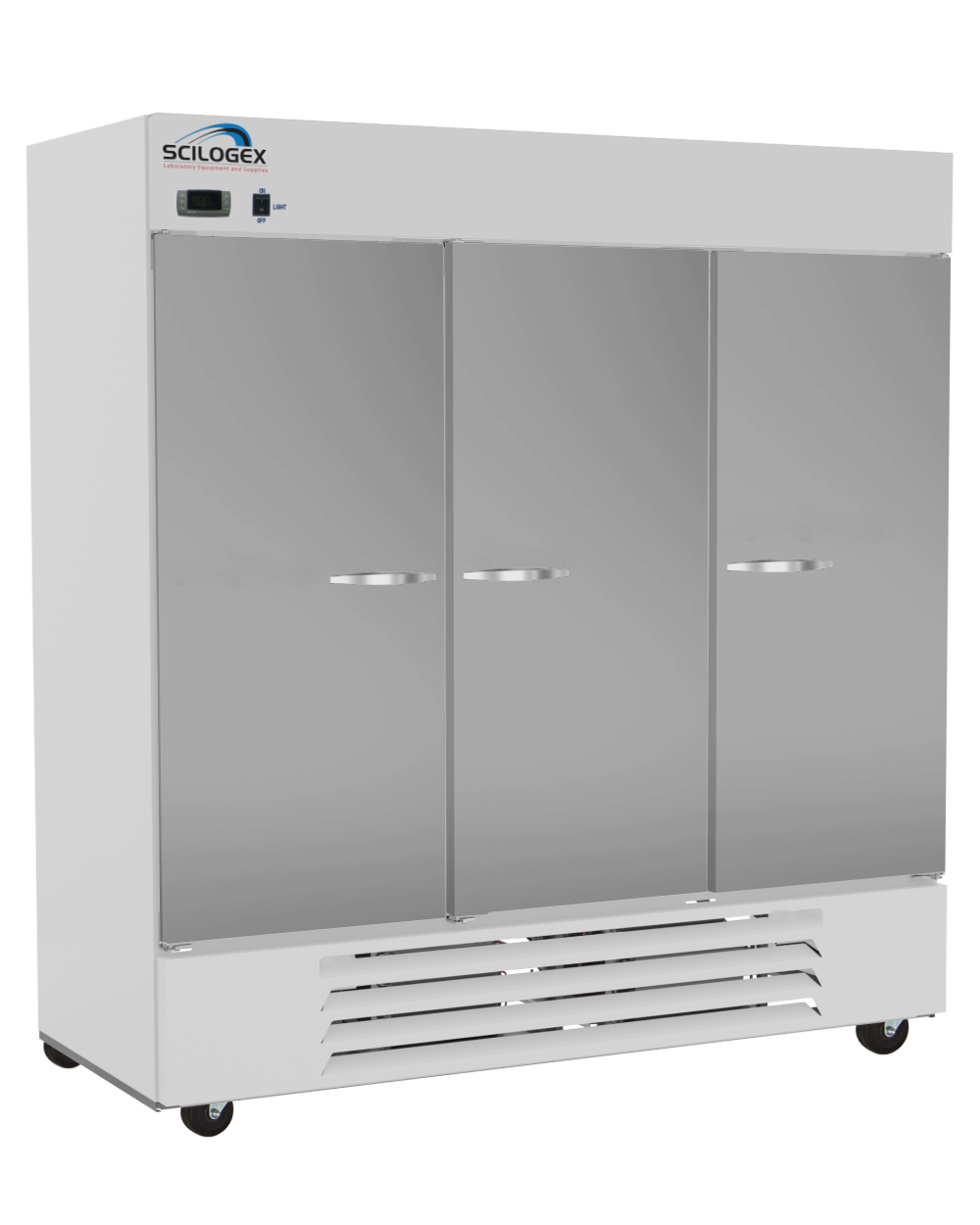

Opening 1 Front Door 2 Front Doors 3 Front Doors
Opening Type Hinged Sliding Hinged Sliding Hinged
Door Material Glass Glass Insula-
ted Steel
Glass Insula-
ted Steel
Glass Insula-
ted Steel
Lockable Door Keyed Lock
Access Porthole 1/2" Diameter
Storage 5 Adjustable Shelves 10 Adjustable Shelves 15 Adjustable Shelves
Exterior Painted Steel
Interior Painted Steel
Interior Lighting Adjustable LED
Casters 4, Locking
Warranty 3 Years Parts and Labor Additional 4 years on Compressor Parts (No Labor)
